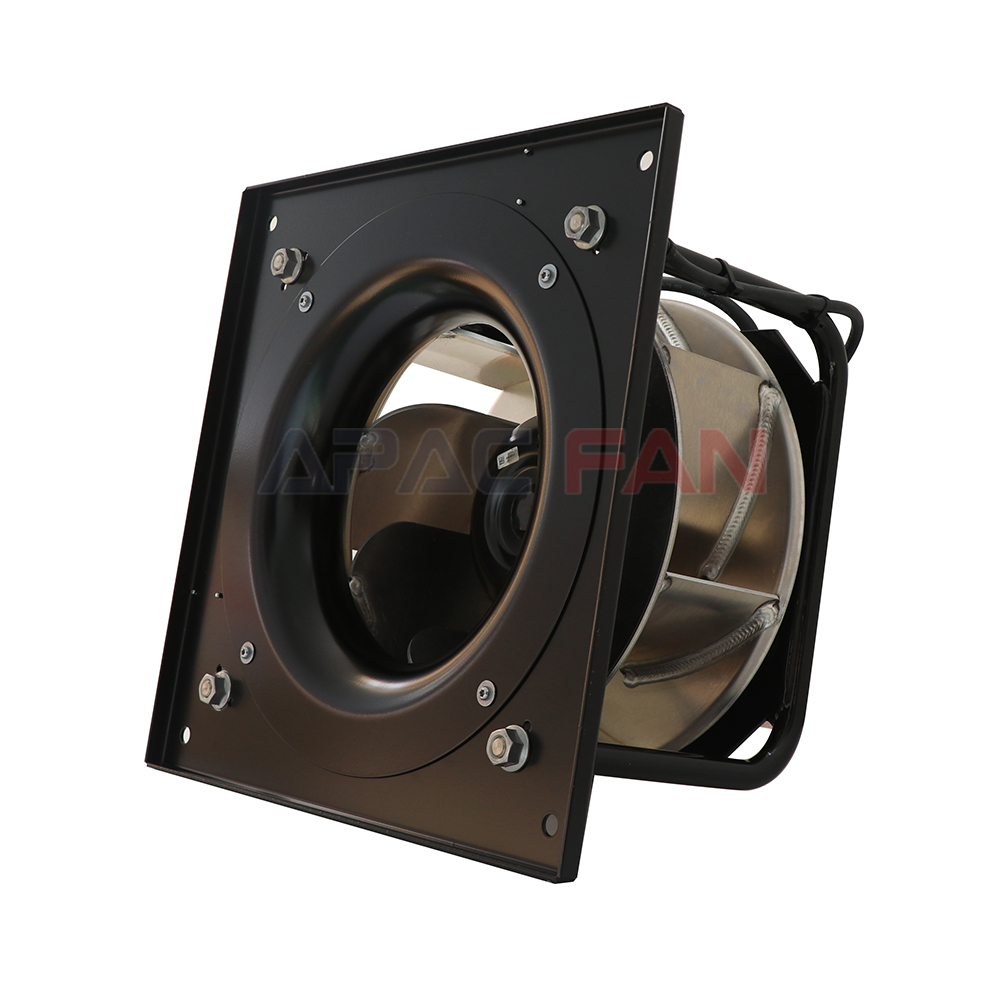

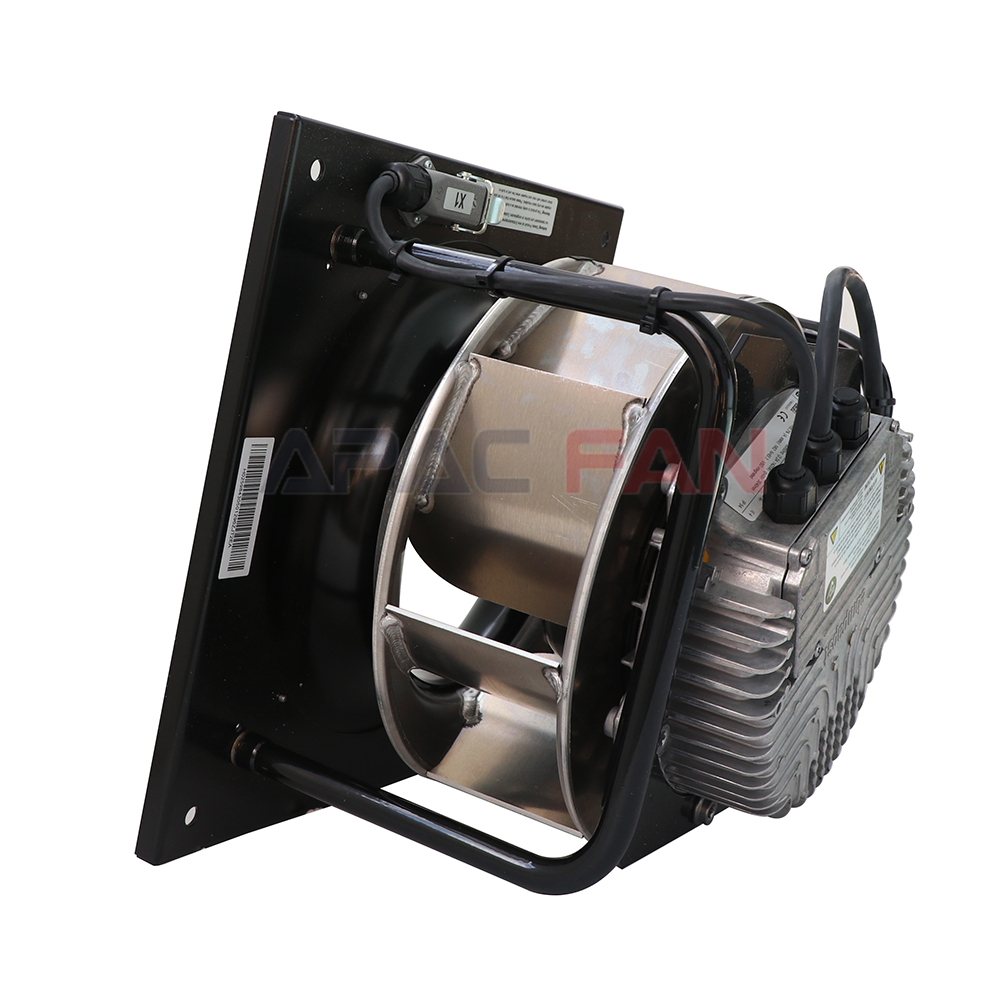

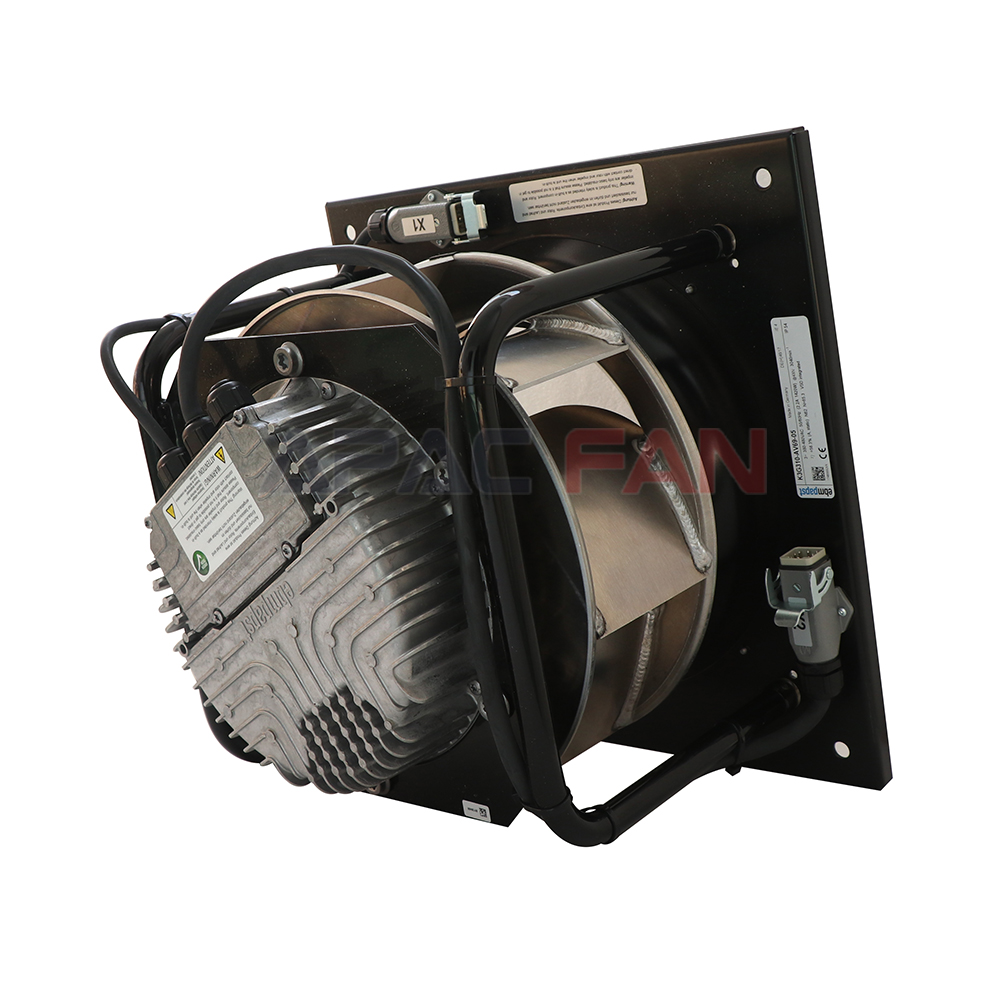

K3G310-PV69-03
Brand：
ebmpapst
Document：
Category：
Centrifugal Fan
Description：
Type: EC Centrifugal Fan
Air output (m³/h):4020
Speed (RPM): 4000
Min. Ambient Temperature: -40 °C
Die-cast Aluminum Housing and Sheet Aluminum Impeller
Air output (m³/h):4020
Speed (RPM): 4000
Min. Ambient Temperature: -40 °C
Die-cast Aluminum Housing and Sheet Aluminum Impeller
Nominal data
Brand：
ebmpapst
Part No.：
K3G310-PV69-03
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
310
Max.Air Flow(m³/h)：
4020
Max.Pressure(Pa)：
1583
Input Power(W)：
3050
Speed(rpm)：
4000
Noise(db)：
100
Description

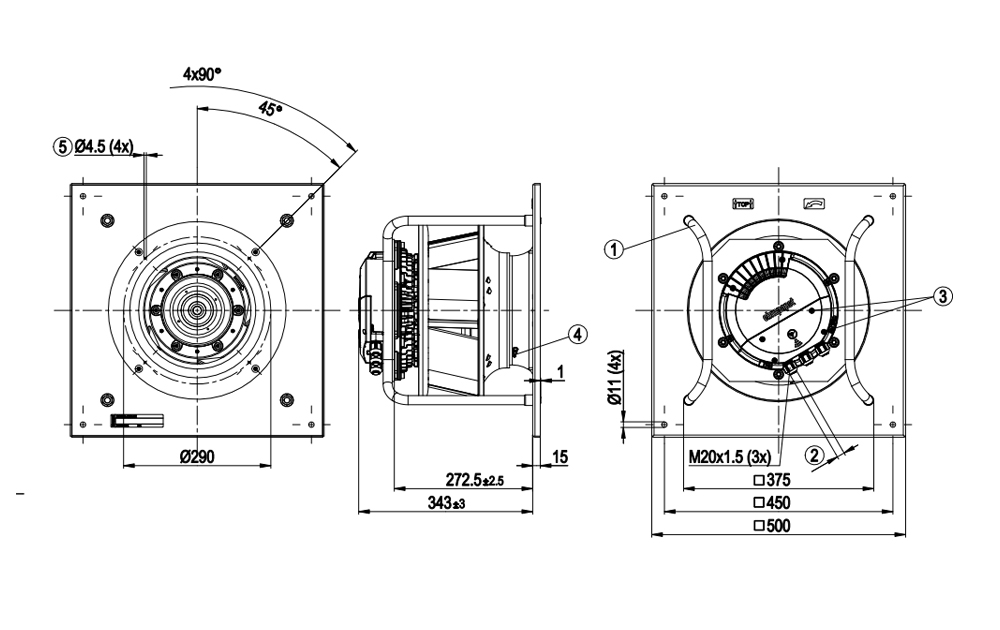

K3G310-PV69-03 ebmpapst Specification drawing：
