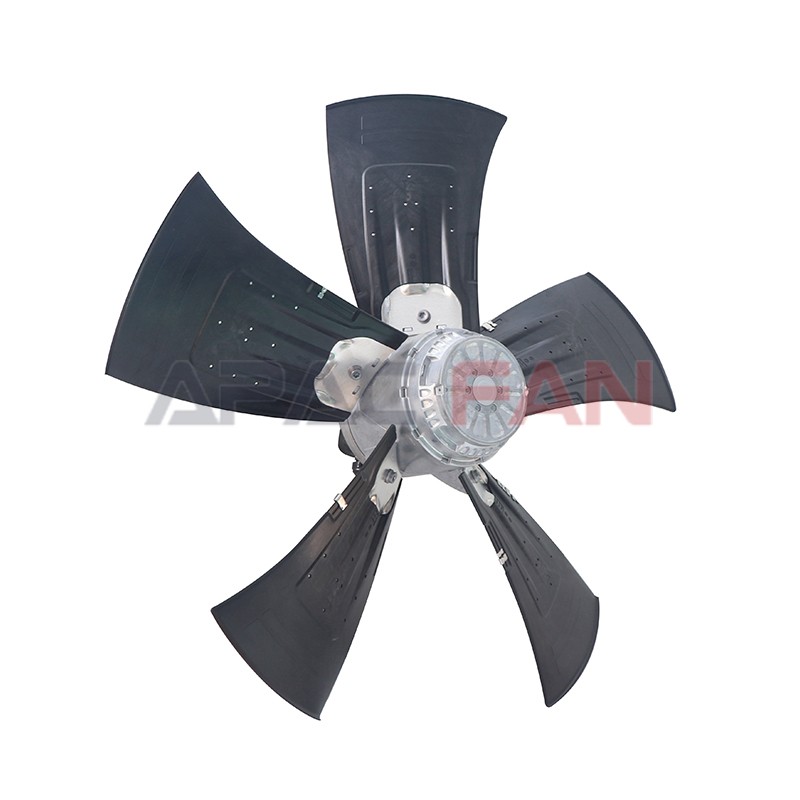

A6D800-AJ01-01 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

A6D800AJ0101.PDF

Category：

Axial Fan

Description：

Ebmpapst Axial Fan Features:
Stable Operation with Controlled Noise Levels.
Robust Construction with High Durability.
Easy Maintenance with High Cost-Performance Ratio.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A6D800-AJ01-01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

800

Max.Air Flow(m³/h)：

24530

Max.Pressure(Pa)：

180

Input Power(W)：

2000

Speed(rpm)：

895

Noise(db)：

Description

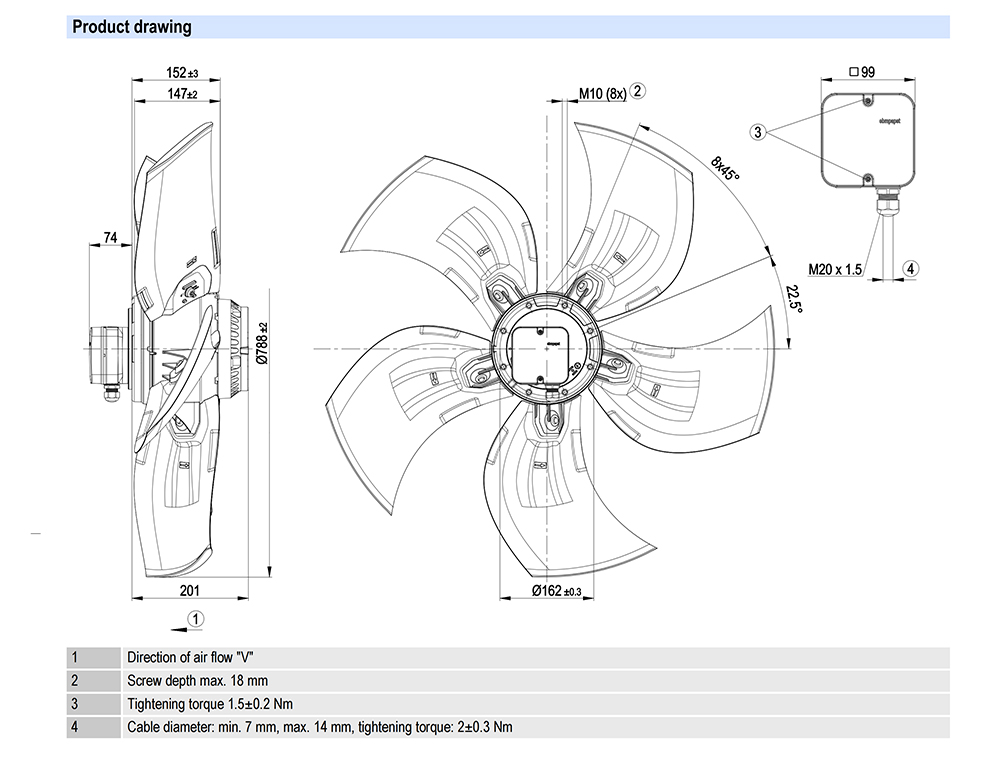

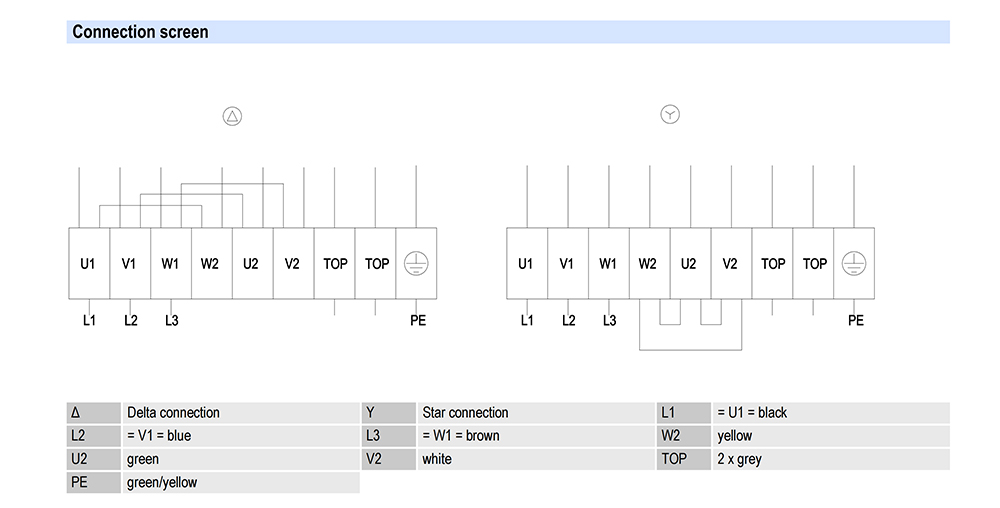

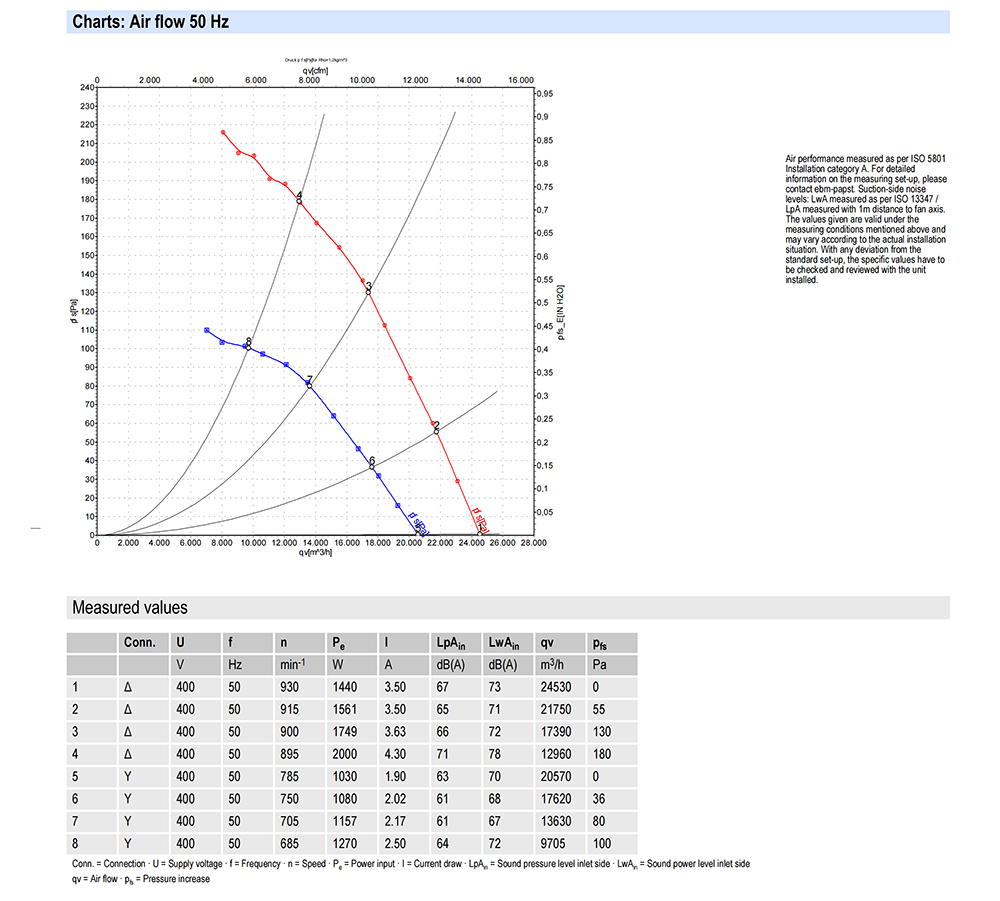

A6D800-AJ01-01 Ebm-papst Specification drawing：
