Axial Fan

All axial fans from ZIEHL-ABEGG have been developed to meet the highest requirements.The axial fans are not only particularly compact and therefore very flexible to use, but also provide excellent efficiency and help to keep operating costs at a low level for the long term. With ZIEHL-ABEGG you get both powerful, robust and particularly resilient AC fans as well as quiet, efficient and environmentally friendly EC fans.

Brand Part No. Type Voltage
(V) Size
(mm) Airflow
(m³/h) Pressure
(Max/Pa) Power
(W) Speed
(rpm) Noise
(dB)

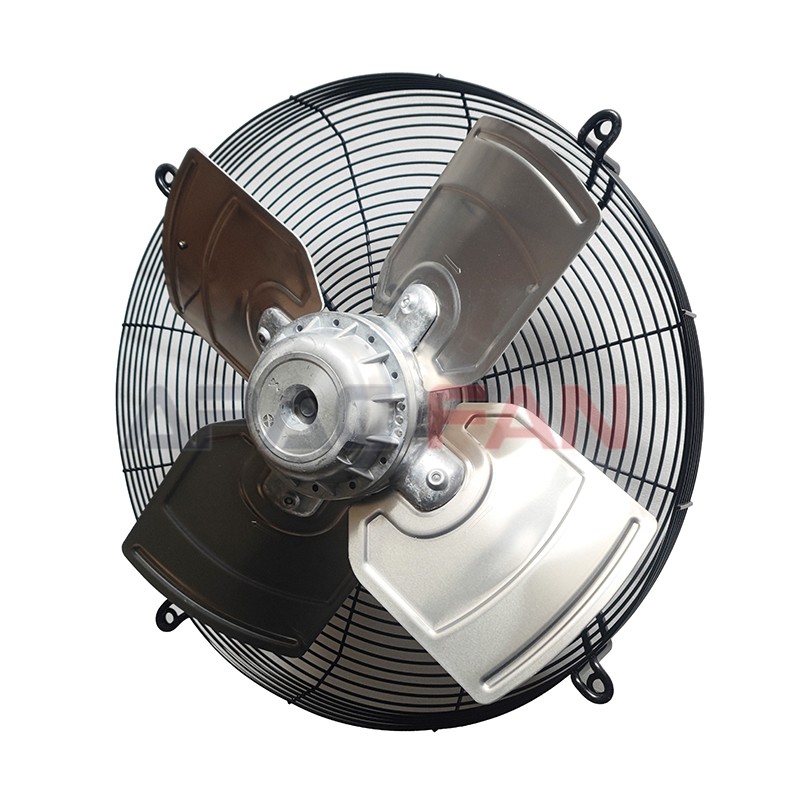

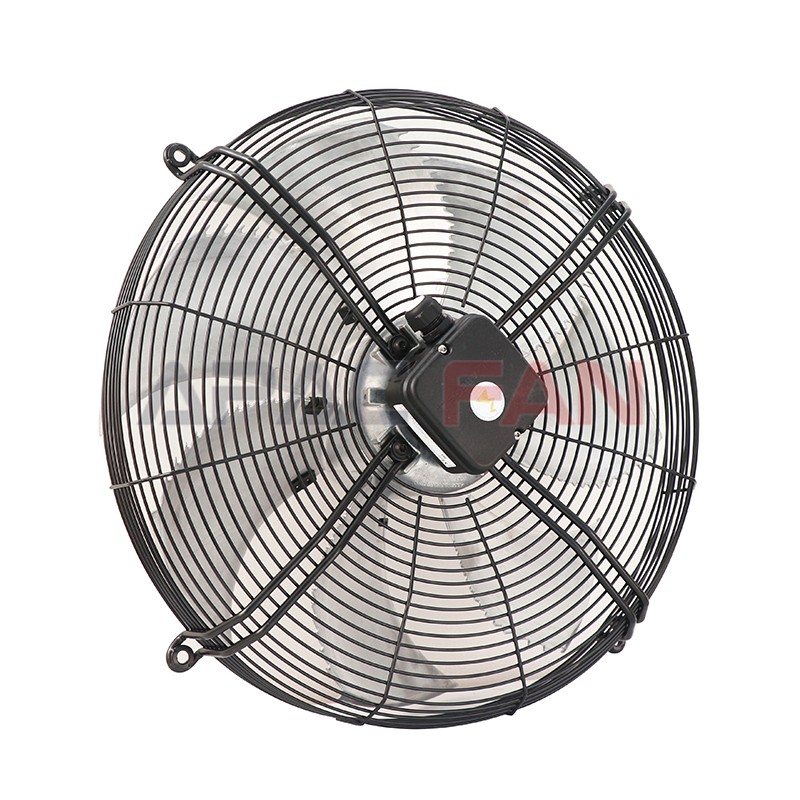

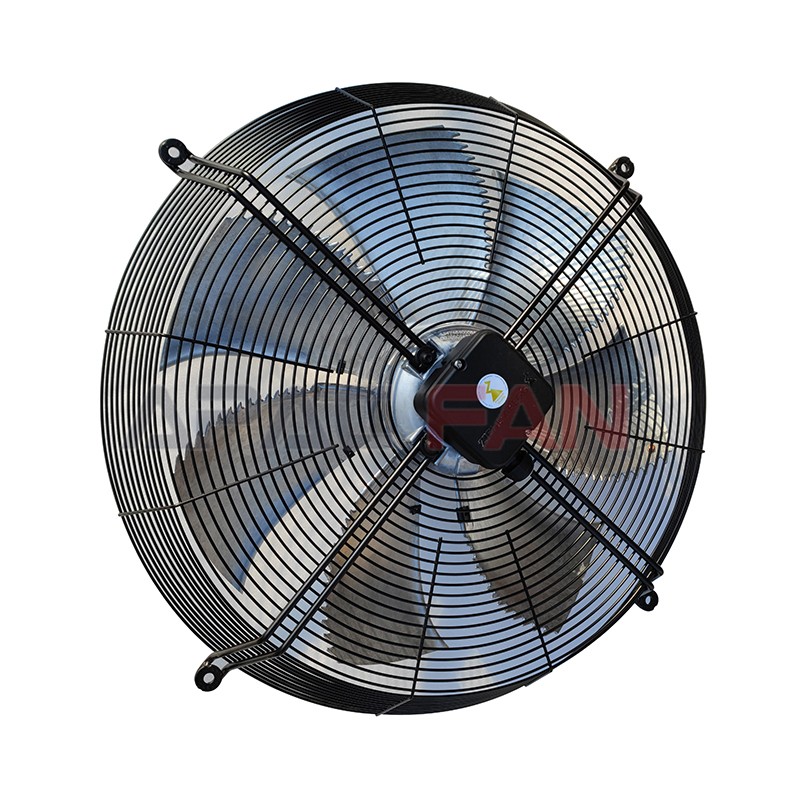

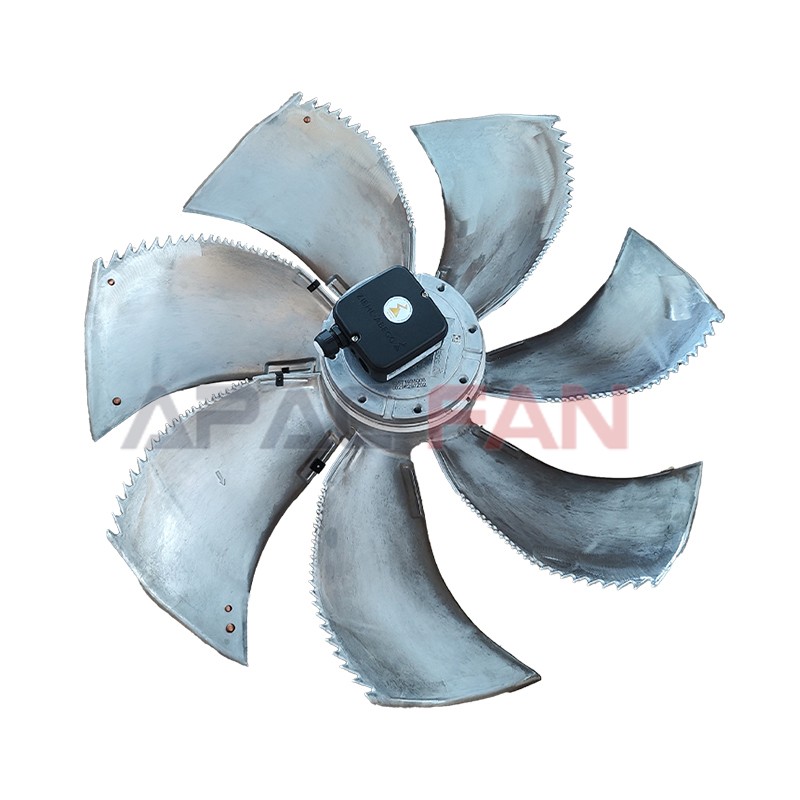

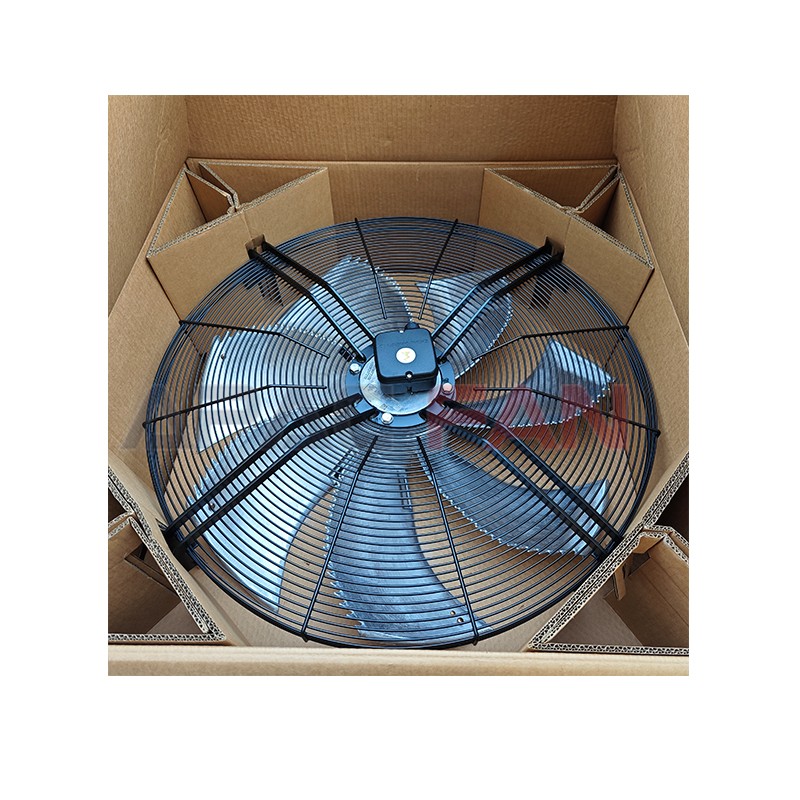

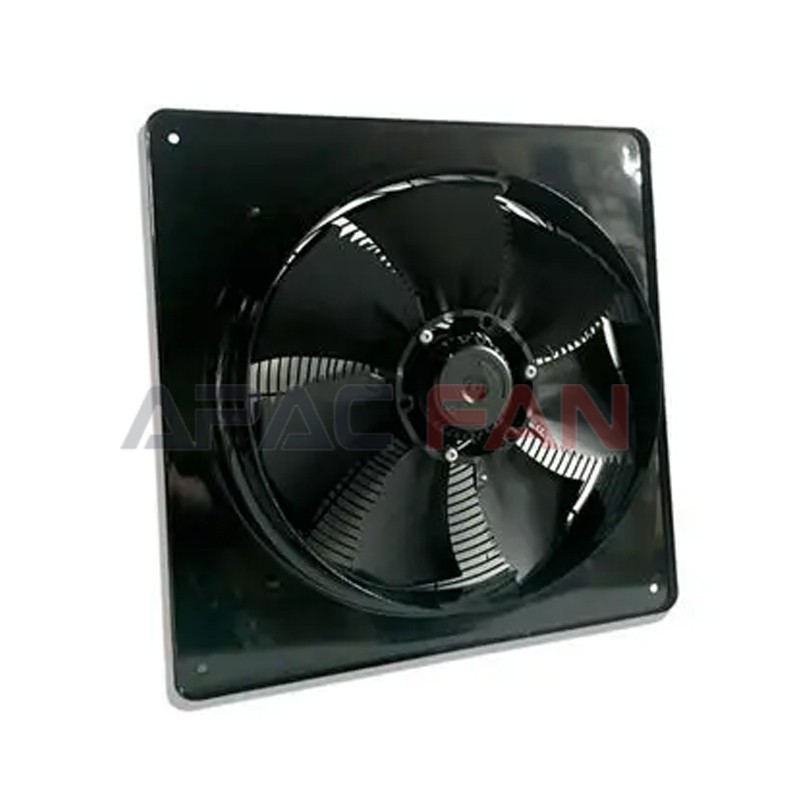

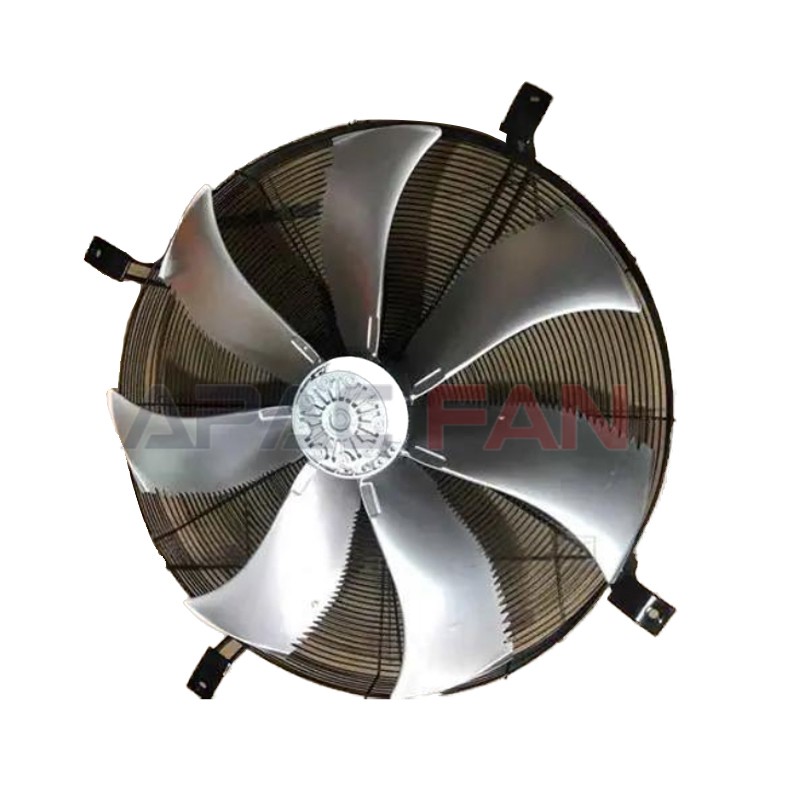

ZIEHL-ABEGG FB045-VDK.4C.V4P 210540 Axial Fan 400 450 5400 85 450 1360

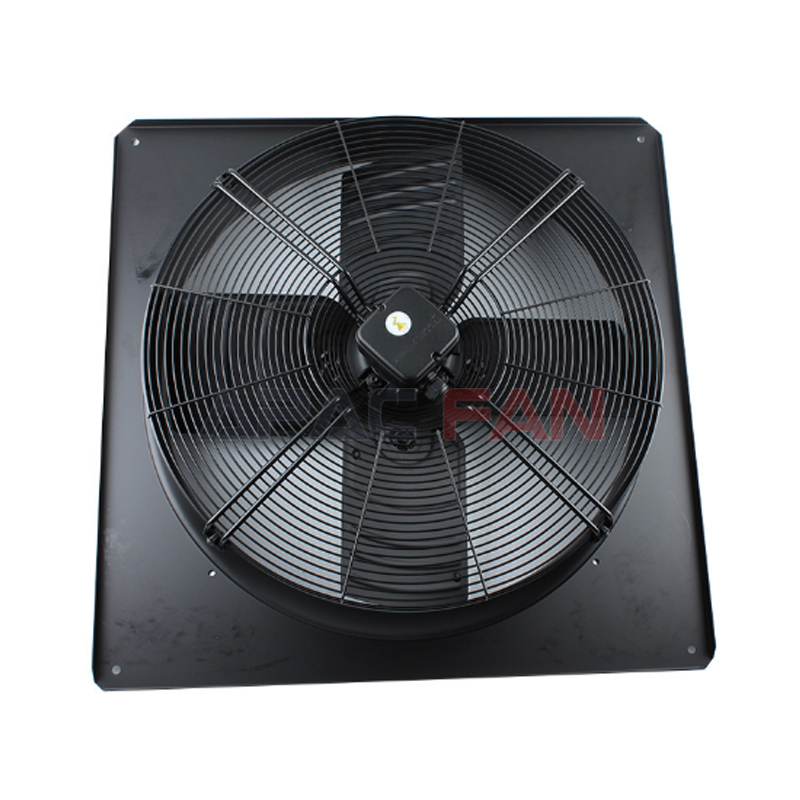

ZIEHL-ABEGG FN071-SDK.6F.V7P1 141773 Axial Fan 400 710 13800 153 940 900

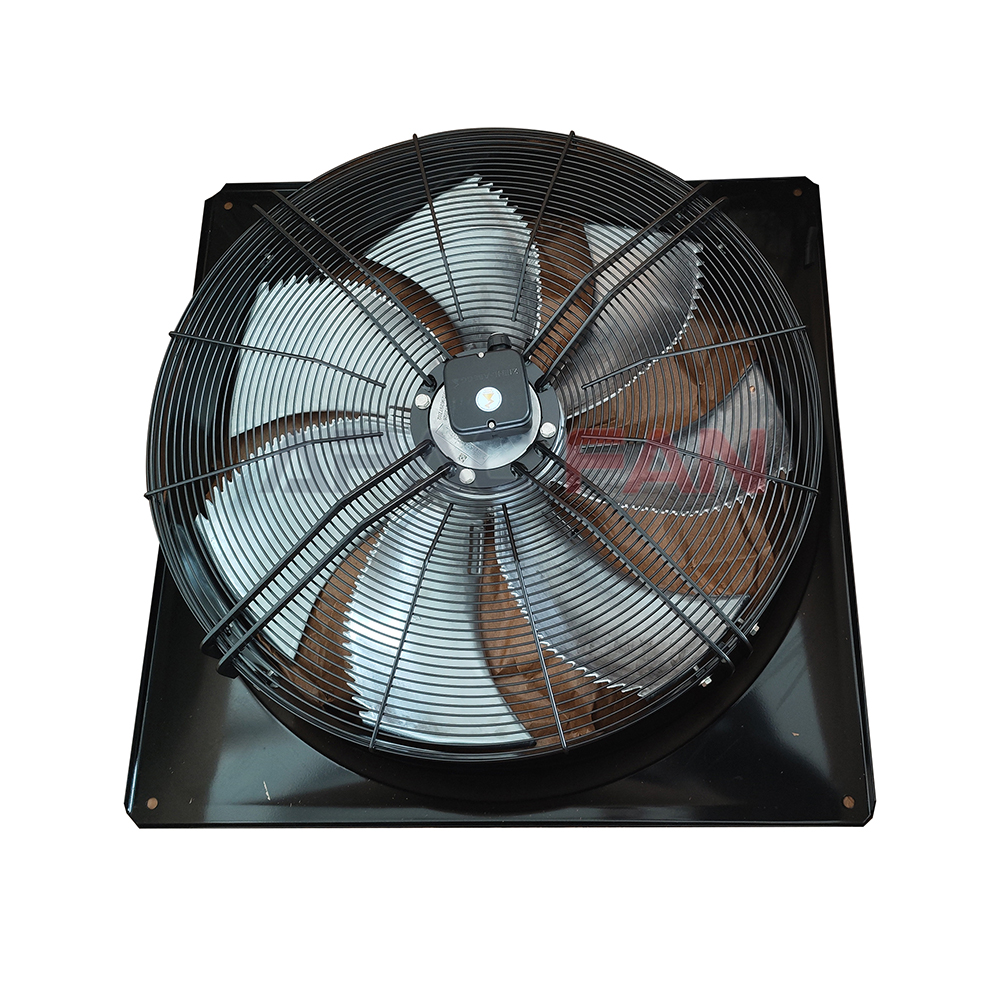

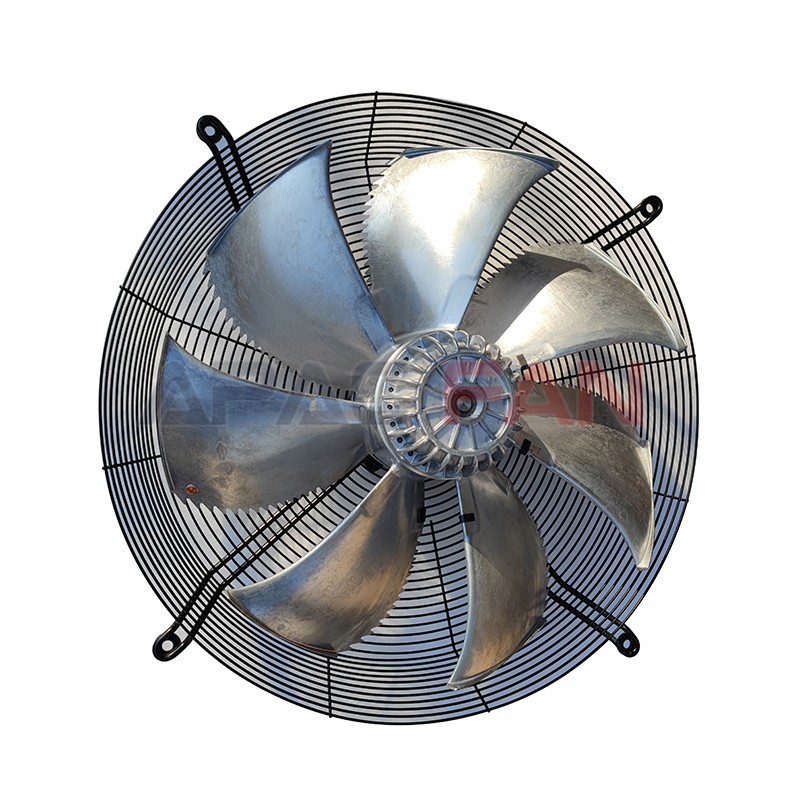

ZIEHL-ABEGG FN080-SDQ.6N.V7P5 168786 Axial Fan 400 800 22500 153 1900 870

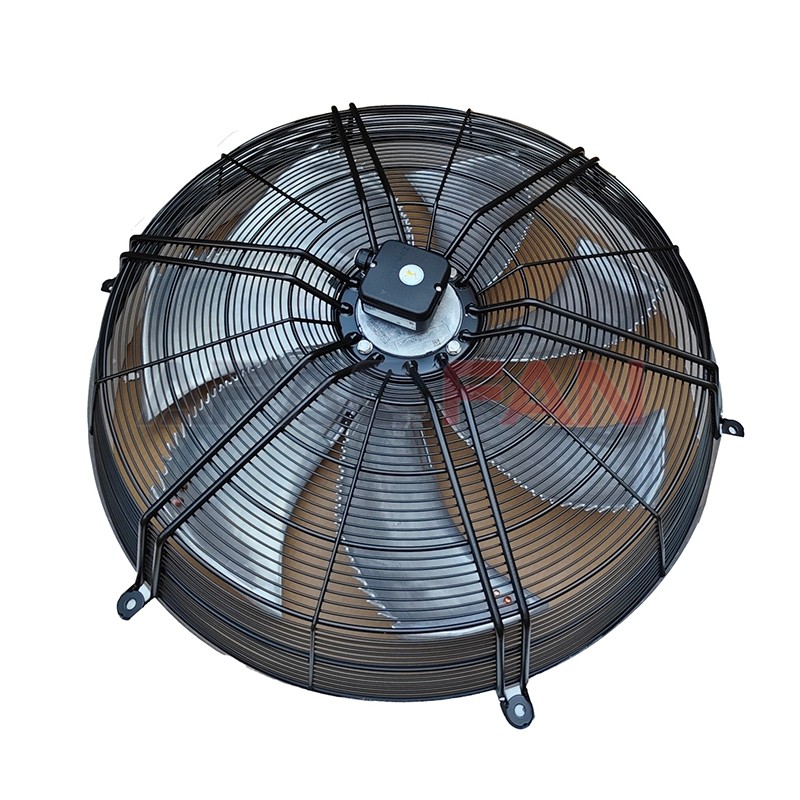

ZIEHL-ABEGG FN080-ADK.6N.V7P5 57206482 Axial Fan 400 800 18800 200 1050 700

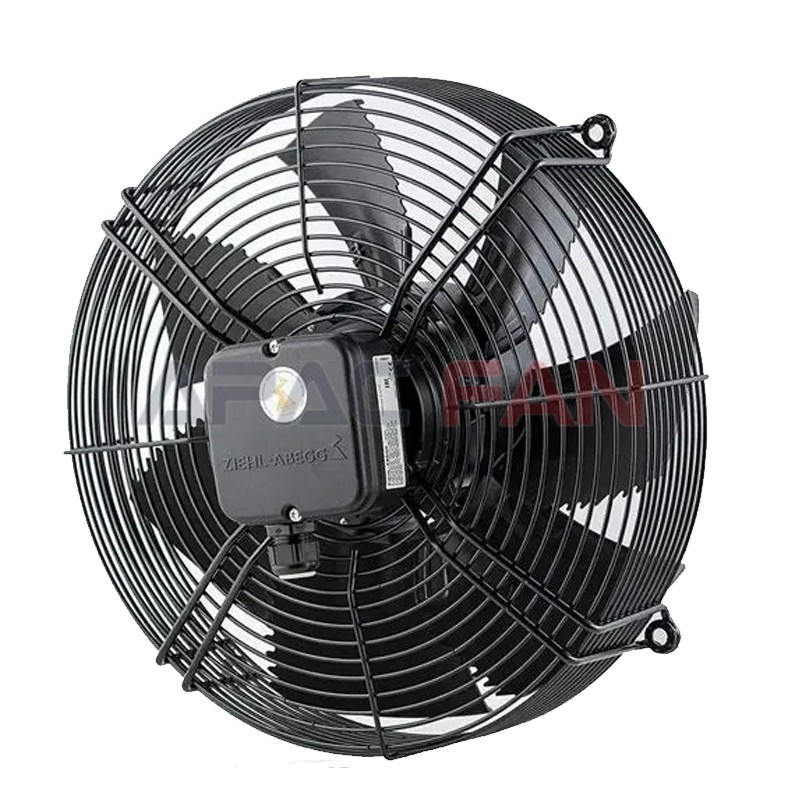

ZIEHL-ABEGG FB045-4EK.4F.V4P 209023 Axial Fan 230 450 5700 116 390 1320
