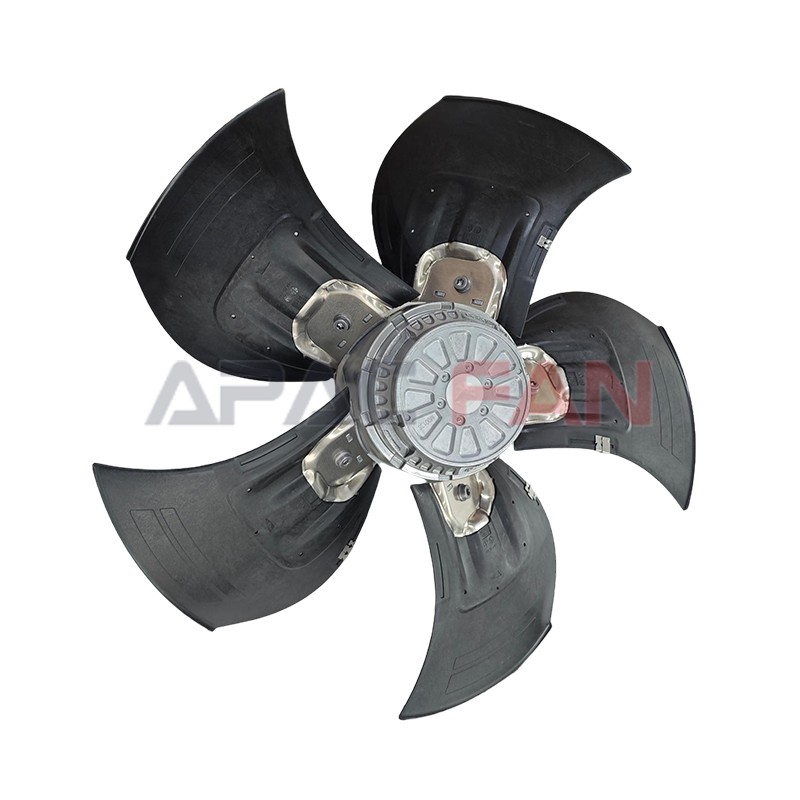

Ebm-papst A8D630-AN01-01 Condenser High-power Axial Fan | High-efficiency AC Drive
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
A8D630-AN01-01
Fan Type：
Axial Fan
Rated Voltage(V)：
480
Size(mm)：
630
Max.Air Flow(m³/h)：
9830
Max.Pressure(Pa)：
80
Input Power(W)：
490
Speed(rpm)：
820
Noise(db)：
67
Description

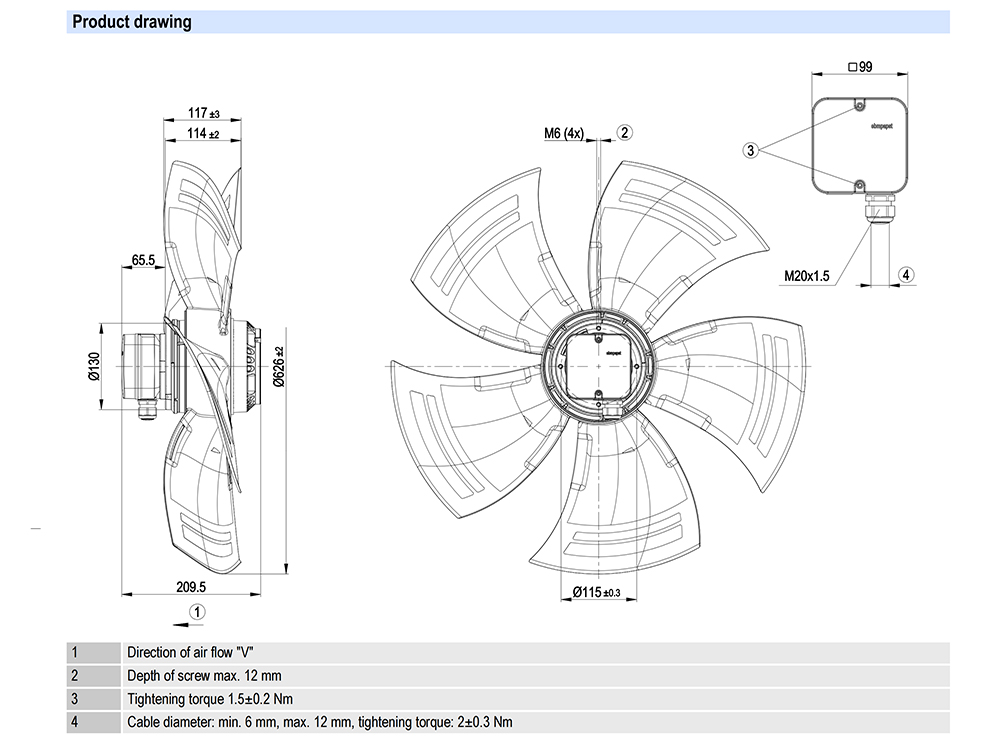

A8D630-AN01-01 Ebm-papst Specification drawing：
