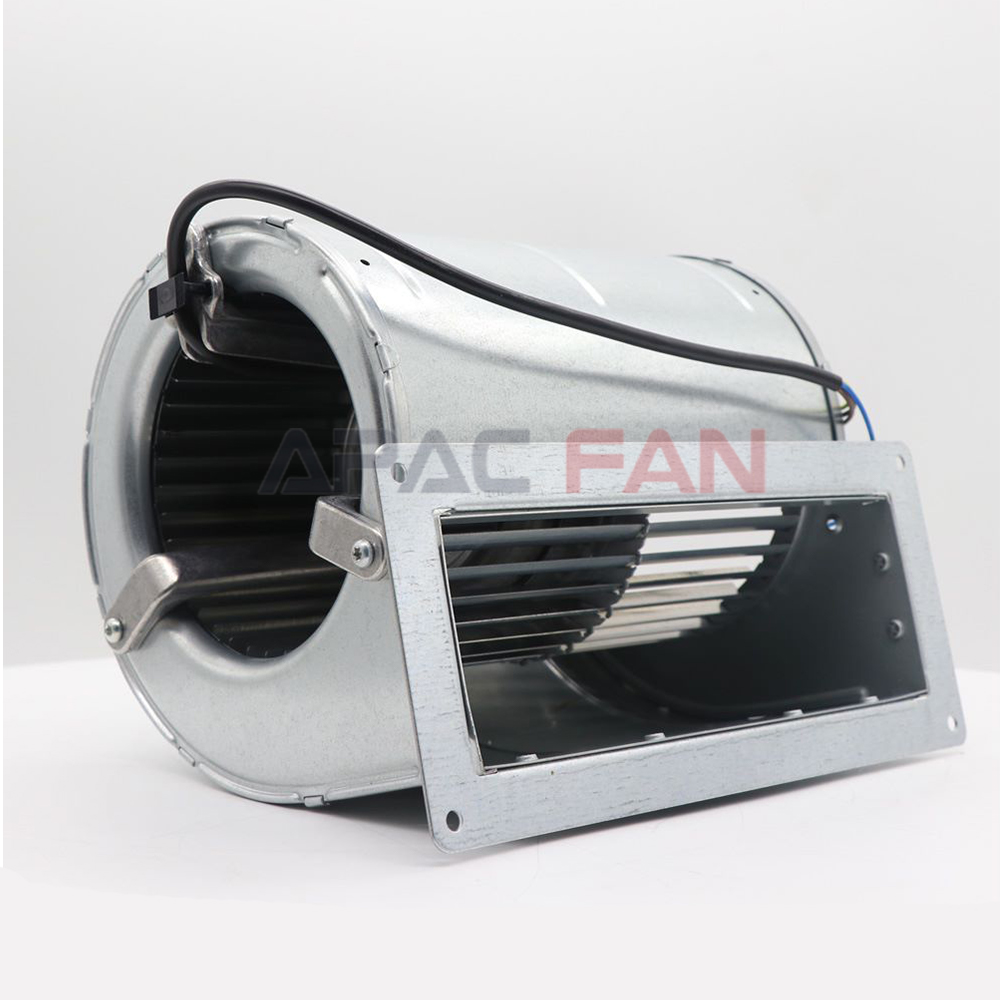

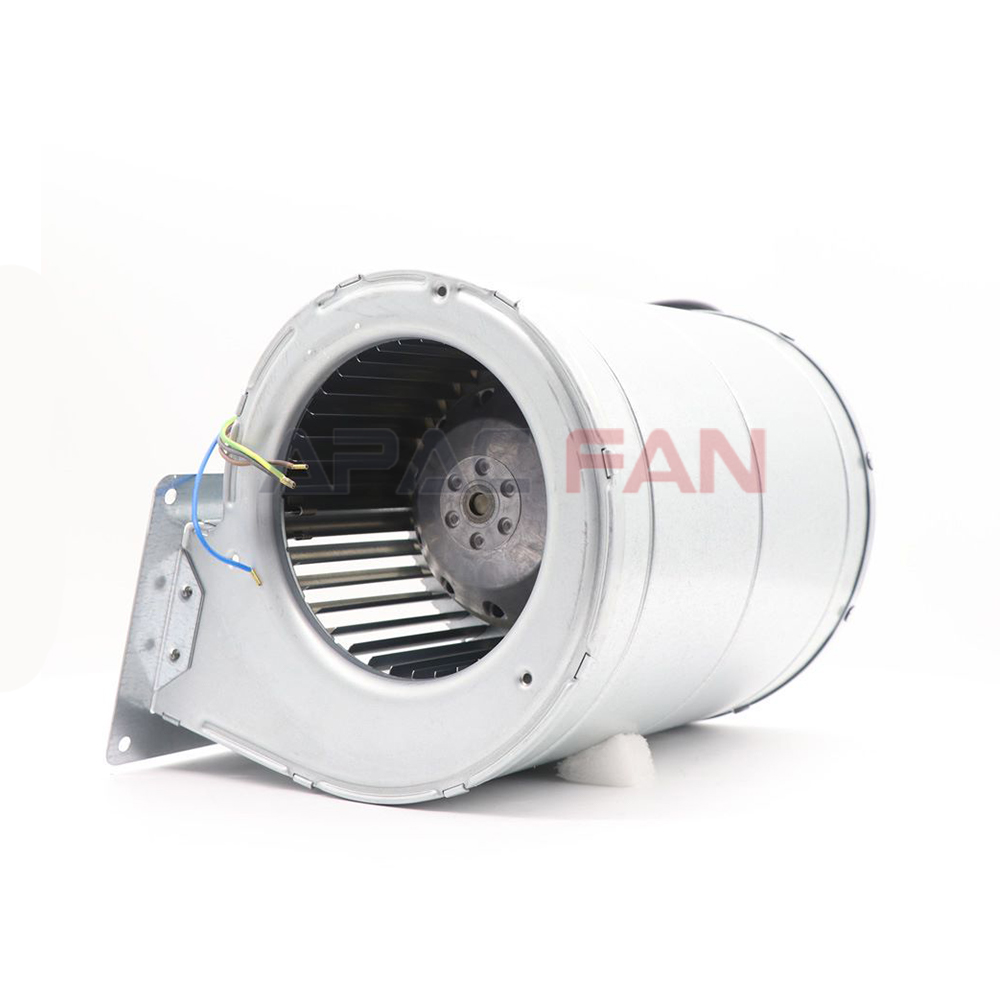

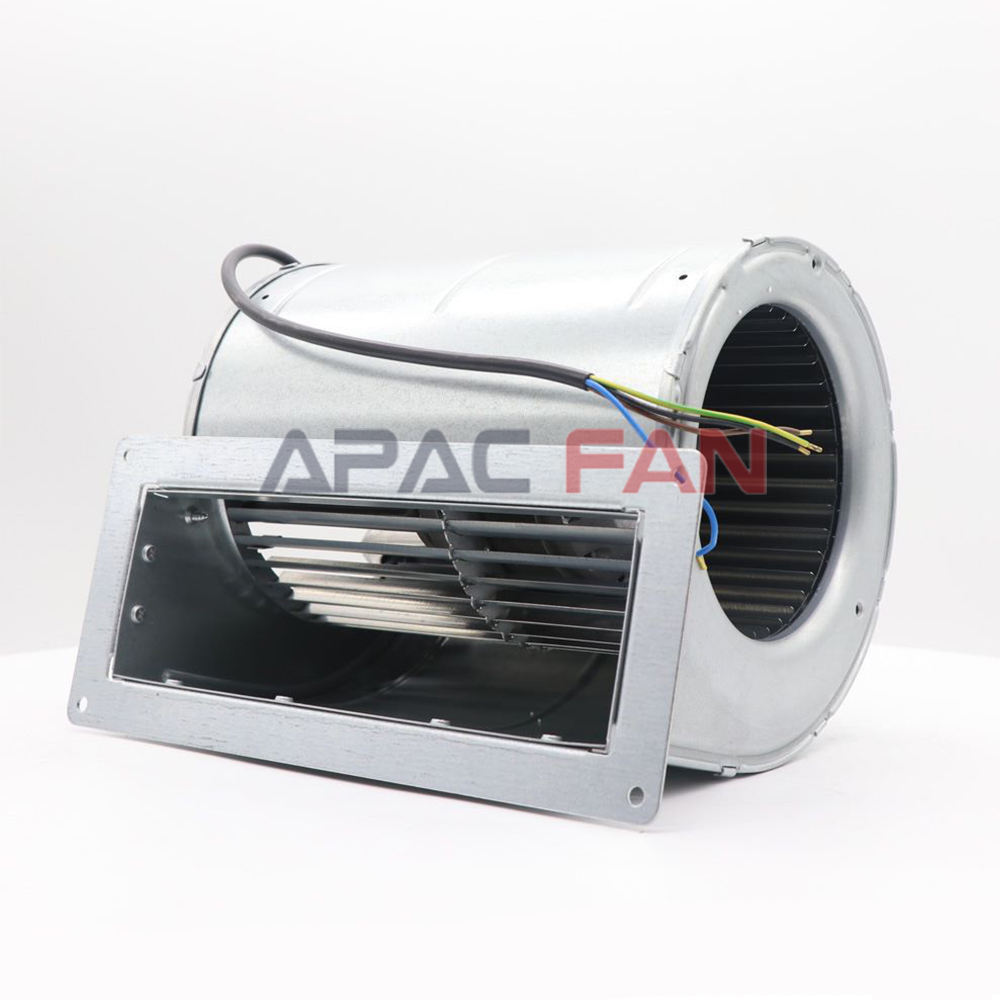

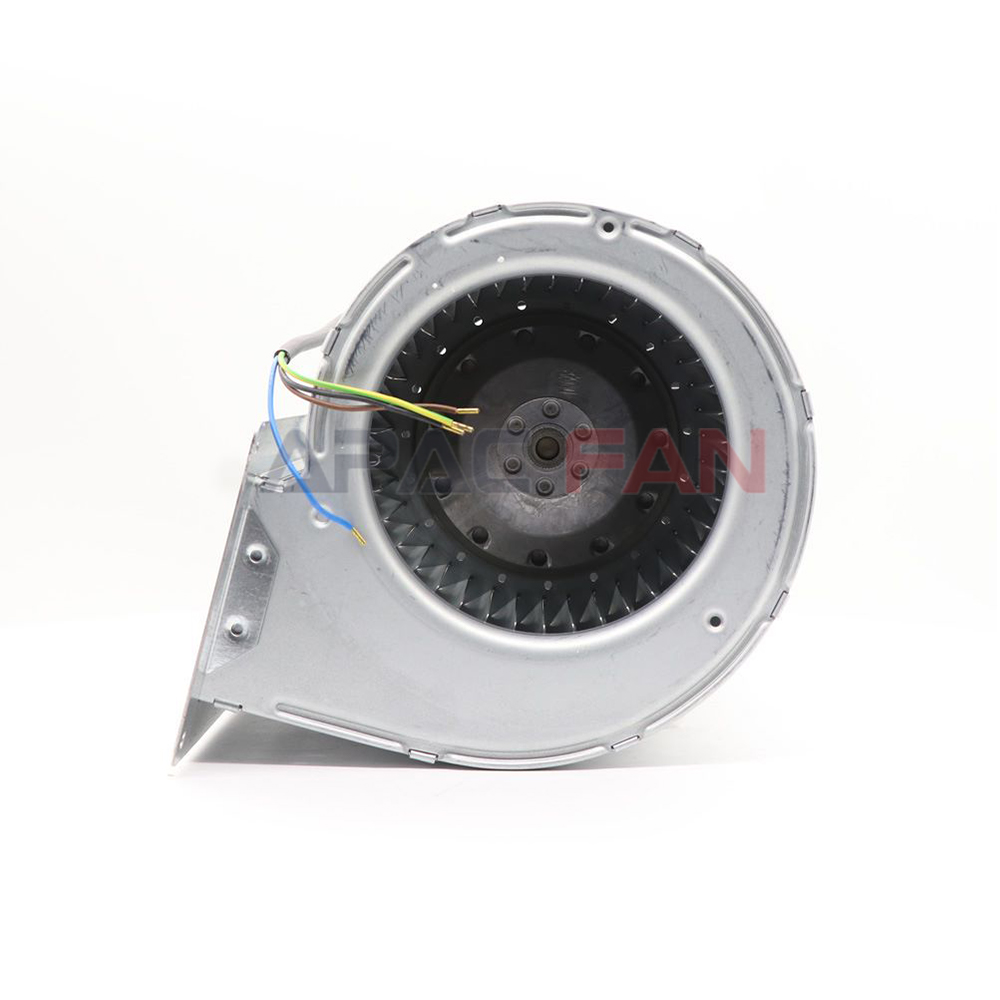

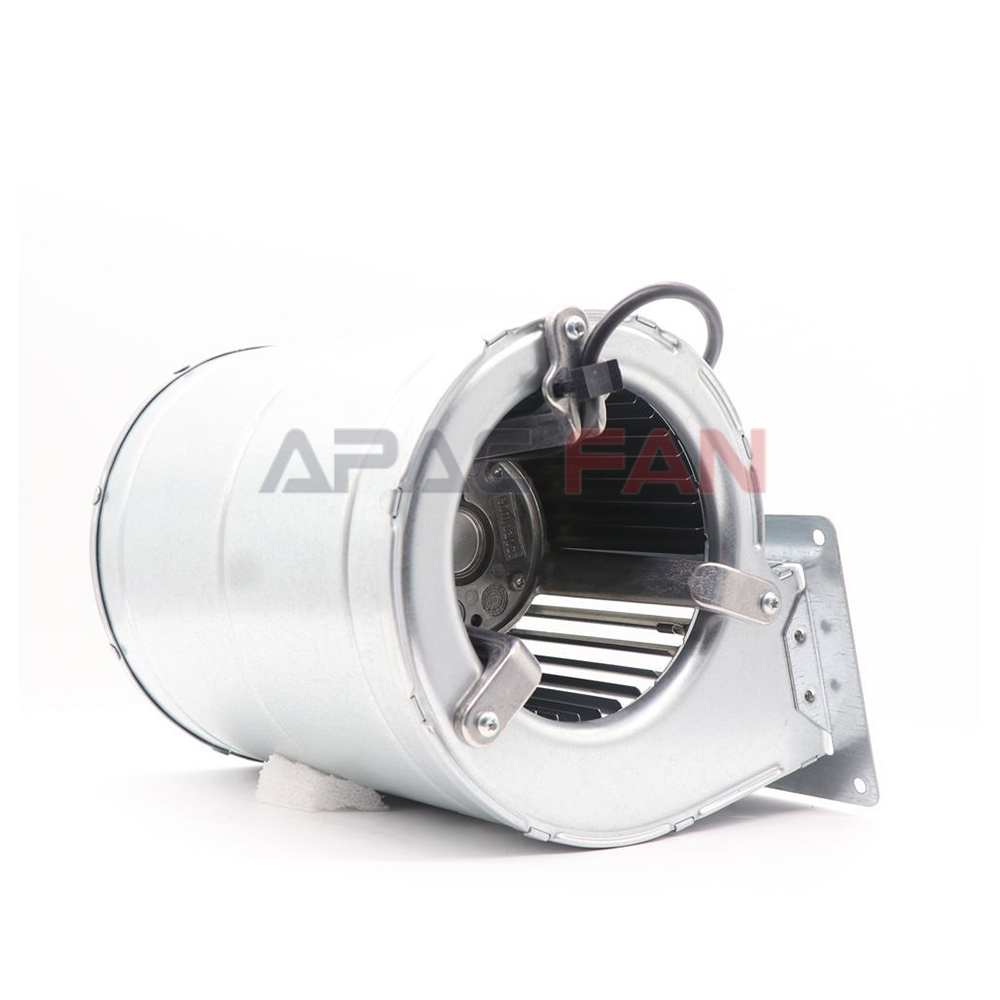

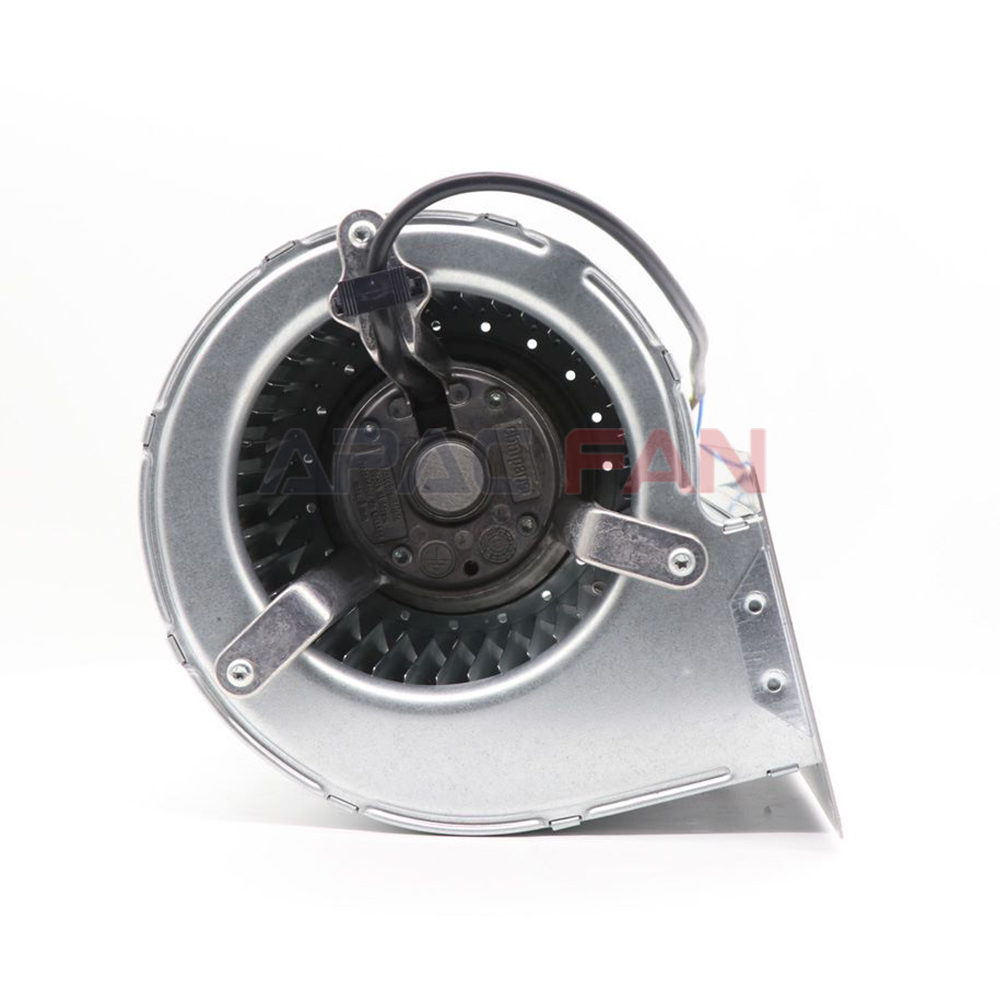

D2E133-AM47-23

Brand：

ebmpapst

Document：

D2E133AM4723.PDF

Category：

Centrifugal Fan

Description：

Type: AC Centrifugal Fan
Air output (m³/h): 710
Speed (RPM): 1800
Min. Ambient Temperature: -25 °C
Sheet Steel Impeller and Housing

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

D2E133-AM47-23

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

Max.Air Flow(m³/h)：

710

Max.Pressure(Pa)：

275

Input Power(W)：

200

Speed(rpm)：

1800

Noise(db)：

Description

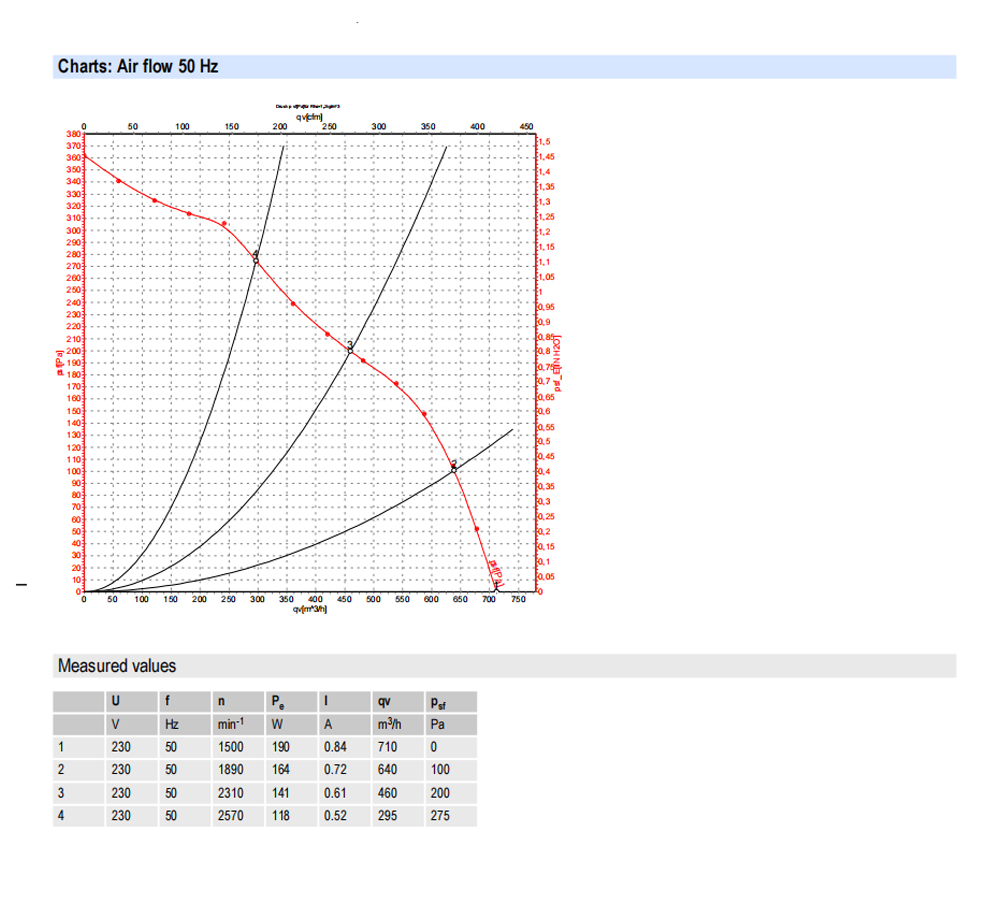

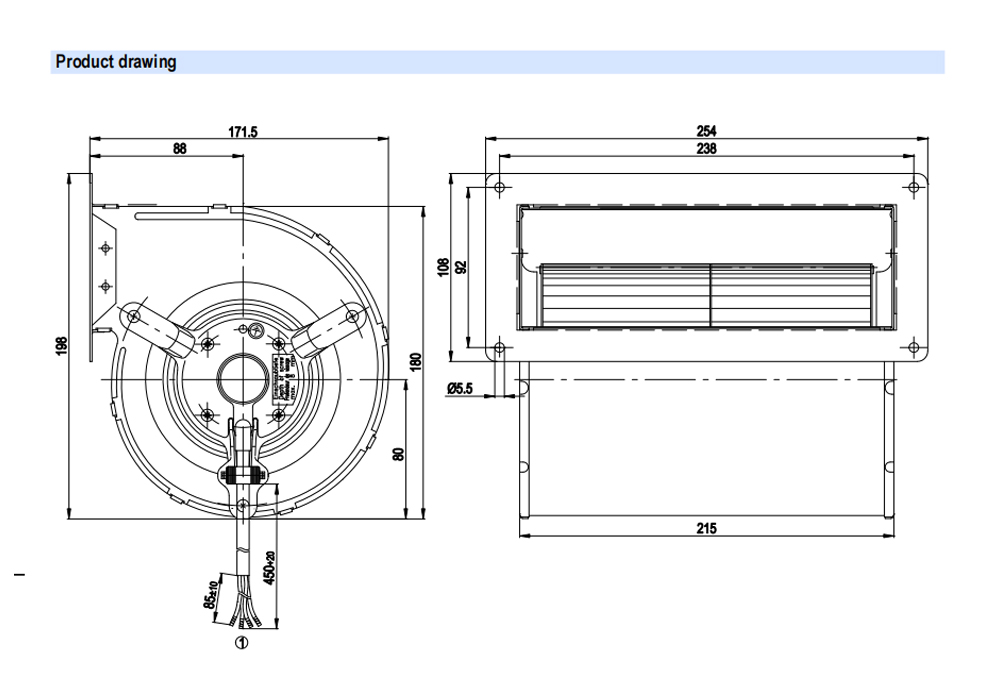

D2E133-AM47-23 ebmpapst Specification Drawing：
