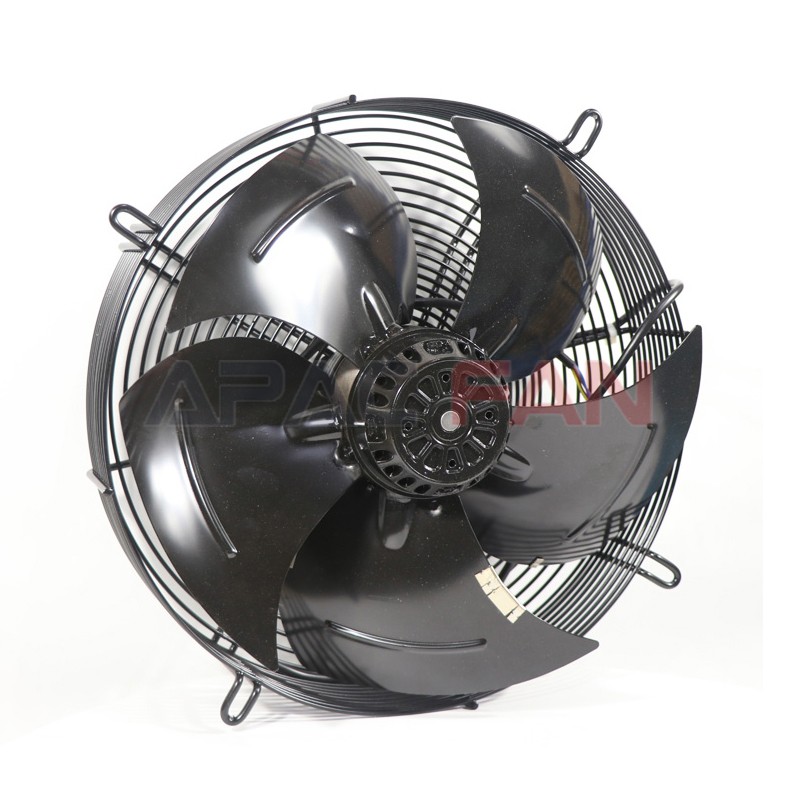

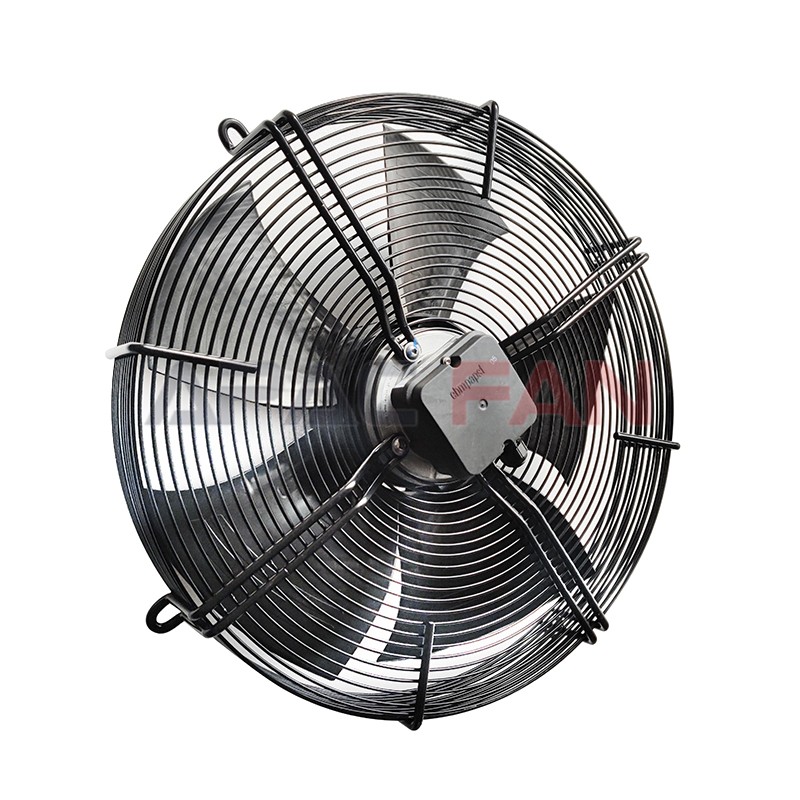

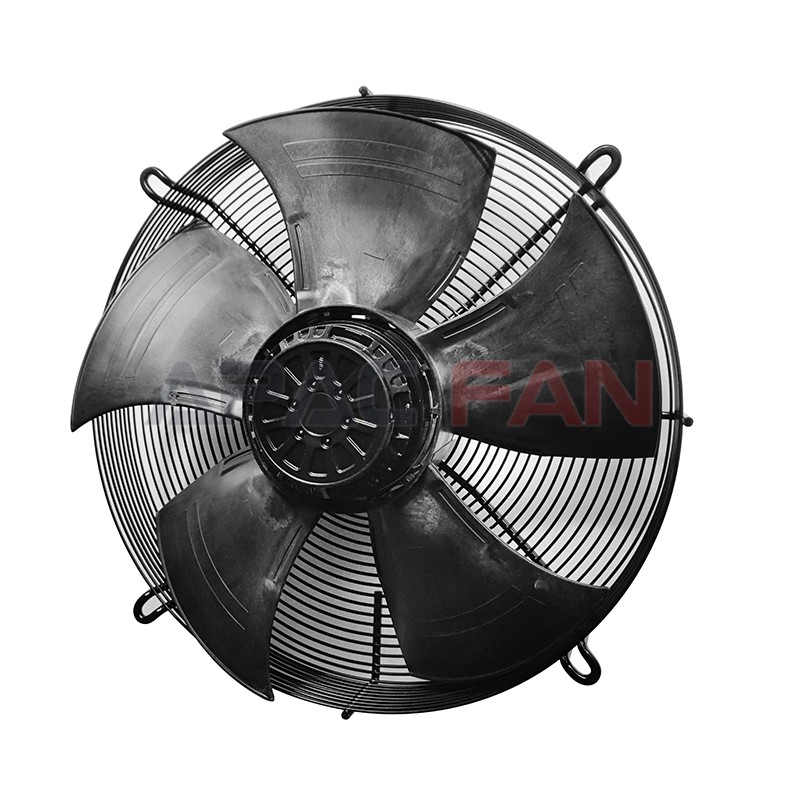

Ebm-papst S4E500-AF05-07 Condenser Axial Fan with Temperature Control | Efficient & Energy-saving
Brand：
ebmpapst
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
S4E500-AF05-07
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
500
Max.Air Flow(m³/h)：
8375
Max.Pressure(Pa)：
130
Input Power(W)：
730
Speed(rpm)：
1270
Noise(db)：
71
Description

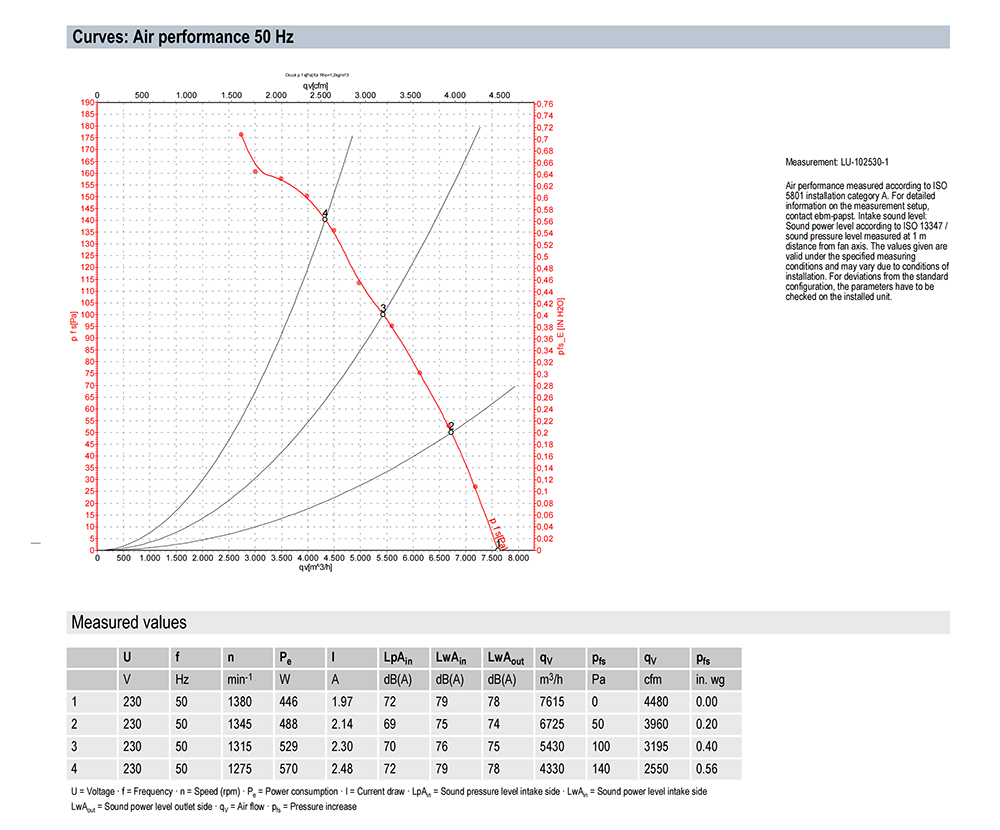

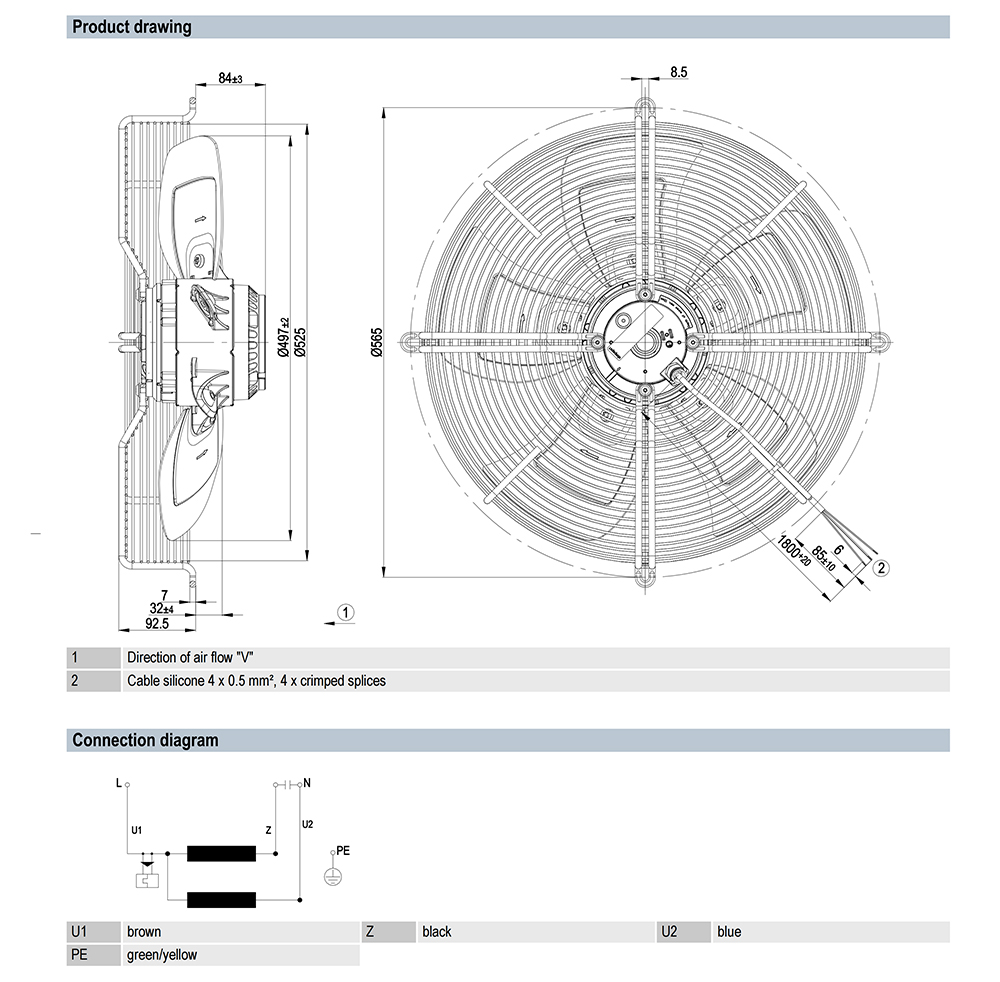

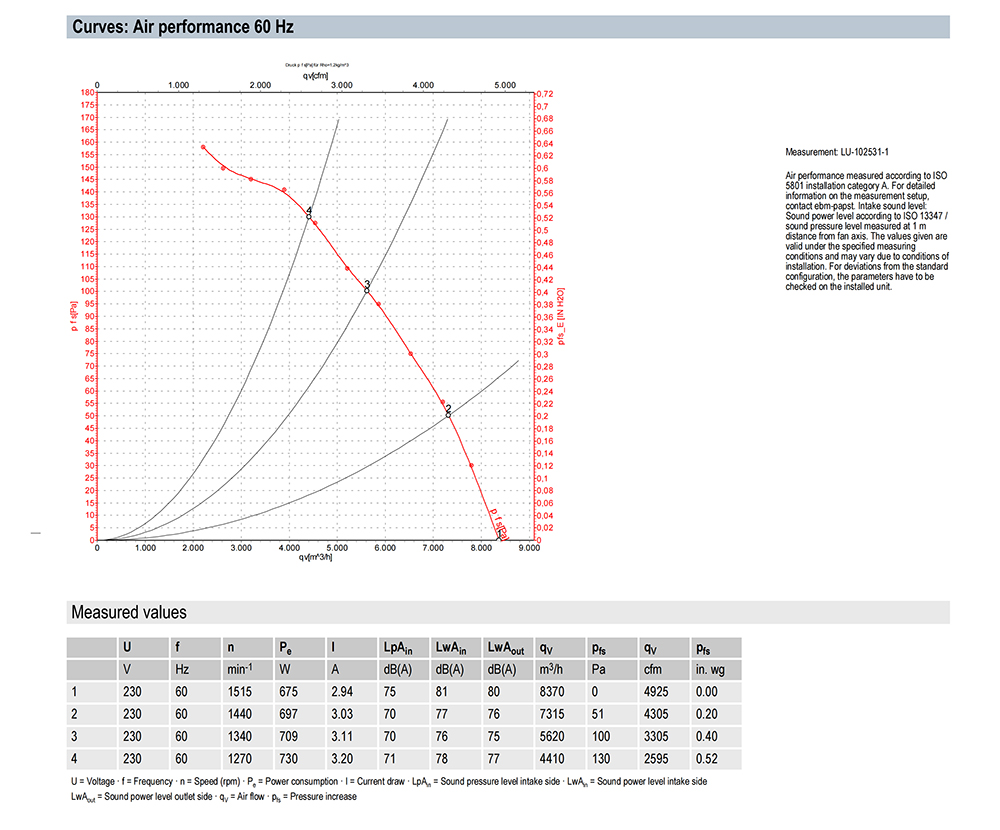

S4E500-AF05-07 Ebm-papst Specification drawing：
