S6D500-AJ03-01

Brand：

ebmpapst

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

S6D500-AJ03-01

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

500

Max.Air Flow(m³/h)：

7325

Max.Pressure(Pa)：

100

Input Power(W)：

415

Speed(rpm)：

1100

Noise(db)：

59

Description

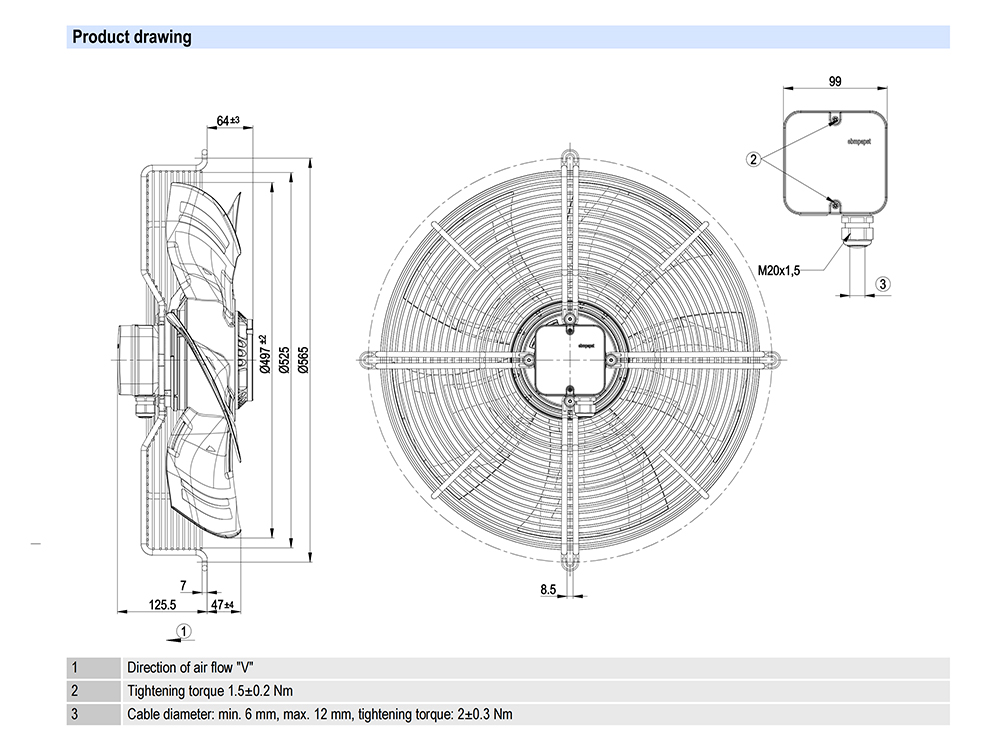

S6D500-AJ03-01 Ebm-papst Specification drawing：
