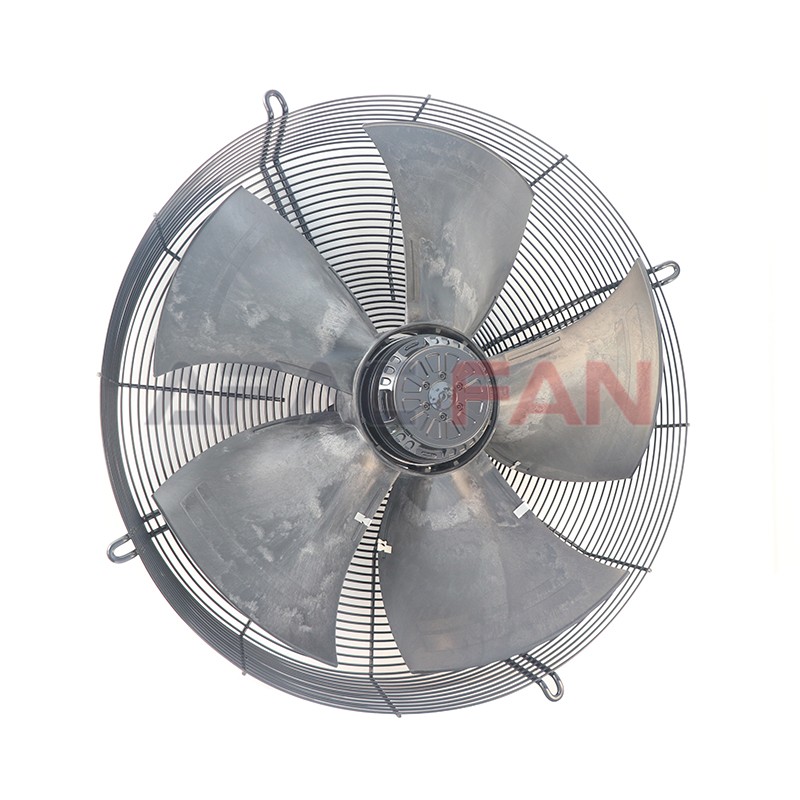

Ebm-papst S6E500-AJ03-01 Condenser High-performance Axial Fan
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
S6E500-AJ03-01
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
500
Max.Air Flow(m³/h)：
7085
Max.Pressure(Pa)：
90
Input Power(W)：
390
Speed(rpm)：
1015
Noise(db)：
70
Description

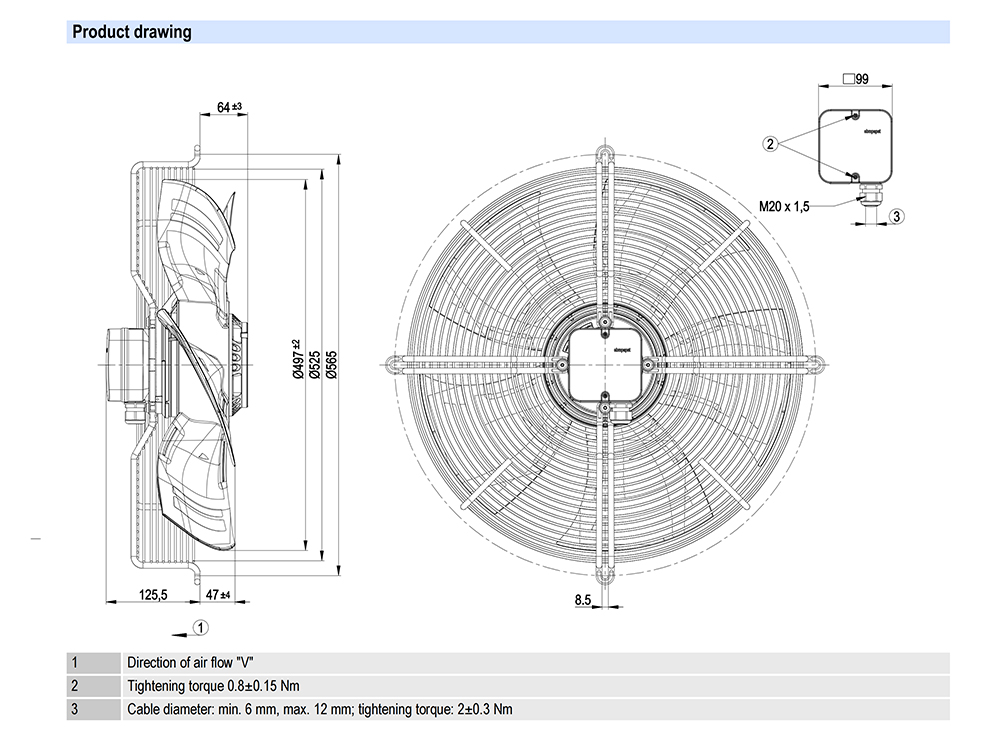

S6E500-AJ03-01 Ebm-papst Specification drawing：
