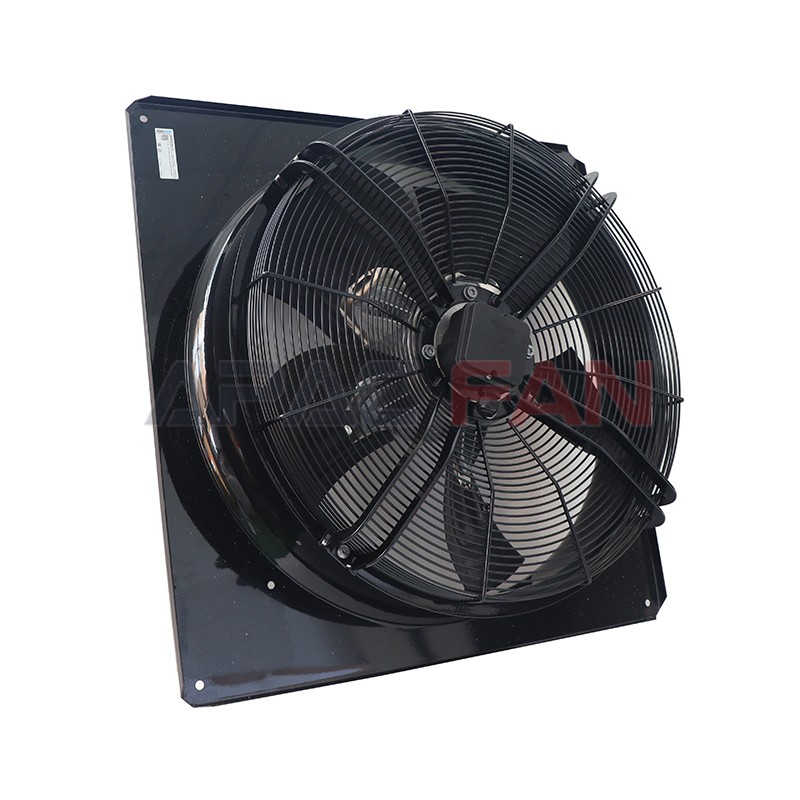

Ebm-papst W6D800-GA01-01 Commercial Evaporator Circulating Fan | Reliable & Corrosion Resistant
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
W4D630-GR01-01
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
630
Max.Air Flow(m³/h)：
13835
Max.Pressure(Pa)：
150
Input Power(W)：
1250
Speed(rpm)：
1330
Noise(db)：
69
Description
W4D630-GR01-01 Ebm-papst Specification drawing：
