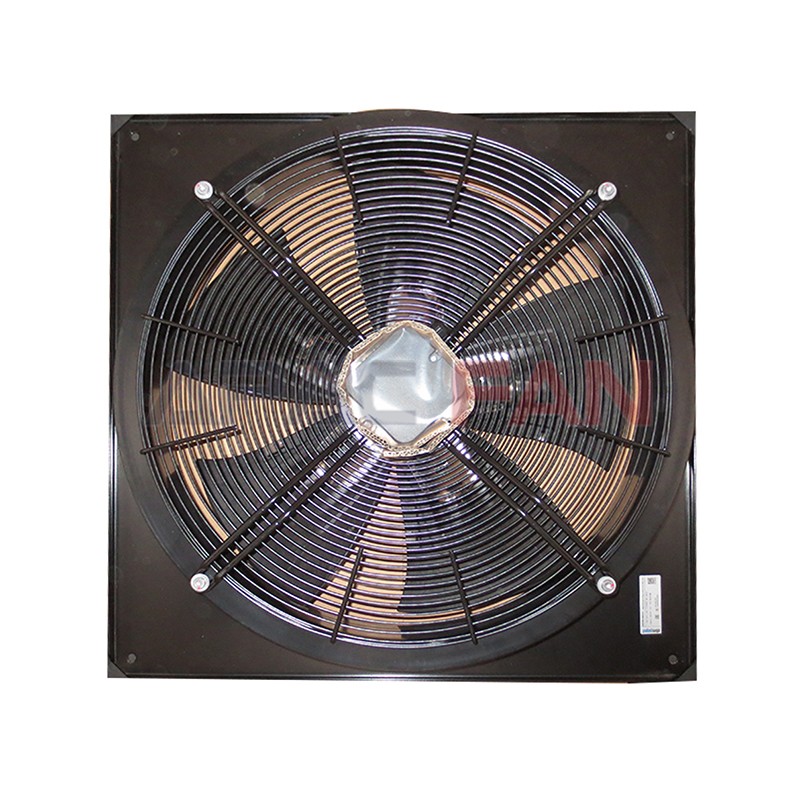

W4E500-GM03-01

Brand：

ebmpapst

Document：

W4E500GM0301.PDF

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W4E500-GM03-01

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

500

Max.Air Flow(m³/h)：

9850

Max.Pressure(Pa)：

100

Input Power(W)：

880

Speed(rpm)：

1440

Noise(db)：

65

Description

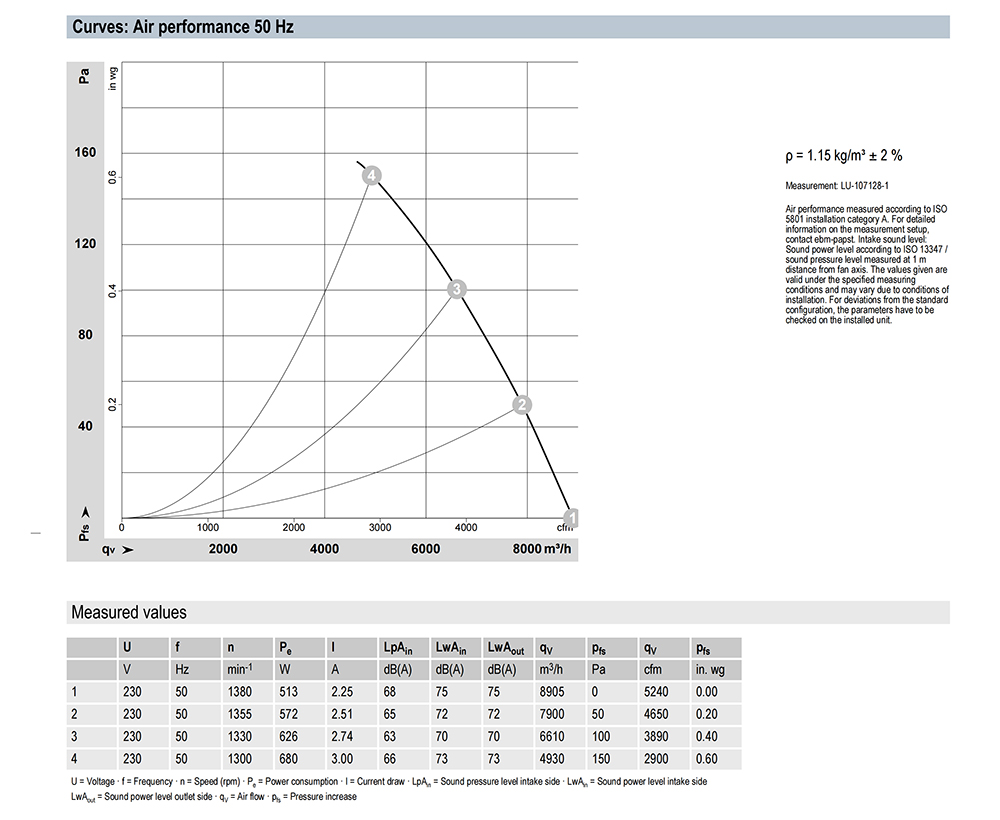

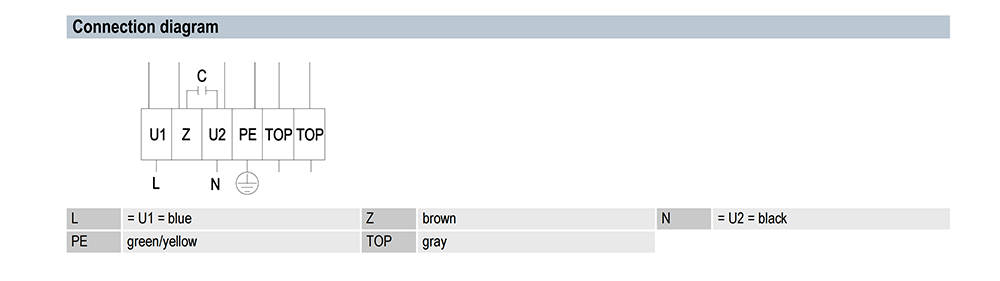

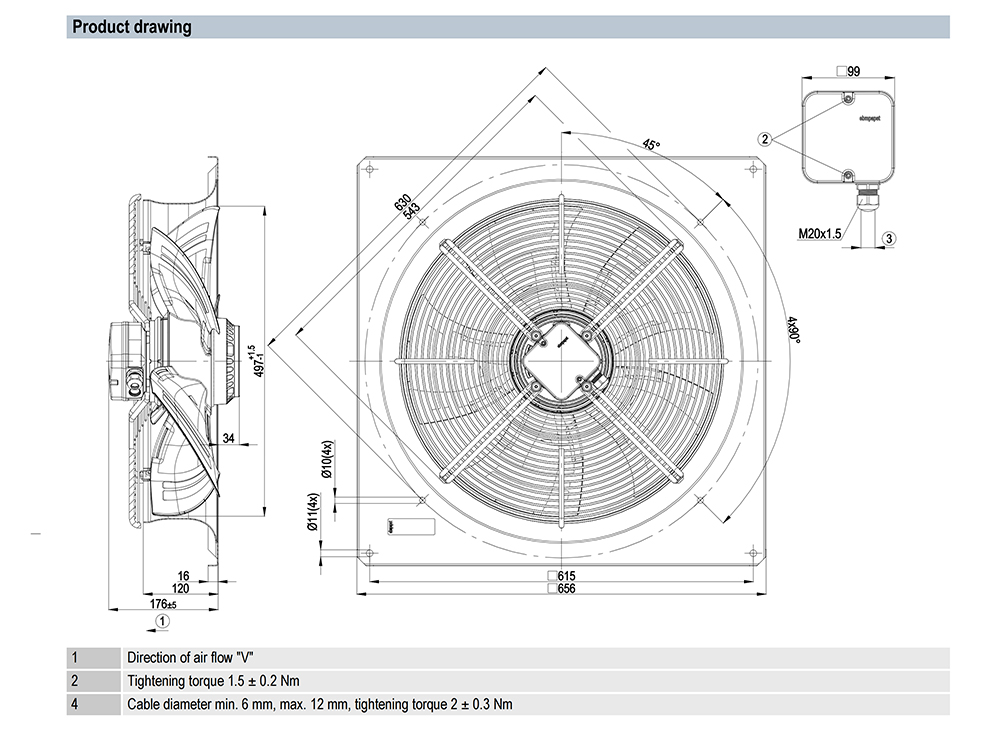

W4E500-GM03-01 Ebm-papst Specification drawing：
