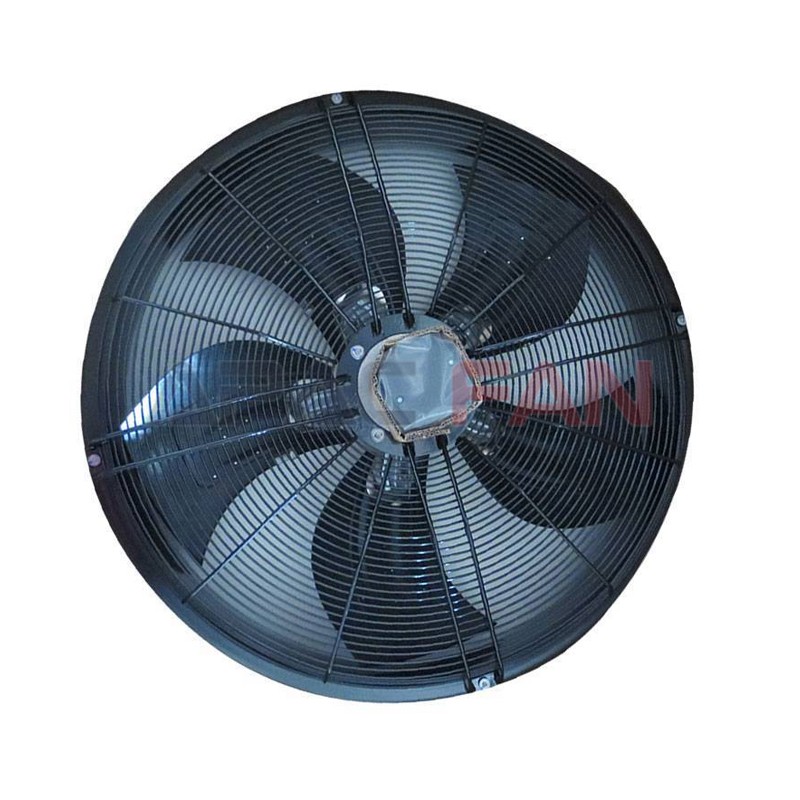

Ebm-papst W6D630-CA01-80 Axial Fan for Cooling Tower and Refrigeration

Brand：

ebmpapst

Category：

Axial Fan

Description：

1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、Easy Installation & Low Maintenance
Standardized mounting dimensions ensure easy installation and strong compatibility, while maintenance-free design reduces operating and service costs.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W6D630-CA01-80

Fan Type：

Axial Fan

Rated Voltage(V)：

480

Size(mm)：

630

Max.Air Flow(m³/h)：

13980

Max.Pressure(Pa)：

55

Input Power(W)：

925

Speed(rpm)：

1090

Noise(db)：

76

Description

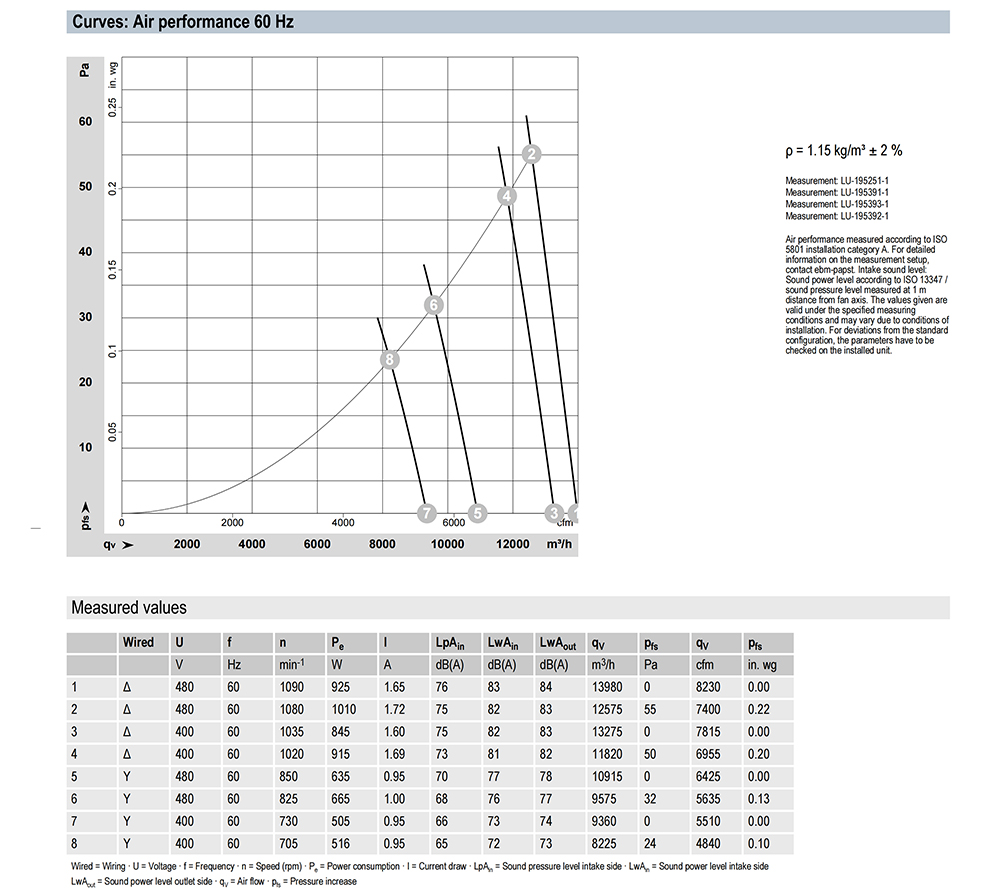

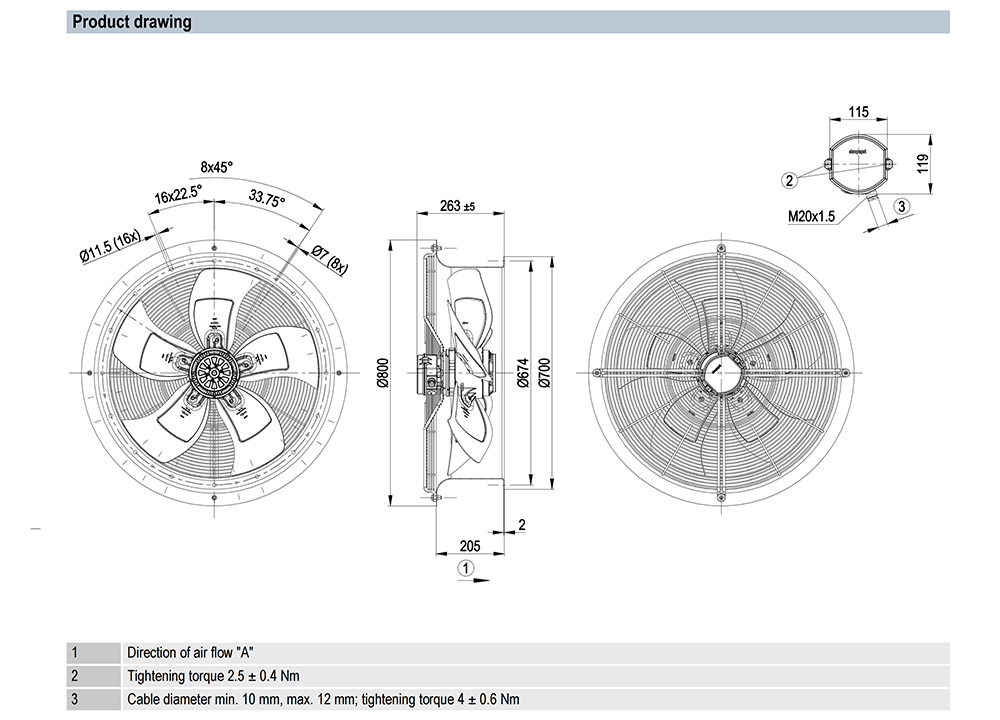

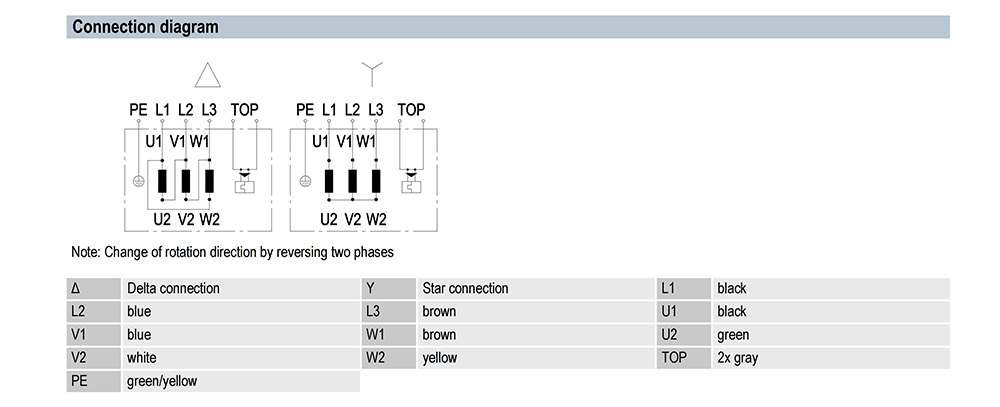

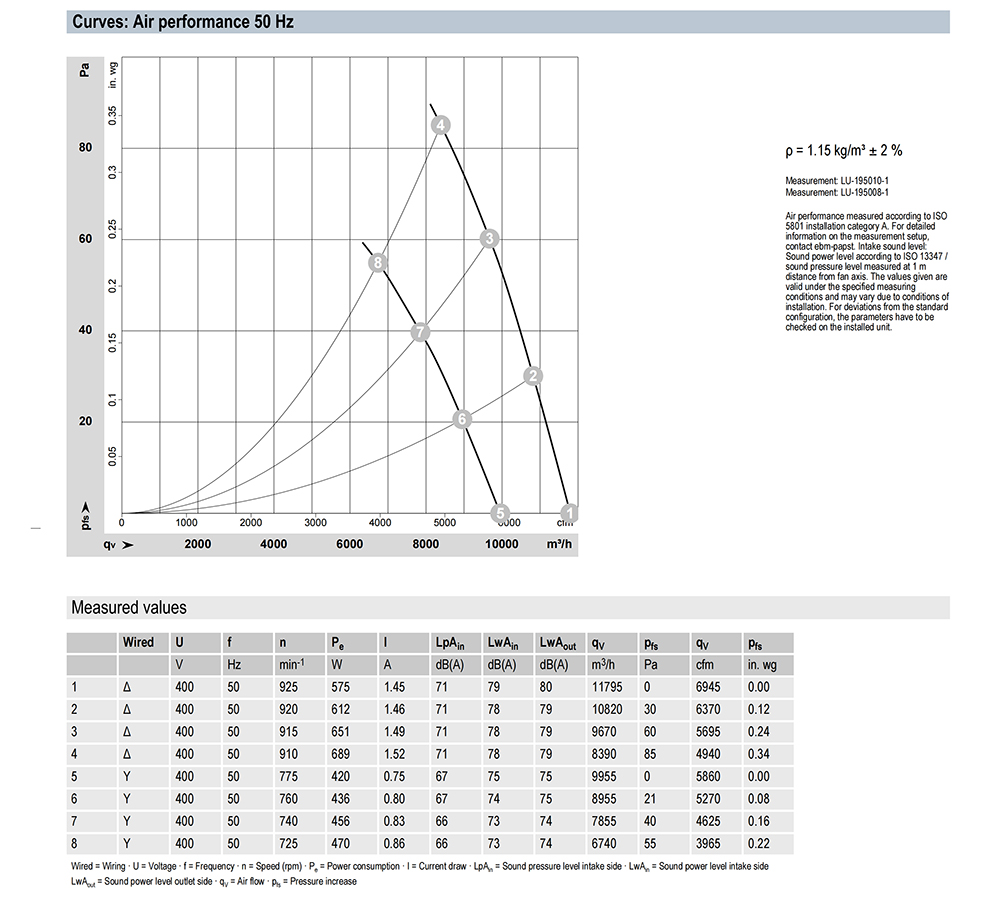

W6D630-CA01-80 Ebm-papst Specification drawing：
