繁體中文Energy-Saving Ventilation Fan Retrofit for a Security Printing Facility
07/16/2026Security printing production requires a stable, controlled, and reliable workshop environment. Temperature, humidity, ventilation, air cleanliness, noise, and pressure relationships may all influence production consistency, equipment operation, employee comfort, and workplace safety.
AISA PACIFIC SHENGRUI LIMITED carried out a targeted ventilation fan upgrade for a security printing production facility. The project focused on improving environmental stability, energy efficiency, ventilation reliability, noise performance, and maintenance accessibility without replacing the complete air-handling system.
By retaining serviceable equipment and upgrading the fans and associated controls, the retrofit provided a cost-effective solution with less disruption to ongoing production.
Ventilation Requirements in Security Printing Production
Security printing facilities may contain printing, drying, inspection, finishing, packaging, storage, and other controlled production areas. Each zone may have different requirements for airflow, temperature, humidity, filtration, and pressure.
Printing equipment, drying processes, lighting, motors, and production personnel can generate heat. Depending on the inks, coatings, cleaning agents, and production methods used, the facility may also require controlled exhaust to remove heat, odors, moisture, or process-generated airborne substances.
A reliable ventilation system must supply sufficient conditioned air while maintaining appropriate exhaust and room-pressure relationships. Unstable airflow can make temperature and humidity more difficult to control and may affect the consistency of the production environment.
Problems Associated With Aging Fan Equipment
An older fan system may continue operating even when its overall efficiency has declined. Fixed-speed operation, contaminated filters and coils, poor fan-to-system matching, excessive duct resistance, and mechanical transmission losses can all increase energy consumption.
Belt-driven fans create additional efficiency and maintenance issues. Worn belts, incorrect tension, pulley misalignment, and deteriorating bearings can reduce useful airflow while increasing noise and vibration.
These components require regular inspection, adjustment, lubrication, and replacement. In a security printing facility where production continuity is important, unexpected fan failure can disrupt environmental control and complicate production scheduling.
Evaluating the Existing Ventilation System
Before developing the retrofit plan, AISA PACIFIC SHENGRUI LIMITED evaluated the operating conditions and actual ventilation requirements of the facility.
The assessment considered airflow demand, system pressure, filter resistance, duct configuration, air-handling equipment, available installation space, electrical connections, and maintenance access. Temperature and humidity requirements, operating schedules, alarm functions, and control-system integration were also reviewed.
The engineering team examined how ventilation demand changed across production periods. This was important because the system did not necessarily require full fan output at all times.
The objective was to select fans according to actual airflow and pressure requirements rather than simply matching the rated motor power of the original equipment.
Targeted High-Efficiency Fan Upgrade

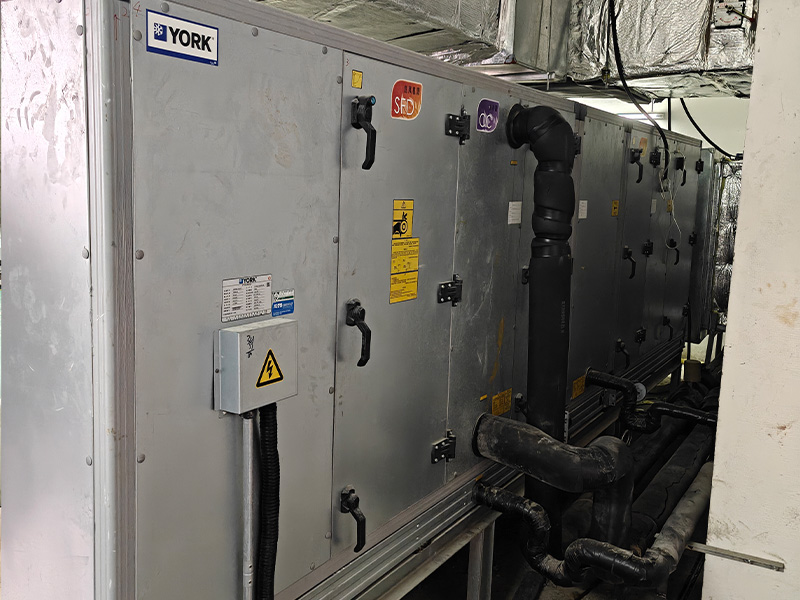

The retrofit focused on replacing inefficient fan and drive components while retaining air-handling units, ducts, filters, coils, and other equipment that remained suitable for continued use.
High-efficiency fans can deliver the required airflow with lower electrical input when correctly matched to system resistance. Direct-drive designs may further improve efficiency by eliminating belts, pulleys, and the associated transmission losses.
Where the equipment structure and operating conditions permit, a modular EC fan wall may be used instead of one large traditional fan. Multiple EC fans can provide accurate speed control, more uniform airflow, easier servicing, and a degree of operational redundancy when correctly designed.
The final configuration should be based on actual airflow, pressure, space, noise, electrical, and reliability requirements.
Intelligent Variable-Speed Control
Ventilation demand can vary according to production schedules, equipment use, indoor heat load, filter condition, and seasonal weather. A fixed-speed fan cannot respond efficiently to these changes.
Variable-speed control allows fan output to follow actual system demand. Depending on the application, speed adjustments may be based on temperature, humidity, airflow, differential pressure, equipment status, or production schedules.
During lower-load periods, fan speed can be reduced while the necessary workshop conditions are maintained. When production demand or system resistance increases, the fans can raise their output within the designed range.
This demand-based strategy reduces unnecessary energy consumption while supporting stable environmental control.
Stable Temperature and Humidity Control
Temperature and humidity stability may be important for printing quality, substrate behavior, ink performance, static control, drying, registration, and equipment operation. The exact requirements depend on the production process and materials used.
Reliable fan operation supports the distribution of conditioned air throughout the workshop. When airflow is unstable, cooling, heating, humidification, dehumidification, and filtration systems may not perform consistently.
Improved fan control allows airflow to be adjusted as production loads and environmental conditions change. However, fans must be coordinated with the complete HVAC system, including cooling capacity, humidity-control equipment, sensors, ducts, filters, and control setpoints.
Supporting Ventilation Safety
Where printing or cleaning processes release vapors or other airborne substances, exhaust airflow must be designed to provide appropriate capture and removal. Energy savings must never be achieved by reducing ventilation below the level required for workplace safety or process compliance.
The exhaust fan must be selected according to actual airflow, duct resistance, treatment equipment, and material characteristics. If flammable, corrosive, or otherwise hazardous substances are present, fan construction, motors, electrical equipment, and control systems must comply with the applicable risk assessment and safety requirements.
The retrofit should therefore be coordinated with the facility’s environmental, health, safety, and fire-protection procedures.
Improving Airflow and Pressure Stability
Different areas within a security printing facility may require controlled airflow relationships. Supply and exhaust fans must work together to prevent uncontrolled air movement between production, inspection, storage, and supporting spaces.
Variable-speed control can help maintain the intended pressure relationship as doors open, filters become loaded, or production equipment changes status. More stable airflow reduces drafts, stagnant areas, and unwanted pressure fluctuations.
Correct pressure control also makes the overall environmental system more predictable and easier to manage.
Low-Noise and Low-Vibration Operation
Fan noise and vibration can affect the workshop environment and place additional mechanical stress on air-handling units, ducts, and supporting structures.
Common causes include worn bearings, loose belts, pulley misalignment, impeller imbalance, and fans operating outside their efficient range. Direct-drive fan technology eliminates belt-related vibration and reduces the number of mechanical transmission components.
Variable-speed control provides an additional noise benefit by allowing fans to operate below maximum speed when full airflow is not required. Correct fan selection also helps reduce unnecessary aerodynamic noise.
Improved Reliability and Production Continuity
Security printing production depends on controlled operating conditions and carefully managed schedules. Unexpected ventilation-system failure can affect both the workshop environment and production continuity.
A modular fan arrangement may improve resilience by distributing airflow across several independently driven fan units. Depending on the design, the remaining fans may provide partial airflow while one module is inspected or serviced.
Any required standby capacity must be calculated during system design. Redundancy should not be assumed simply because multiple fans are installed.
Monitoring and alarm functions can also help facility teams identify abnormal operation earlier and arrange maintenance before a fault develops into a major interruption.
Simplified Maintenance
Traditional belt-driven fan systems require routine checks of belt tension, pulley alignment, bearing condition, lubrication, and mechanical wear. These tasks increase maintenance workload and may require temporary shutdowns.
Direct-drive fans simplify the mechanical structure by eliminating belts and pulleys. Modular units may also improve service access because individual fans can be inspected or replaced separately.
Integrated monitoring can provide information such as operating status, fan speed, fault alarms, power consumption, and accumulated running time. This supports preventive maintenance and reduces dependence on emergency repairs.
Why a Targeted Retrofit Is More Practical
Replacing an entire ventilation or air-conditioning system may involve extensive modifications to air-handling units, ducts, structural supports, electrical infrastructure, and controlled production areas. It may also require a shutdown that is difficult to arrange.
A targeted fan retrofit retains functional equipment while addressing the main sources of energy waste, control limitations, noise, vibration, and maintenance difficulty.
This approach can shorten the installation period, control project investment, and limit interference with production. It is particularly suitable when the existing AHU structure and duct system remain serviceable but the original fan technology no longer meets current requirements.
Monitoring Energy-Saving Performance
Energy-saving results should be evaluated using comparable operating information before and after the upgrade. Relevant data may include fan power, operating hours, airflow, pressure, production load, filter condition, and temperature or humidity demand.
A simple comparison of monthly electricity consumption may be misleading if operating hours or production volume have changed. Establishing an appropriate baseline provides a clearer assessment of the savings created by fan efficiency and improved speed control.
Continuous monitoring also helps confirm that the upgraded system maintains its performance over time.
Long-Term Value
The long-term value of the fan retrofit comes from lower energy consumption, more stable environmental control, reduced mechanical maintenance, and improved operational visibility.
Intelligent controls allow fan output to respond to changes in production demand, filter resistance, and seasonal conditions. Alarm and monitoring functions help maintenance teams identify problems faster and plan service more effectively.
Together, these improvements support lower lifecycle costs, reliable ventilation, and more consistent long-term operation.
Conclusion
The ventilation fan upgrade gave the security printing facility a targeted way to improve energy performance without replacing the complete air-handling system.
Through site evaluation, efficient fan selection, variable-speed control, and maintenance-oriented design, AISA PACIFIC SHENGRUI LIMITED developed a retrofit solution focused on environmental stability, ventilation safety, low-noise operation, and production reliability.
For security printing facilities operating aging ventilation equipment, a carefully planned fan retrofit can reduce energy consumption while supporting a stable and controllable production environment.
