Ebm-papst W6E630-NT03-01 Large Condensing Unit Cooling Fan | High-reliability Operation

Brand：

ebmpapst

Document：

W6E630NT0301.PDF

Category：

Axial Fan

Description：

1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W6E630-NT03-01

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

630

Max.Air Flow(m³/h)：

11500

Max.Pressure(Pa)：

120

Input Power(W)：

535

Speed(rpm)：

845

Noise(db)：

Description

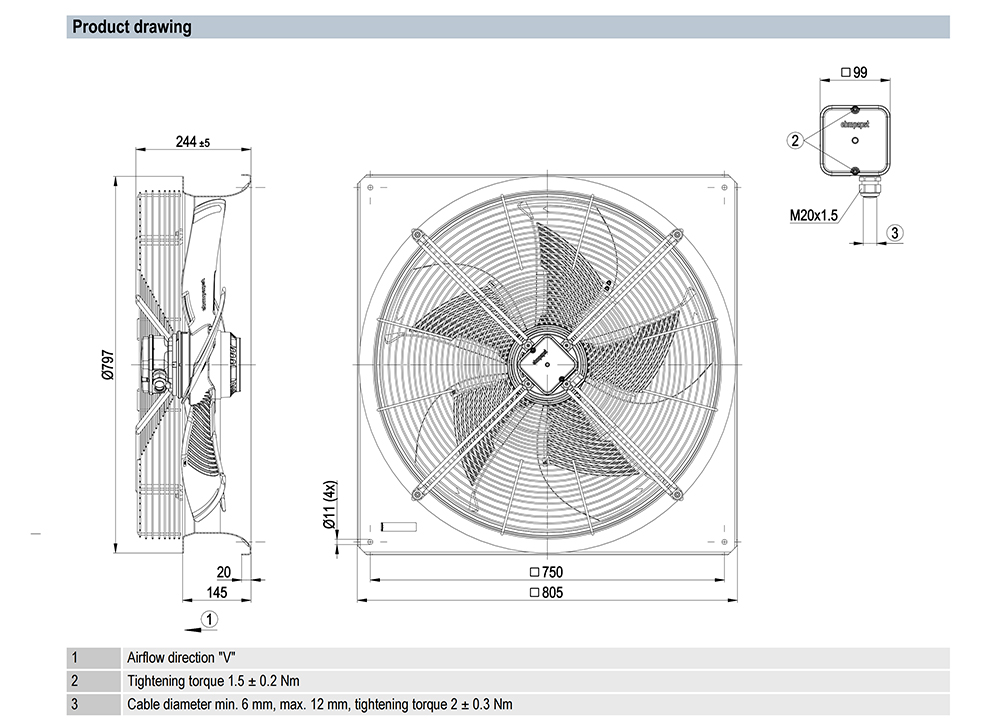

W6E630-NT03-01 Ebm-papst Specification drawing：
