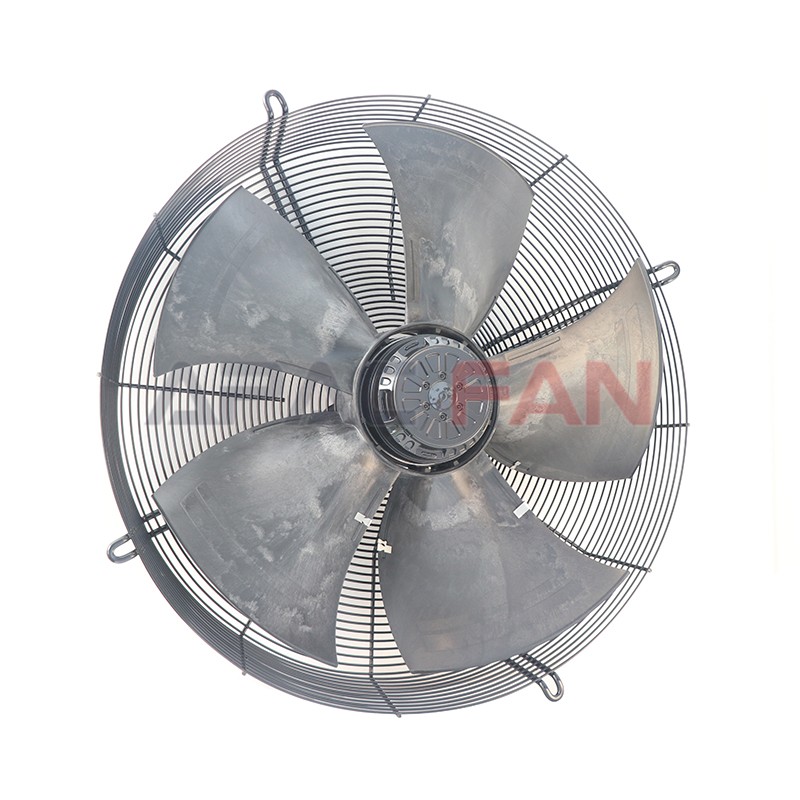

Ebm-papst W6E630-CO01-80 Substation Forced Exhaust Fan | Safe & Reliable
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
W6E630-CO01-80
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
630
Max.Air Flow(m³/h)：
10550
Max.Pressure(Pa)：
Input Power(W)：
170
Speed(rpm)：
1380
Noise(db)：
71
Description

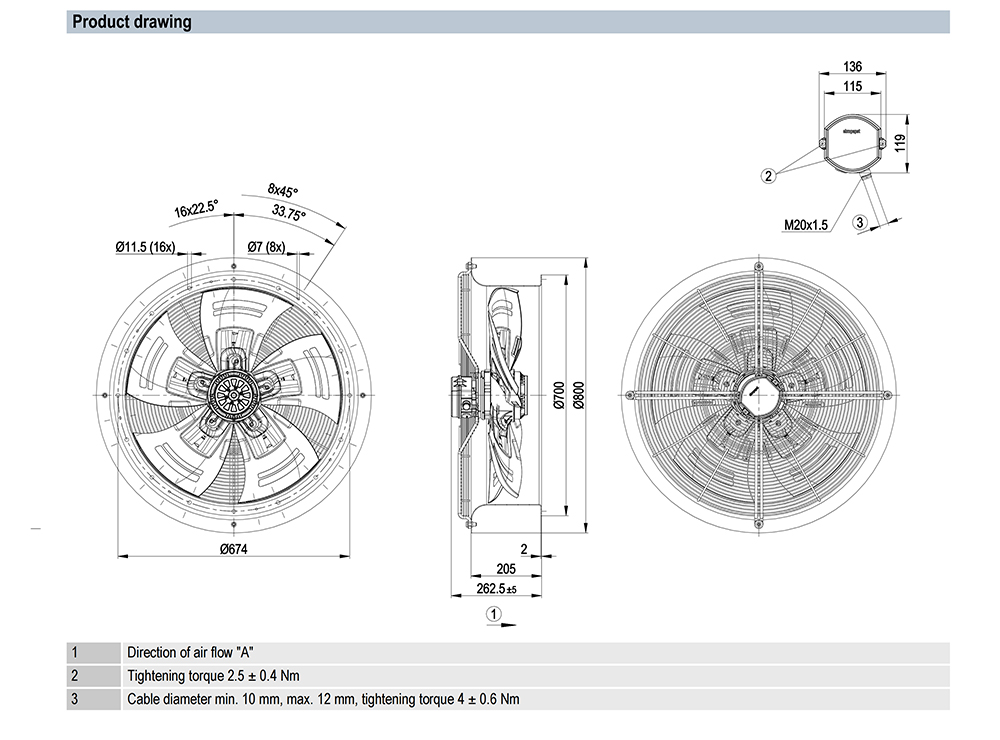

W6E630-CO01-80 Ebm-papst Specification drawing：
