繁體中文How to Evaluate Precision Cooling Fan Efficiency Data
09/15/2026Efficiency Must Be Compared at the Same Duty
A fan efficiency claim has little value unless it is tied to a defined airflow and pressure. Two models tested at different operating points cannot be compared fairly from peak efficiency or motor efficiency alone. The fan, motor, drive electronics, and impeller must work together to convert electrical input into useful air power.
For precision cooling, the comparison should reflect the complete operating range. Continuous systems often spend more hours at partial load than at the design maximum, so annual performance may differ from a single rated point.
Static and Total Efficiency
Static efficiency relates useful static pressure and airflow to input power. Total efficiency includes total pressure, which combines static pressure and velocity pressure. The appropriate metric depends on where pressure is measured and how the air leaves the fan. Mixing static and total values can make one product appear artificially stronger.
Test reports should state the pressure definition, measurement plane, air density, inlet arrangement, and whether motor and control losses are included. Use the same basis for every candidate.
Motor Efficiency Is Only One Part
A high-efficiency motor can drive an impeller that is operating far from its best range. Conversely, an aerodynamically efficient wheel can lose the advantage through motor or electronic losses. The relevant number for the equipment manufacturer is normally fan-system electrical input at the required airflow and pressure.

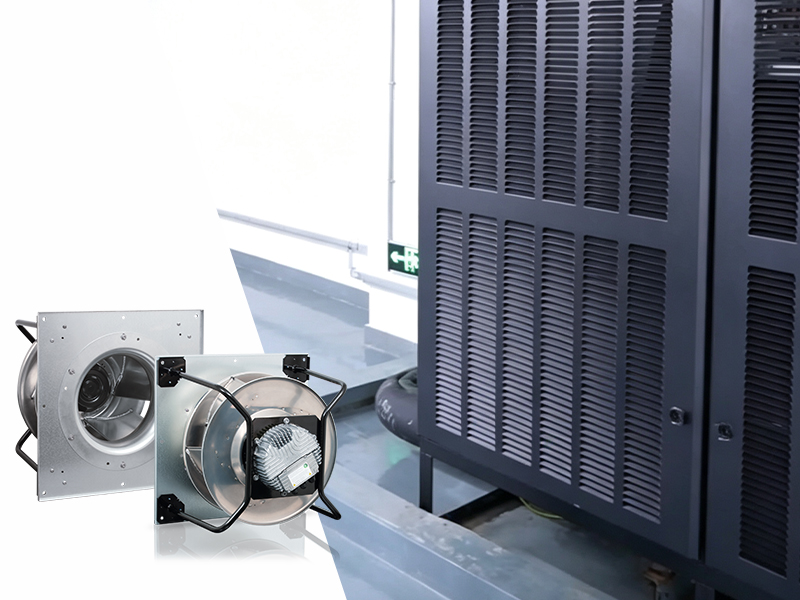

Integrated EC products simplify this measurement because the motor and electronics are part of the fan assembly, but auxiliary components and communication power should still be defined.
Best Efficiency Point and Operating Range
Every fan has a region where airflow and pressure are produced efficiently and stably. Selecting near this region can reduce input power and sound. Operating too far toward low flow may create separation or instability, while operating at excessive flow may increase velocity losses and motor loading.
The system curve moves when filters load, dampers change, floor tiles are adjusted, or cabinets are modified. A good selection remains acceptable across these realistic conditions rather than achieving an excellent number at only one laboratory point.
Partial-Load and Specific Fan Power
Partial-load data should show input power at several speeds or airflow points against the expected system resistance. Speed reduction can produce large savings, but the real relationship depends on the air path and control limits. Minimum-speed operation should still maintain mixing, filtration, and heat-exchanger performance.
Specific fan power expresses input power relative to delivered airflow and can support comparison when the measurement boundaries are consistent. It should be accompanied by pressure because a fan delivering against higher resistance is performing a different task.
A Better Supplier Comparison
Ask suppliers for certified or clearly documented curves showing airflow, static or total pressure, speed, input power, efficiency, and sound. Provide the same duty points, air density, voltage, control method, and installation assumptions to each supplier. Identify whether the data is for a free fan or a cabinet-installed assembly.
The best choice is not always the fan with the highest peak percentage. It is the solution that uses the least practical energy across the expected operating profile while meeting pressure, sound, reliability, and integration requirements.
Conclusion
Fan efficiency comparisons should use common duty points and common measurement boundaries. Performance across the expected load profile matters more than one peak number on a product sheet.
