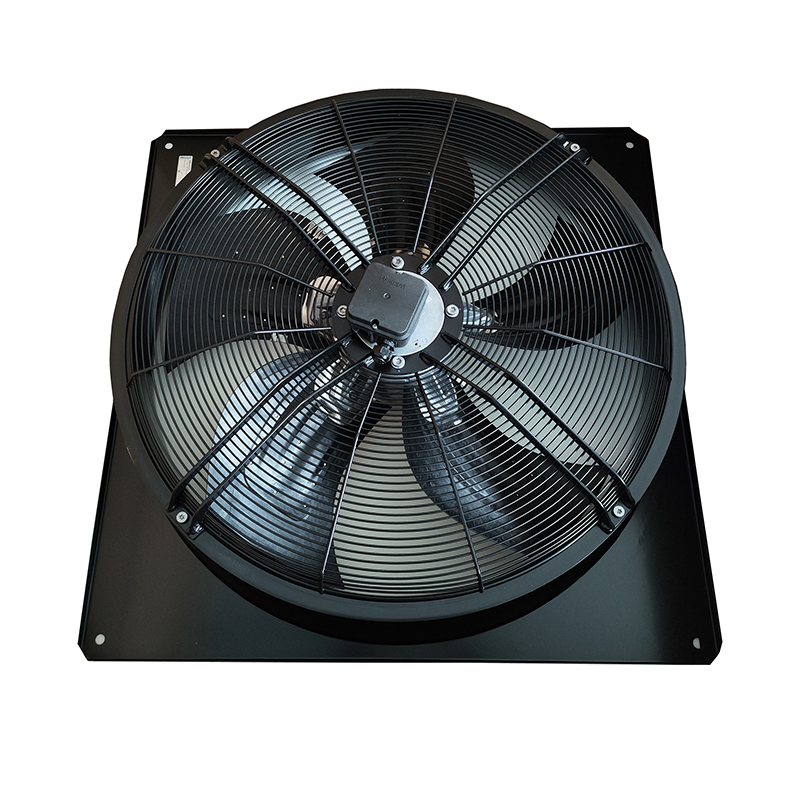

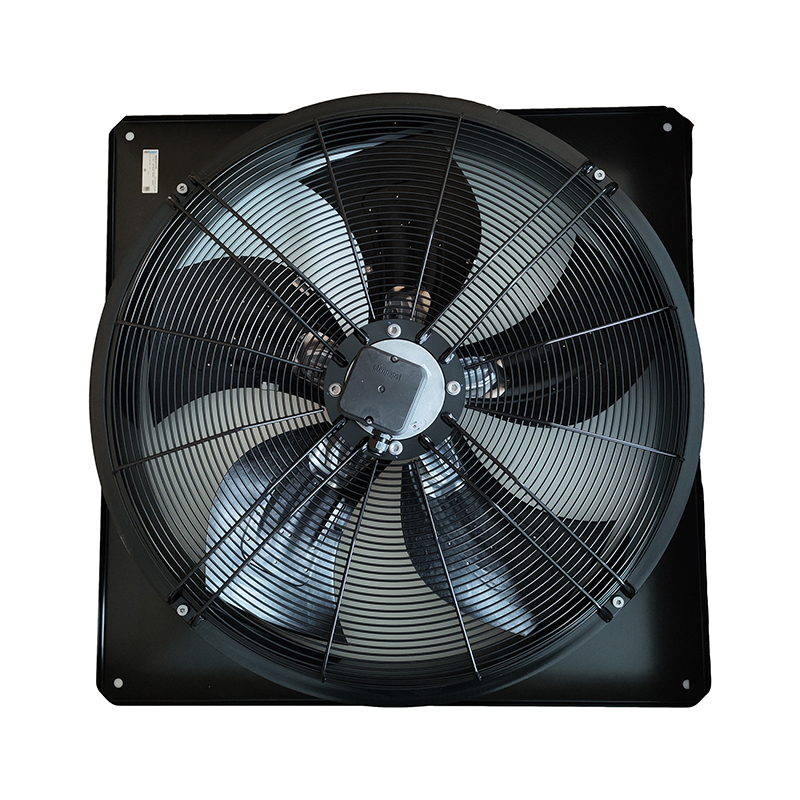

W6D800-KG13-01/F03 Ebm-papst Axial Fan

Brand：

ebmpapst

Document：

W6D800KG1301F03.PDF

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

W6D800-KG13-01/F03

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

800

Max.Air Flow(m³/h)：

23030

Max.Pressure(Pa)：

81

Input Power(W)：

840

Speed(rpm)：

650

Noise(db)：

64

Description

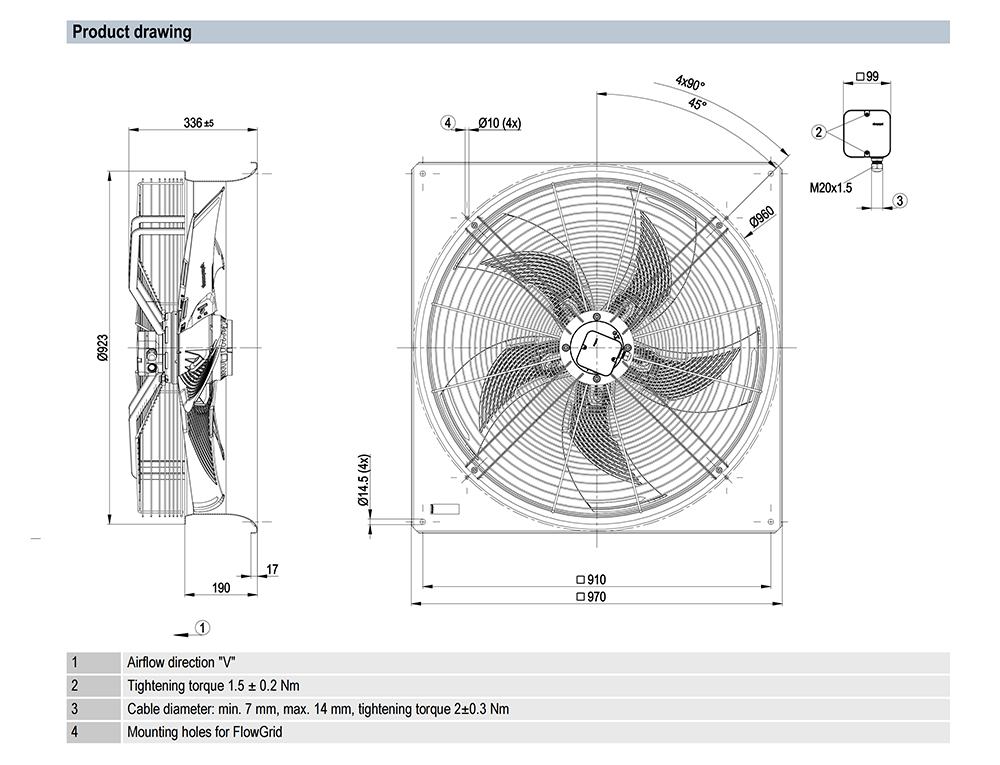

W6D800-KG13-01/F03 Ebm-papst Specification Drawing：
