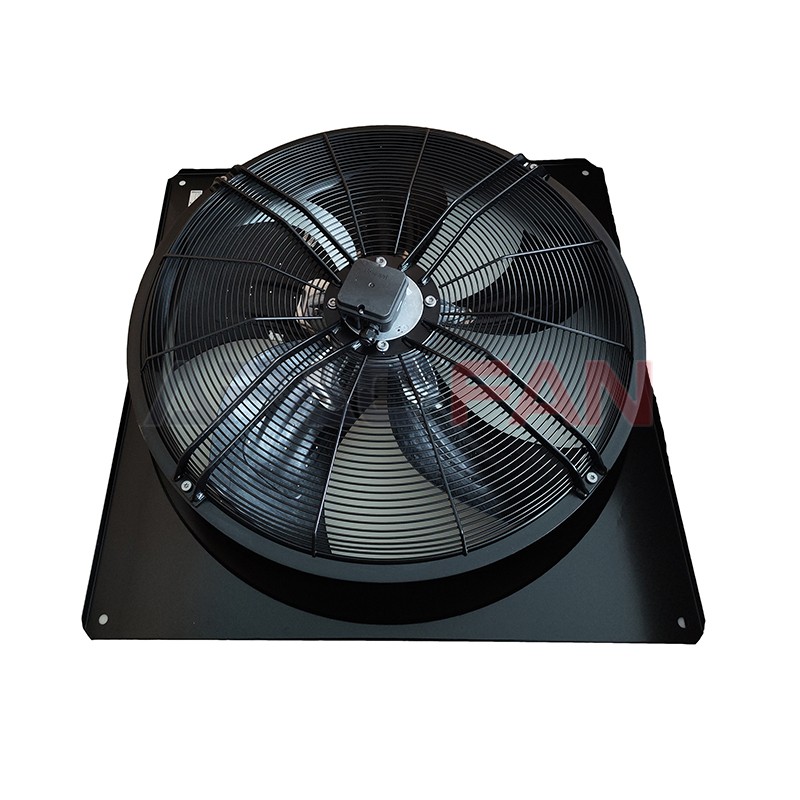

Ebm-papst W6D800-GE05-03 Condenser Durable Axial Fan | Suitable for Heat Pump Systems
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
W6D800-GE05-03
Fan Type：
Axial Fan
Rated Voltage(V)：
480
Size(mm)：
800
Max.Air Flow(m³/h)：
25190
Max.Pressure(Pa)：
150
Input Power(W)：
2180
Speed(rpm)：
1125
Noise(db)：
78
Description

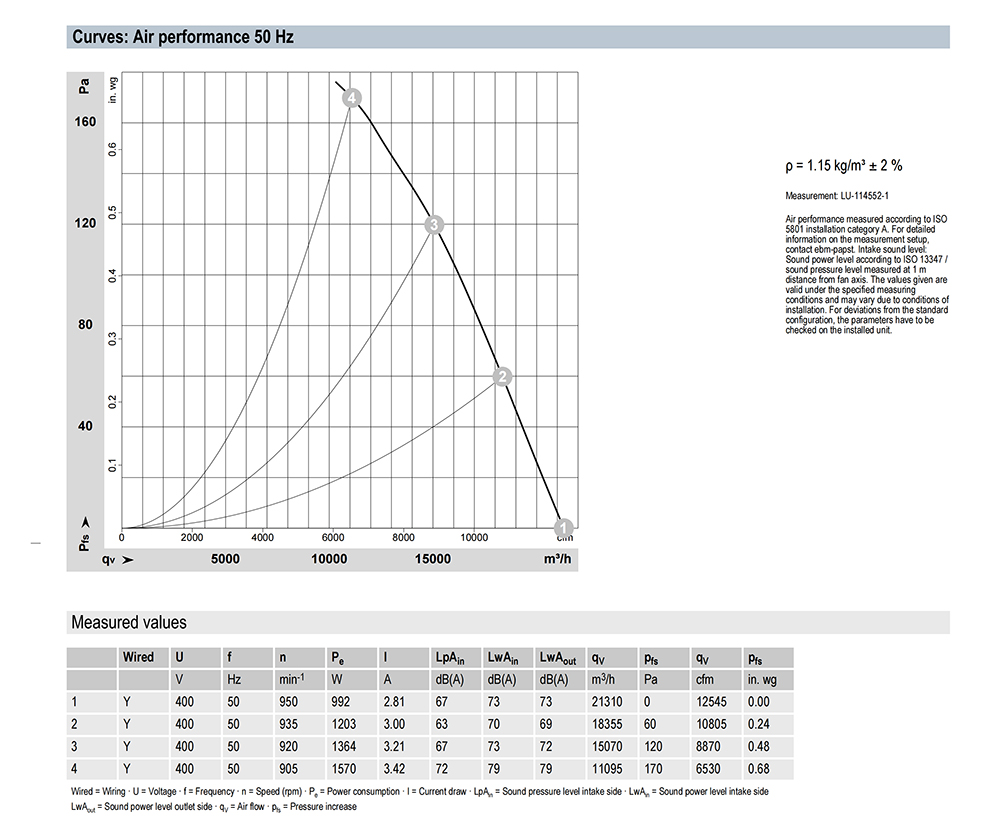

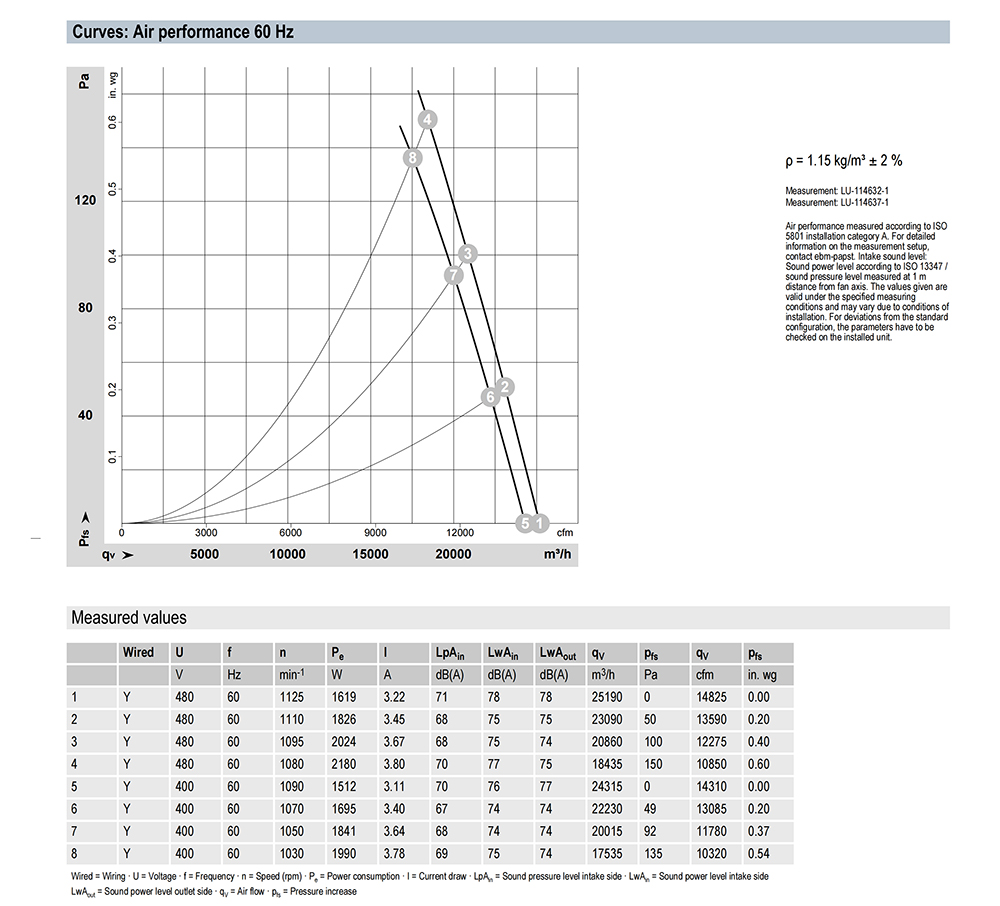

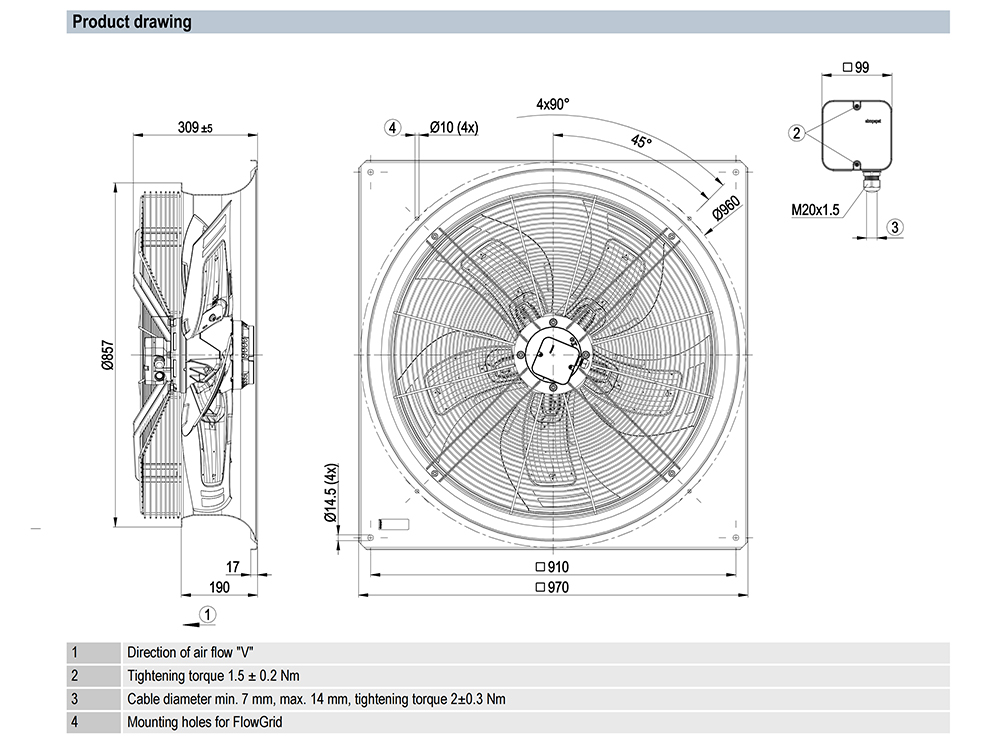

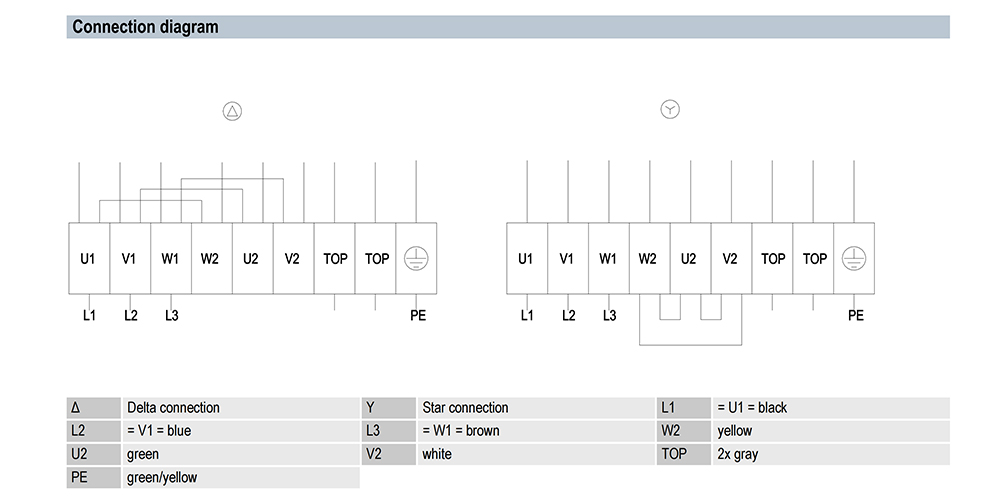

W6D800-GE05-03 Ebm-papst Specification drawing：
