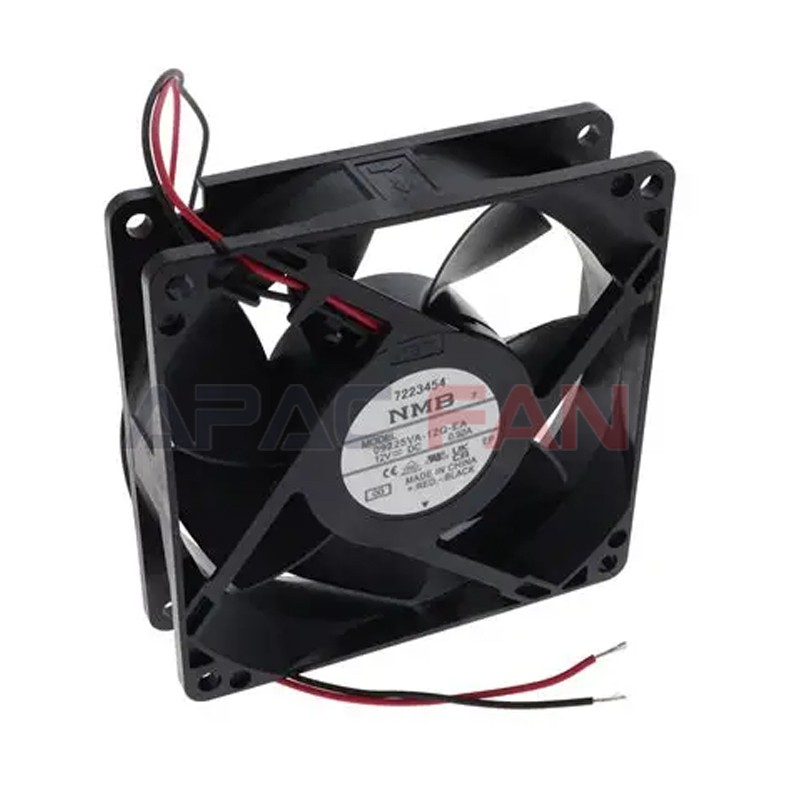

09225VA-12Q-CA-00

Brand：

NMB-MAT

Category：

Axial Fan

Description：

100% genuine NMB 92x92x25mm 12V fan. High-airflow unit providing 163.8 m³/h airflow and 149.5 Pa static pressure at 5600 RPM. Ready for quick dispatch.

00852-56261528 info@apacfan.com

Nominal data

Brand：

NMB-MAT

Part No.：

09225VA-12Q-CA-00

Fan Type：

Axial Fan

Rated Voltage(V)：

Size(mm)：

92*92*25

Max.Air Flow(m³/h)：

164

Max.Pressure(Pa)：

149.5

Input Power(W)：

8.64

Speed(rpm)：

5600

Noise(db)：

Description

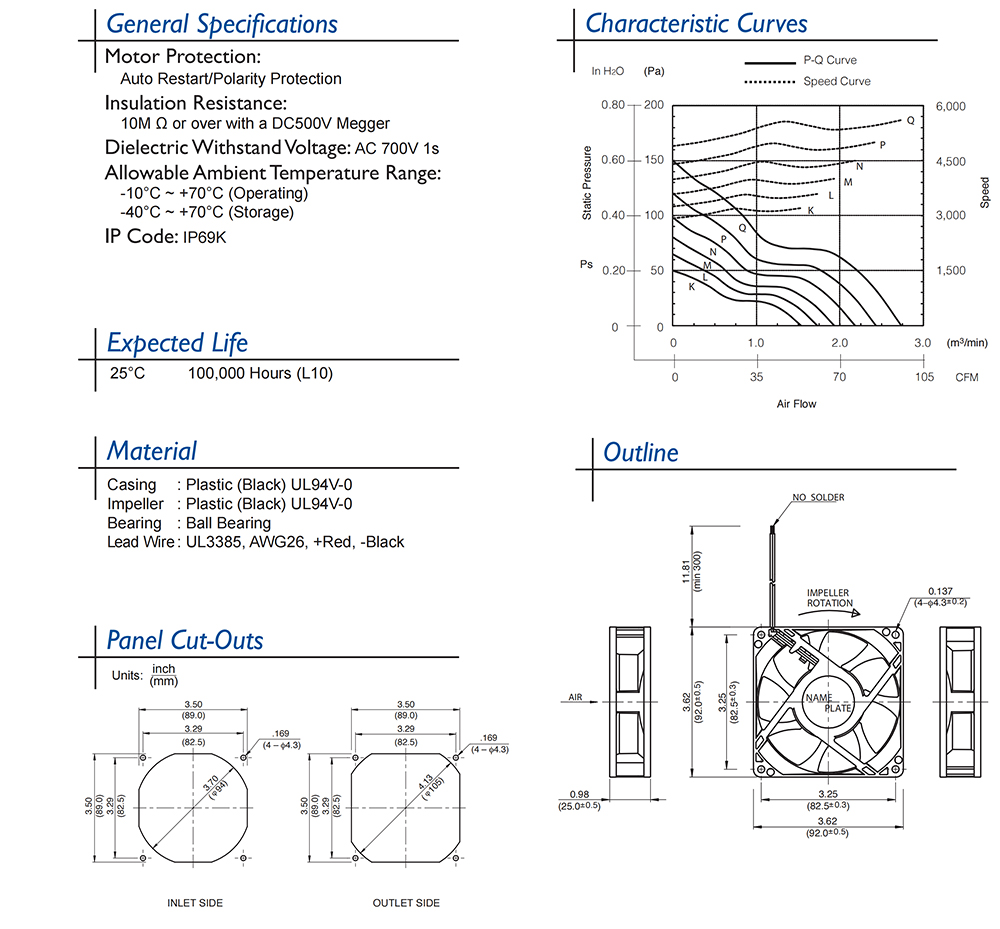

09225VA-12Q-CA-00 NMB-MAT Specification drawing：
