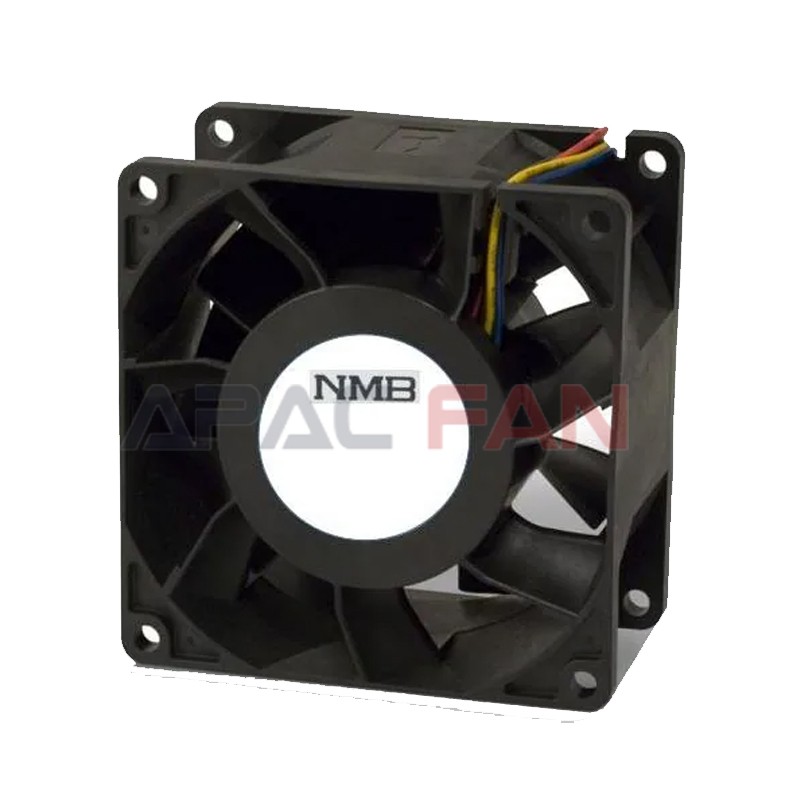

3115PS-22T-B20-B00 NMB Precision Instrument Axial Fan

Brand：

NMB-MAT

Category：

Axial Fan

Description：

Compact axial design,
stable airflow, low noise operation,
EV charging and precision equipment applications.
long service life, and reliable performance for air purifiers, medical.

00852-56261528 info@apacfan.com

Nominal data

Brand：

NMB-MAT

Part No.：

3115PS-22T-B20-B00

Fan Type：

Axial Fan

Rated Voltage(V)：

220

Size(mm)：

80*80*38

Max.Air Flow(m³/h)：

Max.Pressure(Pa)：

31.3

Input Power(W)：

Speed(rpm)：

2400

Noise(db)：

Description

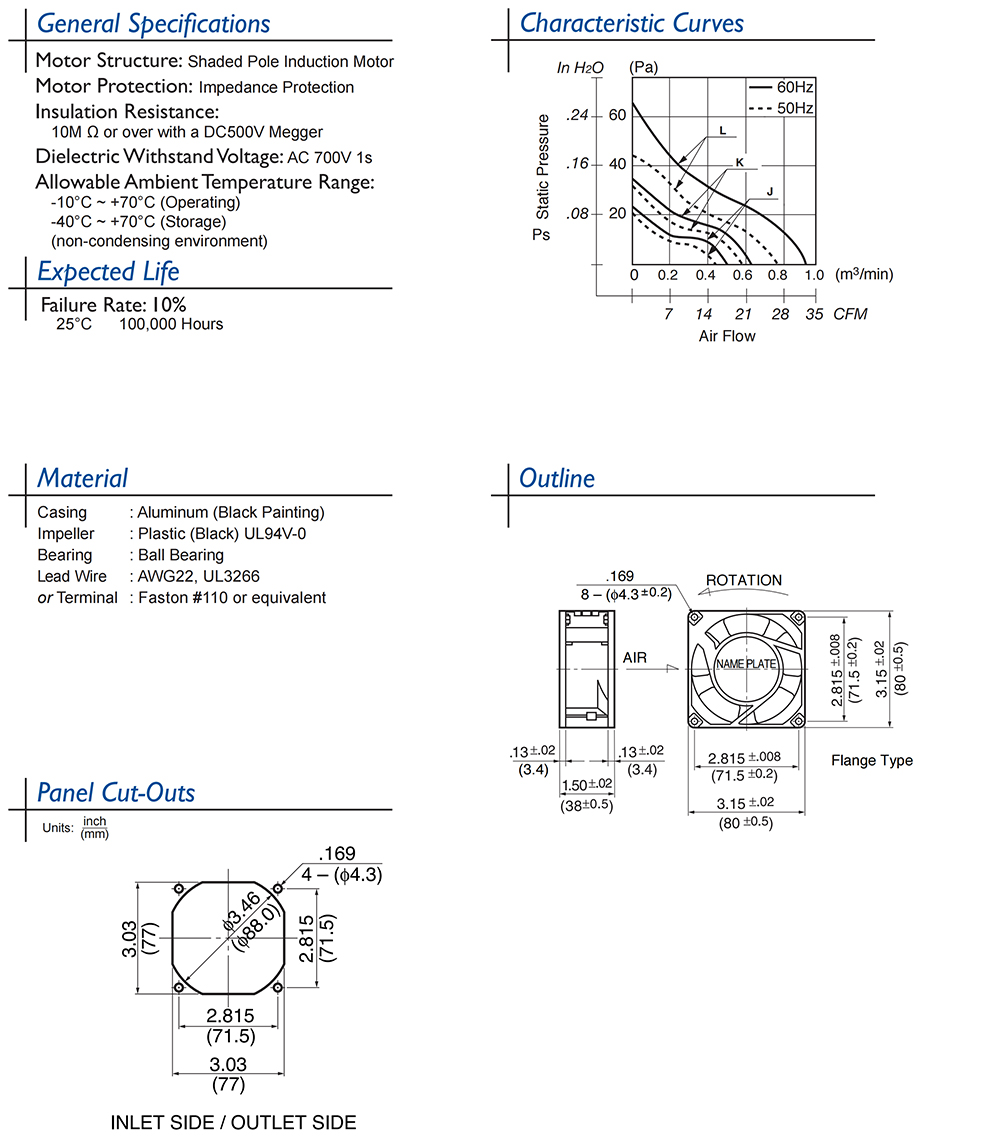

3115PS-22T-B20-B00 NMB-MAT Specification drawing：
