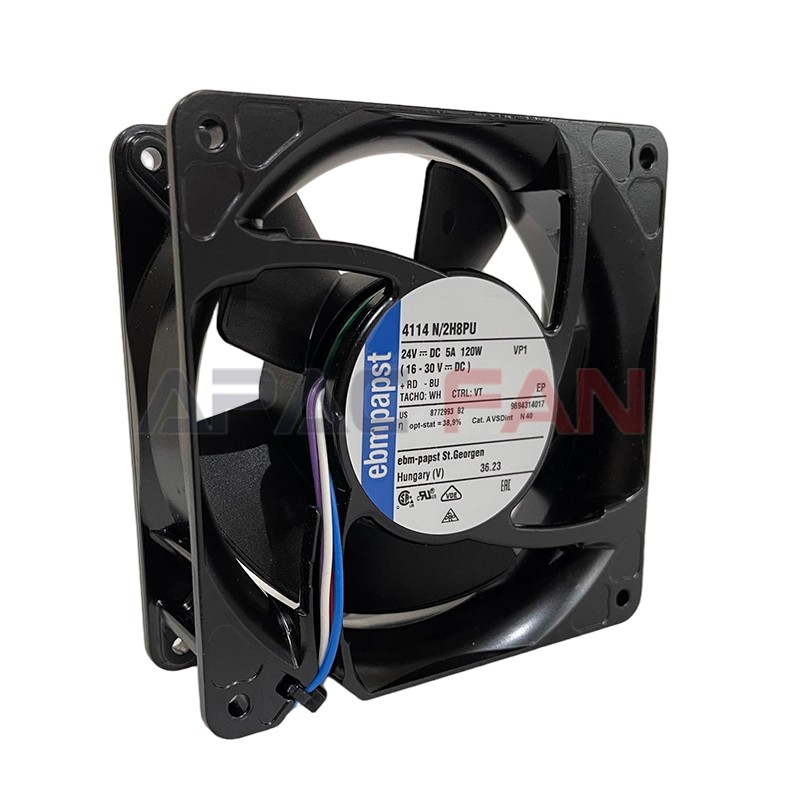

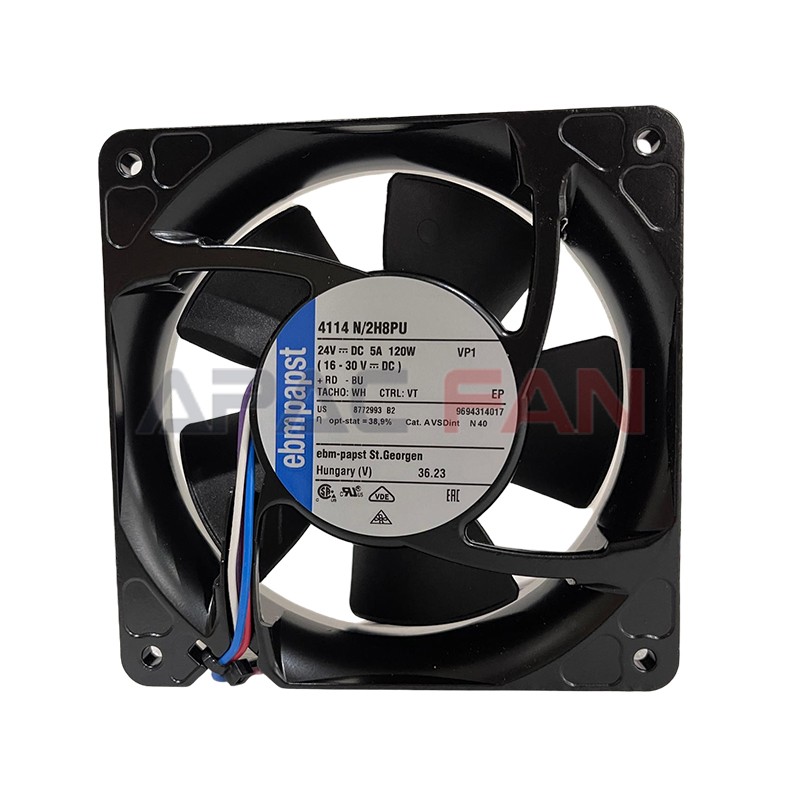

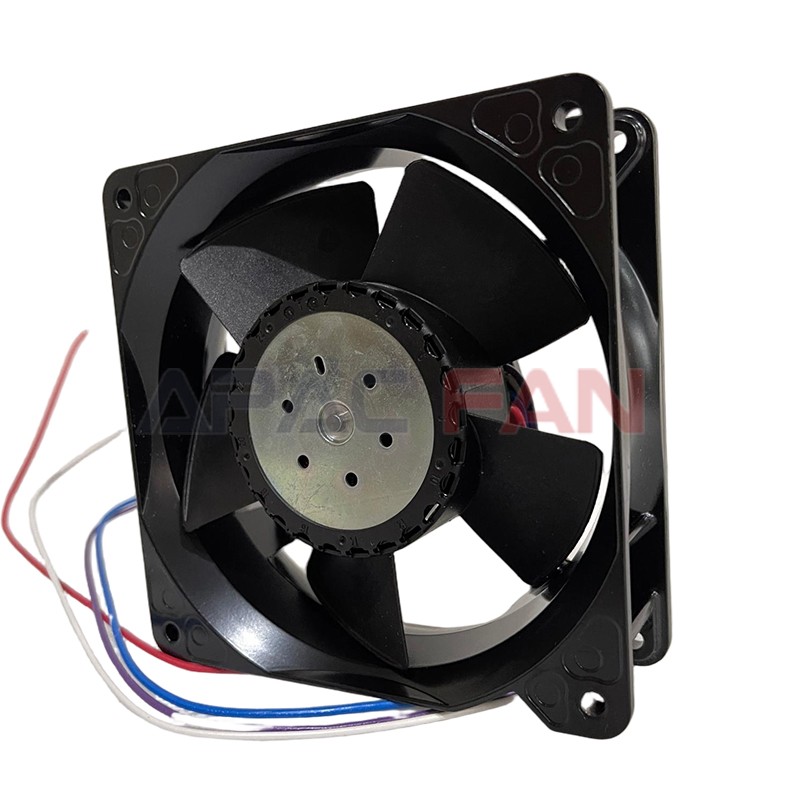

4114N/2H8PU Ebm-papst Axial Fan
Brand：
ebmpapst
Category：
Compact Fan
Description：
High heat dissipation performance
Equipped with ball bearings, the housing has an IP54 protection rating, supporting dust resistance and water splash protection, suitable for harsh operating conditions
Dimensions: 119×119×38mm, conforms to the standard 120mm fan size, easy to install and replace
Equipped with ball bearings, the housing has an IP54 protection rating, supporting dust resistance and water splash protection, suitable for harsh operating conditions
Dimensions: 119×119×38mm, conforms to the standard 120mm fan size, easy to install and replace
Nominal data
Brand：
ebmpapst
Part No.：
4114N/2H8PU
Fan Type：
Compact Fan
Rated Voltage(V)：
24
Size(mm)：
120*120*38
Max.Air Flow(m³/h)：
570
Max.Pressure(Pa)：
1230
Input Power(W)：
120
Speed(rpm)：
11000
Noise(db)：
78
Description

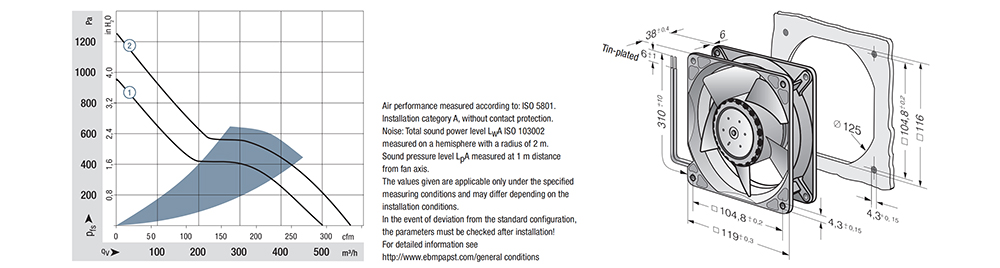

4114N/2H8PU Ebm-papst Specification drawing：
