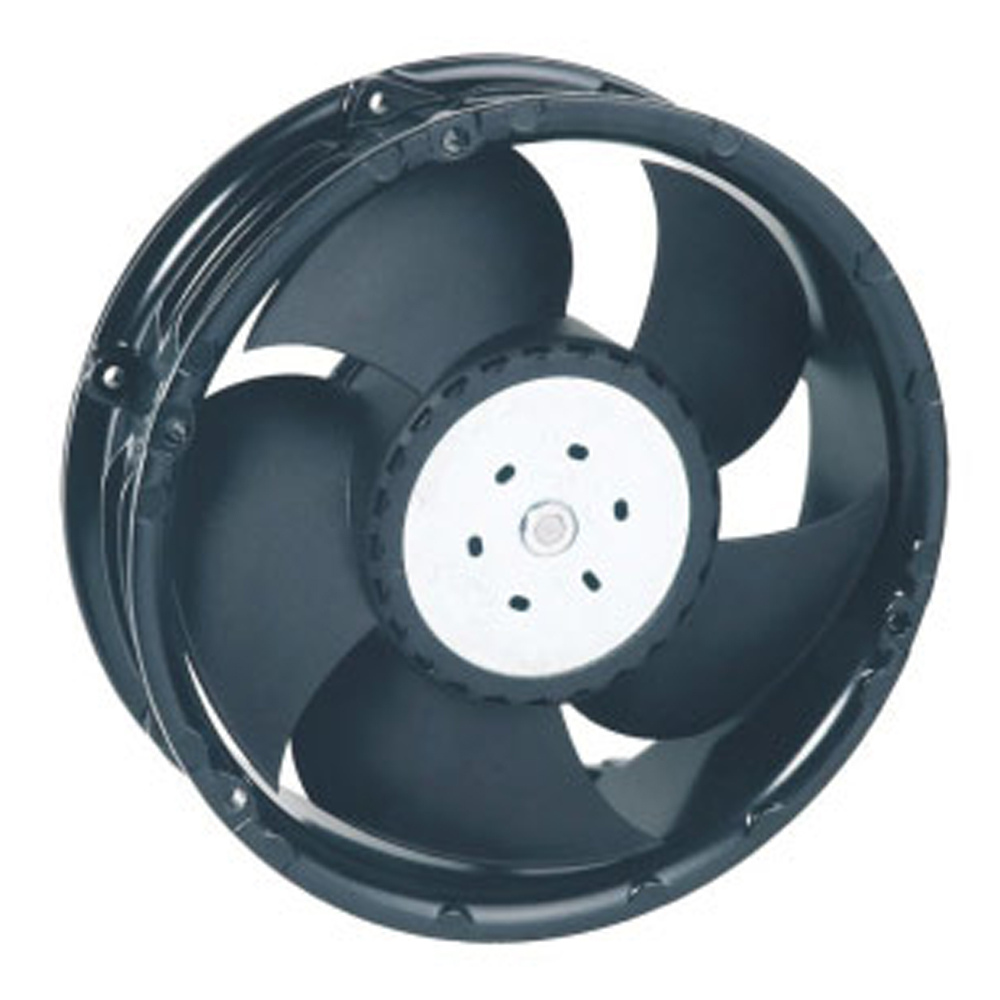

6314/2TDHP

Brand：

ebmpapst

Document：

63142TDHP.PDF

Category：

Compact Fan

Description：

Type: Compact Axial Fan
Air output (m³/h): 600
Speed (RPM): 5500
Housing material: Metal
Impeller material: Plastic

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

6314/2TDHP

Fan Type：

Compact Fan

Rated Voltage(V)：

Size(mm)：

172*150*51

Max.Air Flow(m³/h)：

600

Max.Pressure(Pa)：

655

Input Power(W)：

Speed(rpm)：

5500

Noise(db)：

Description

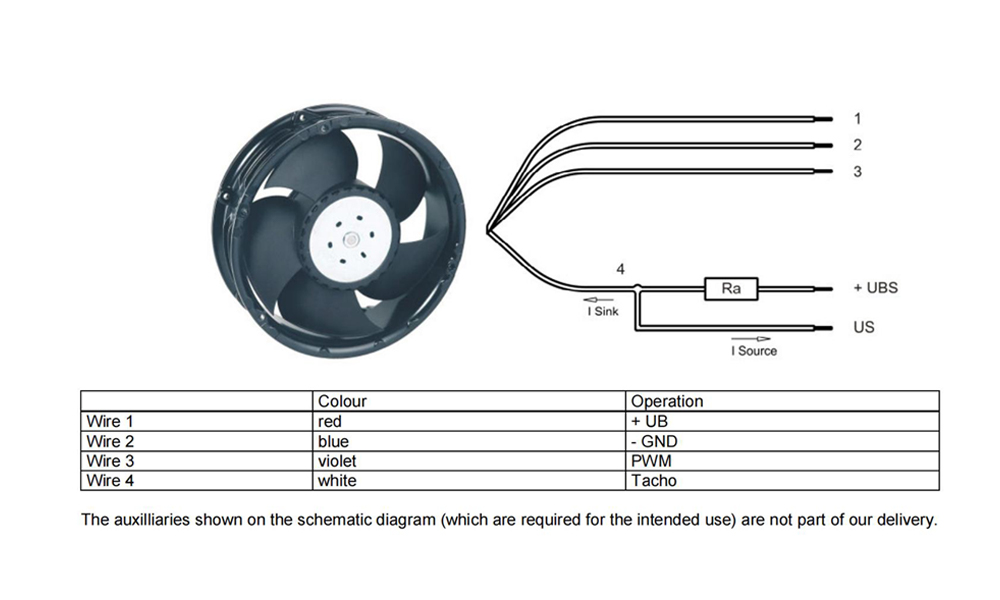

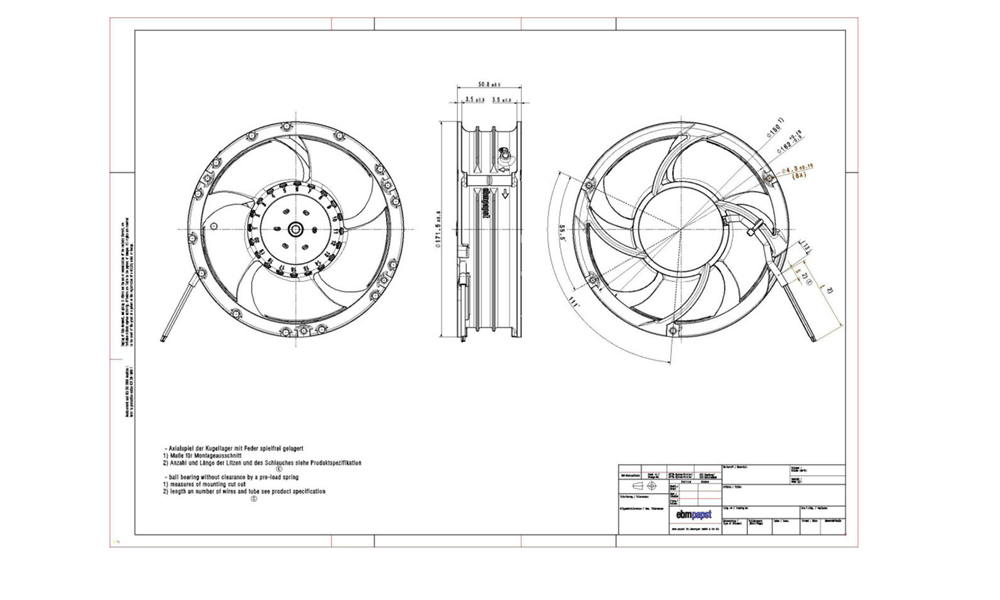

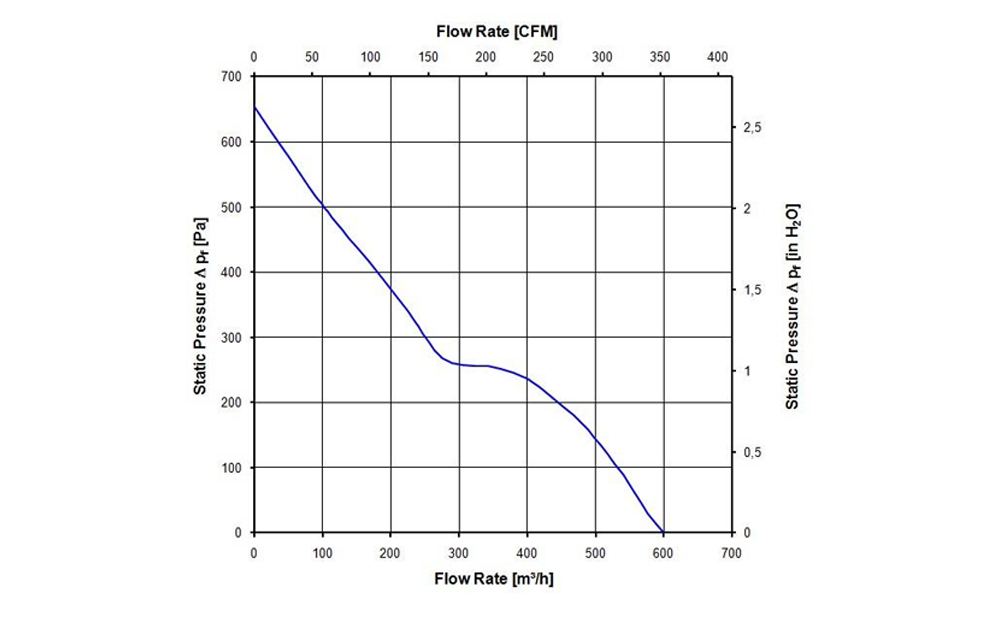

6314/2TDHP ebmpapst Specification drawing：
