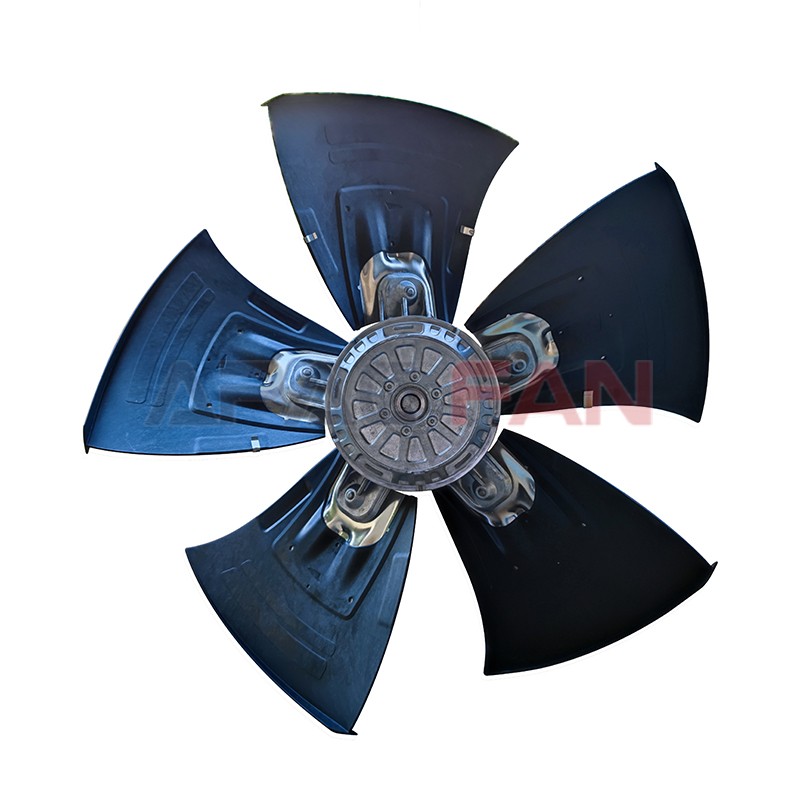

Ebm-papst A4D560-AM03-01 Condenser High-Efficiency Axial Fan | Enhanced Cooling Performance

Brand：

ebmpapst

Category：

Axial Fan

Description：

1、Low Noise & Optimized Aerodynamic Design
Advanced aerodynamic airflow design effectively reduces air noise while maintaining high airflow performance for quieter operation.
2、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

A4D560-AM03-01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

560

Max.Air Flow(m³/h)：

12600

Max.Pressure(Pa)：

140

Input Power(W)：

1160

Speed(rpm)：

1295

Noise(db)：

Description

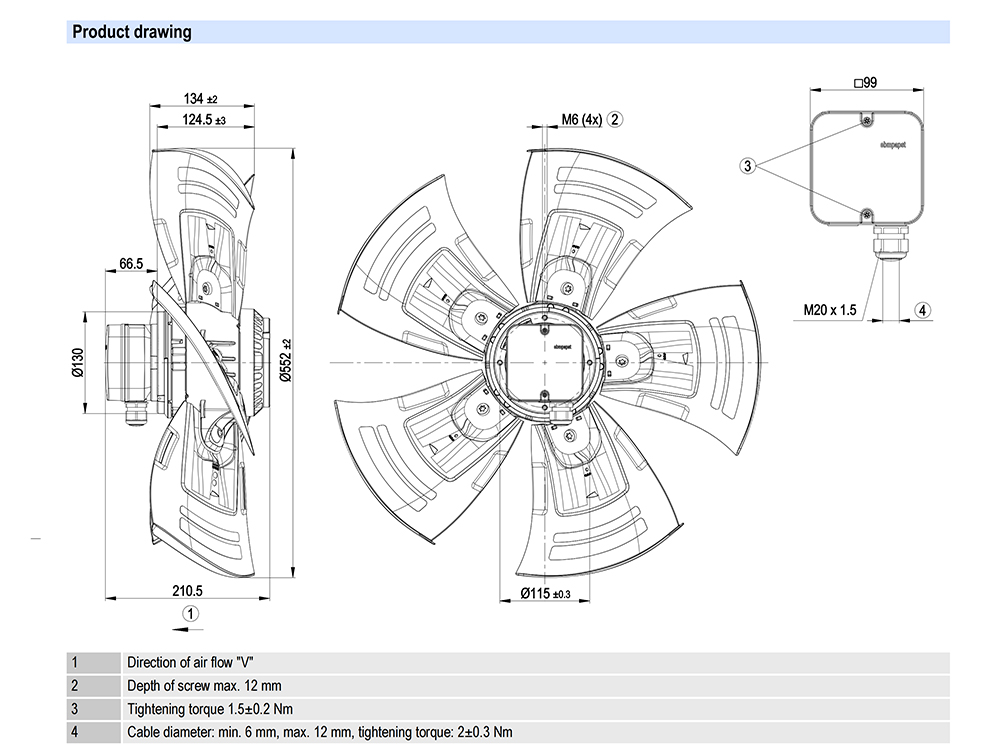

A4D560-AM03-01 Ebm-papst Specification drawing：
