AFB0712HHB-F00
Brand：
DELTA
Category：
Compact Fan
Description：

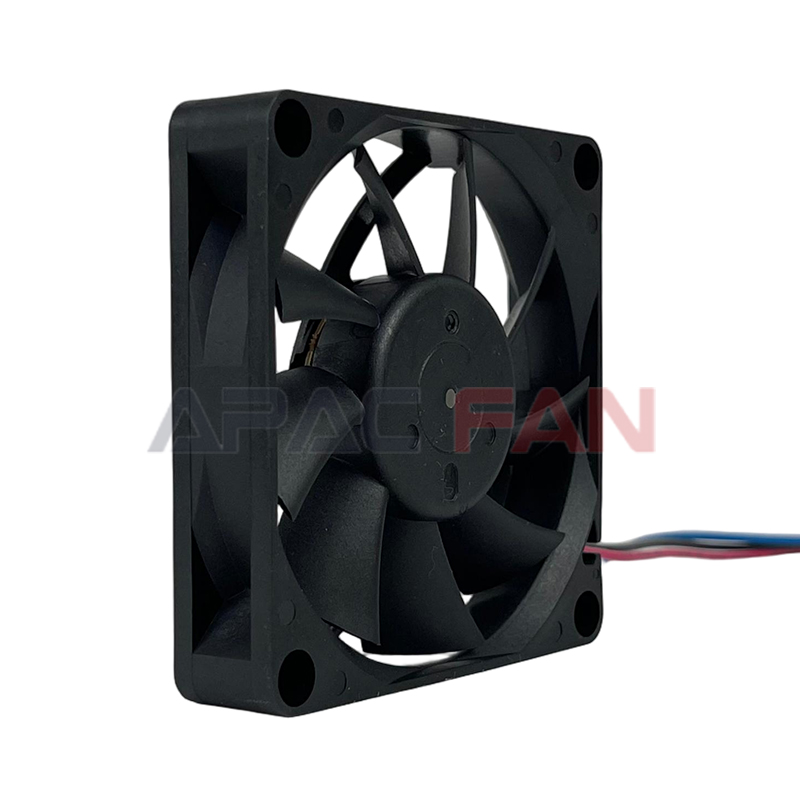

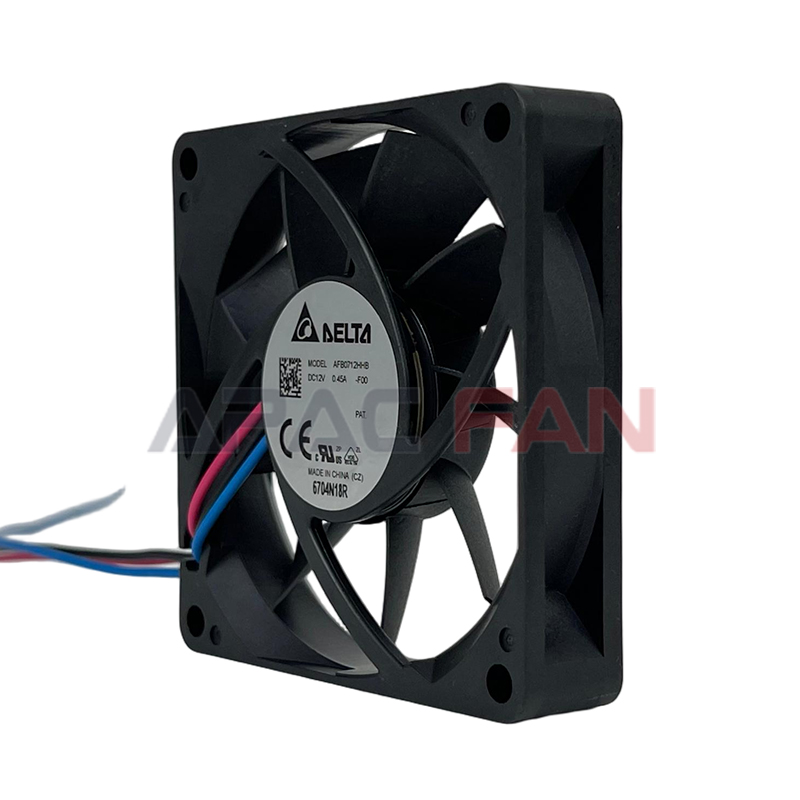

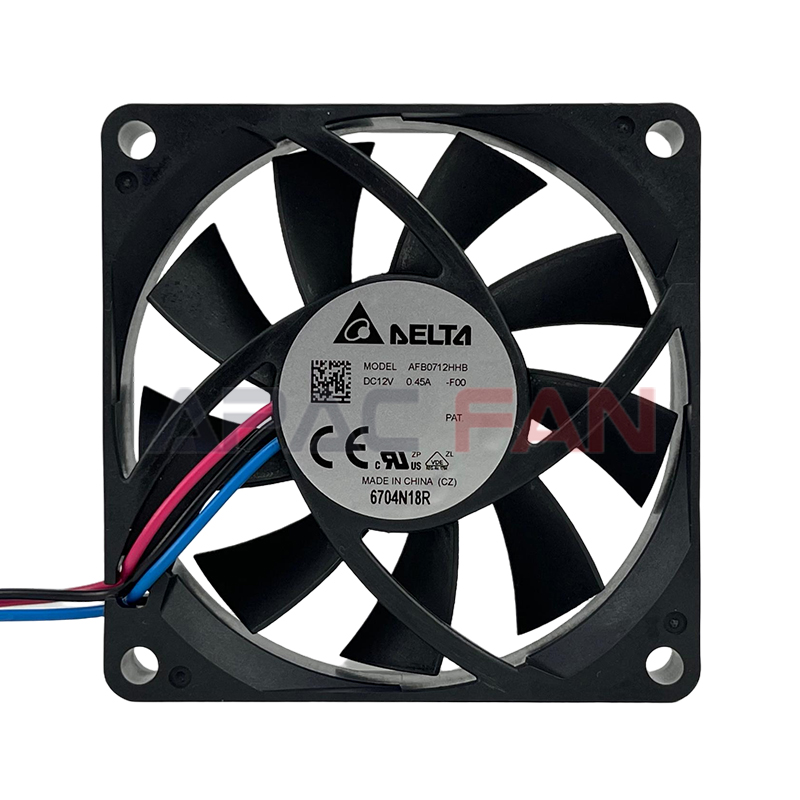

100% genuine Delta 12V DC diagnostic sensor fan (70x70x15mm). Packs 63.78 m³/h capacity running at 4300 RPM, combined with an integrated F00 frequency speed tracking feedback loop. Clean 38.5 dB acoustic profile. Plentiful warehouse stock available for fast shipping.
Nominal data
Brand：
DELTA
Part No.：
AFB0712HHB-F00
Fan Type：
Compact Fan
Rated Voltage(V)：
12
Size(mm)：
70*70*15
Max.Air Flow(m³/h)：
64
Max.Pressure(Pa)：
52.27
Input Power(W)：
3.12
Speed(rpm)：
4300
Noise(db)：
38.5
Description

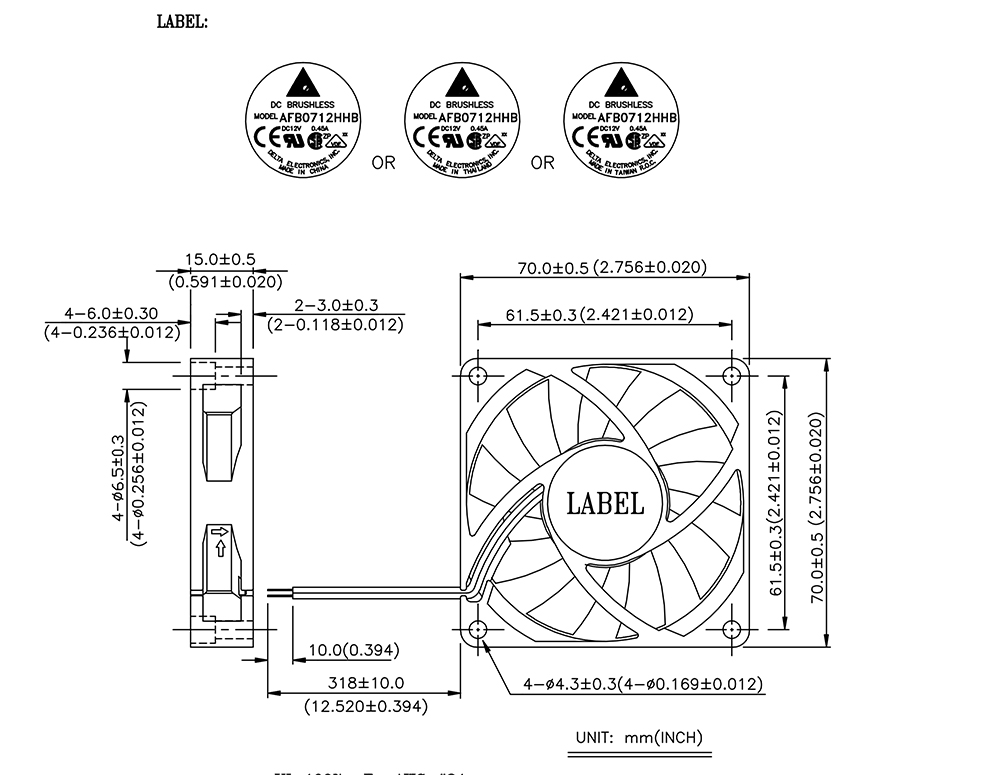

AFB0712HHB-F00 Delta Specification drawing：
