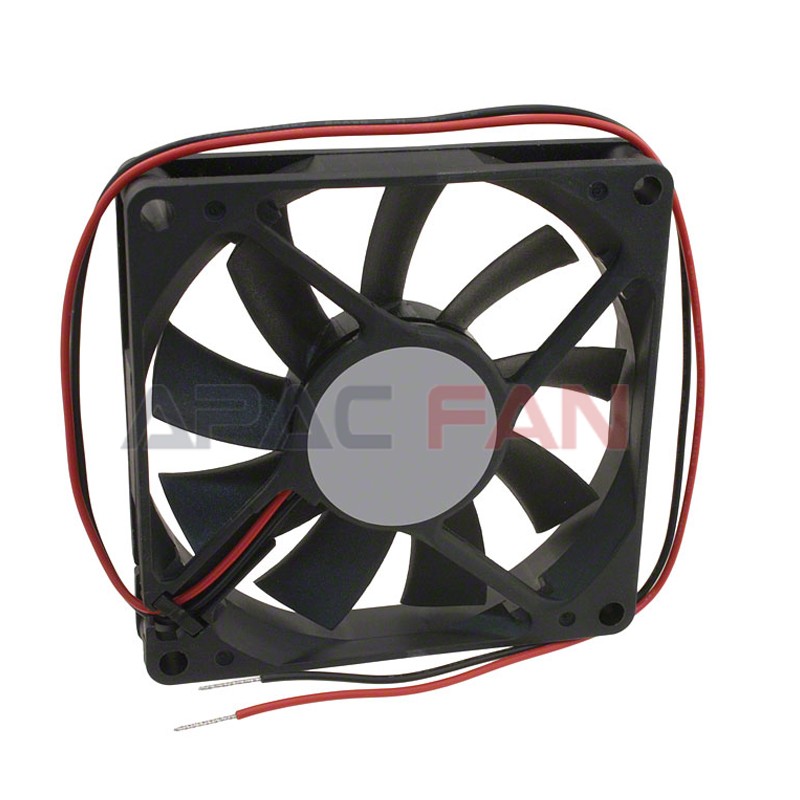

AFB0812SHB 12V DC Axial Fan
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：AFB0812SHB
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：80*80*15
Max.Air Flow(m³/h)：25
Max.Pressure(Pa)：5.5
Input Power(W)：3.24
Speed(RPM)：4000
Noise(dB)：42.5
Part No：AFB0812SHB
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：80*80*15
Max.Air Flow(m³/h)：25
Max.Pressure(Pa)：5.5
Input Power(W)：3.24
Speed(RPM)：4000
Noise(dB)：42.5
Nominal data
Brand：
DELTA
Part No.：
AFB0812SHB
Fan Type：
Axial Fan
Rated Voltage(V)：
12
Size(mm)：
80*80*15
Max.Air Flow(m³/h)：
25
Max.Pressure(Pa)：
5.5
Input Power(W)：
3.24
Speed(rpm)：
4000
Noise(db)：
42.5
Description

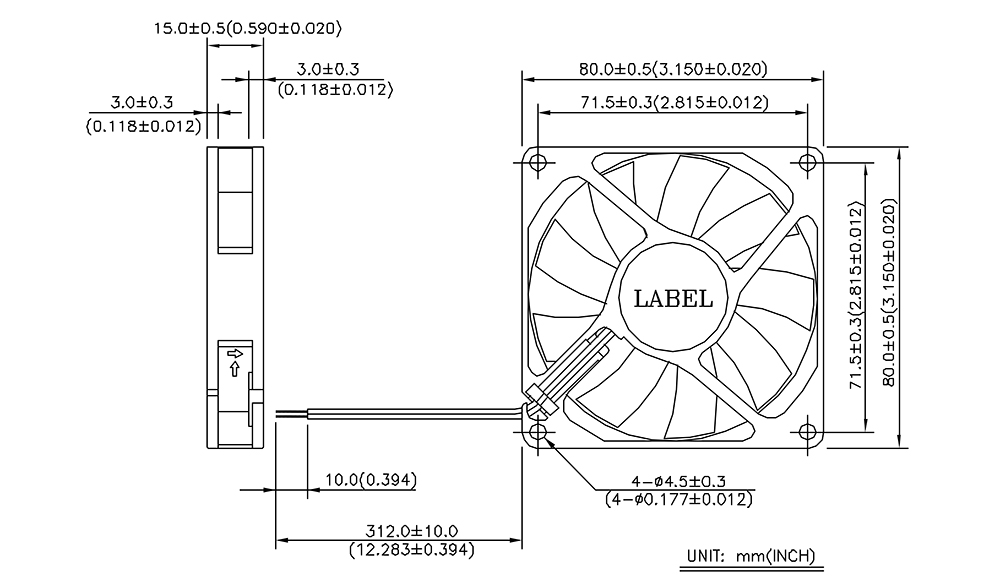

AFB0812SHB DELTA Specification drawing：
