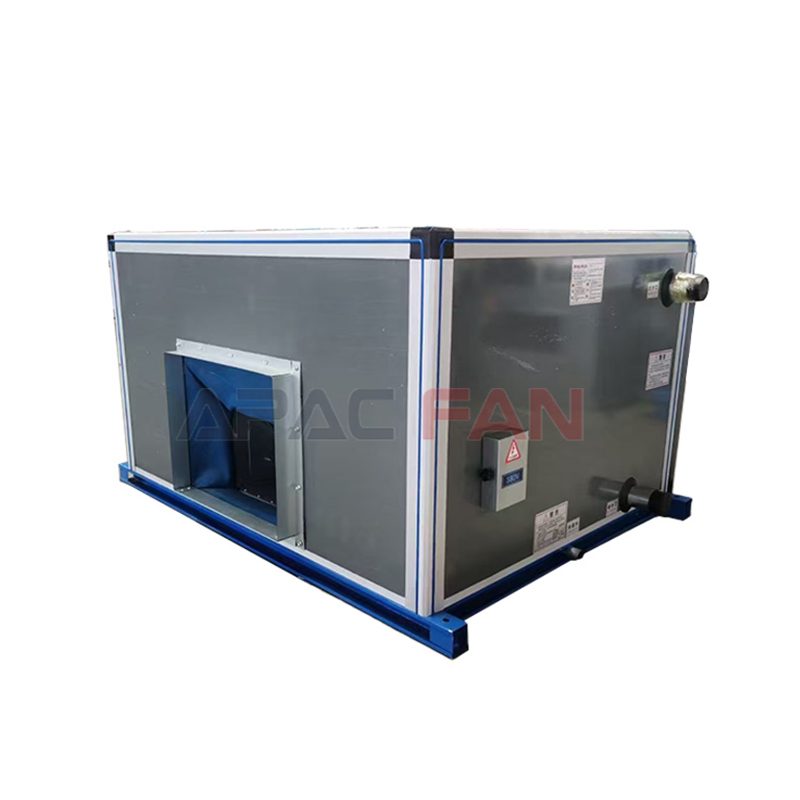

K-CT8 Series Ceiling-Mounted AHU
Brand：
Category：
Description：
The K-CT series ceiling-mounted air handling units are terminal-mounted air handling units for central air conditioning systems. They filter, cool, dehumidify, heat, humidify, and introduce fresh air.
Description
They are suitable for distributing treated air through ducts to distant locations, making them particularly well-suited for small commercial and industrial building air conditioning projects. This series includes 13 models and 39 specifications, with air volumes ranging from 1500m³/h to 15,000m³/h and cooling capacities from 8.4kW to 324.8kW. Available in creamy white or blue, these units come with built-in nylon filters. The heat exchanger utilizes 16-gauge copper tubes with high-efficiency fins, mechanically expanded for exceptional heat transfer efficiency.
| Model | Air Volume (m³/h) | External Static Pressure (Pa) | Fan Power (kW) | Unit Noise (dB) | Length (L) | Width (W) | Height (H) | Material (E) |
| K-CT8-1.5 | 1500 | 146 | 0.32 | 58 | 1105 | 700 | 500 | 304 |
| K-CT8-2 | 2000 | 145 | 0.37 | 59 | 1105 | 840 | 500 | 304 |
| K-CT8-2.5 | 2500 | 146 | 0.45 | 59 | 1105 | 980 | 500 | 304 |
| K-CT8-3 | 3000 | 136 | 0.55 | 60 | 1105 | 1120 | 500 | 304 |
| K-CT8-4 | 4000 | 146 | 0.37x2 | 61 | 1105 | 1400 | 500 | 304 |
| K-CT8-5 | 5000 | 150 | 0.45x2 | 62 | 1105 | 1680 | 500 | 304 |
| K-CT8-6 | 6000 | 138 | 0.55×2 | 62 | 1105 | 1960 | 500 | 304 |
| K-CT8-7 | 7000 | 178 | 0.75x2 | 63 | 1105 | 1960 | 580 | 380 |
| K-CT8-8 | 8000 | 252 | 0.8x2 | 63 | 1305 | 1960 | 620 | 418 |
| K-CT8-10 | 10000 | 308 | 1.5x2 | 66 | 1305 | 2130 | 680 | 494 |
| K-CT8-12 | 12000 | 346 | 1.8x2 | 69 | 1305 | 2230 | 740 | 570 |
| K-CT8-13.5 | 13500 | 350 | 2.2x2 | 72 | 1305 | 2340 | 780 | 608 |
| K-CT8-15 | 15000 | 395 | 3.0x2 | 73 | 1305 | 2340 | 850 | 684 |
