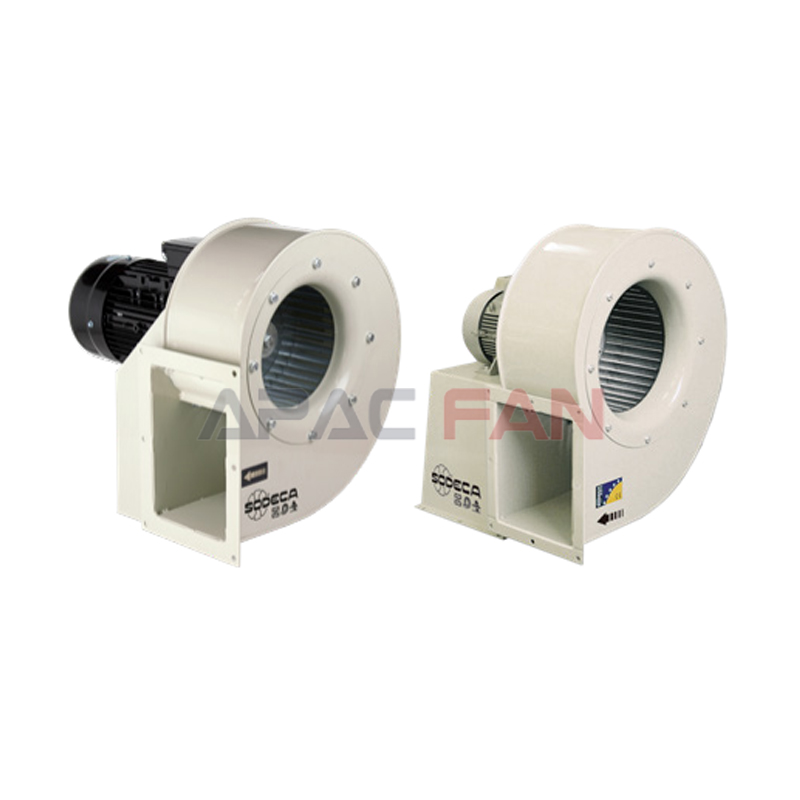

CMP Single inlet medium pressure centrifugal fans with sheet steel casing and impeller
Nominal data
Description
Fan:
• Sheet steel casing, except models 38-2M and 380 in cast aluminum.
• Forward curved impeller in galvanised sheet steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC, maximum +100 ºC models 38-2M and 380.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection except single-phase models with IP54 protection. Models 38-2M and 380 with IP21 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
• Models 38-2M and 380: Unpainted casing.
On request:
• Special windings for different voltages, except models 38-2M and 380.
• Fan prepared to transport air up to +250 ºc, except models 38-2M and 380.
• Stainless steel fan, except models 38-2M and 380.
• Category 2 ATEX certification (see CMP/ATEX series), except models 38-2M and 380.
• Models 38-2M and 380: Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
CMP-38-2M/E 200x180x180
CMP-38-2M 200x180x180
CMP-512-2T 274x314x338
CMP-512-2M 274x314x338
CMP-512-4T 274x314x338
CMP-512-4M 274x314x338
CMP-514-2T 274x314x338
CMP-514-2M 274x314x338
CMP-514-4T 274x314x338
CMP-514-4M 274x314x338
CMP-616-2T 480x400x500
CMP-616-2M 480x400x500
CMP-616-4T 480x400x500
CMP-616-4M 480x400x500
CMP-620-2T 402x407x409
CMP-620-2M 402x407x409
CMP-620-4T 402x407x409
CMP-620-4M 402x407x409
CMP-718-2T IE3 400x400x445
CMP-718-2M 400x400x445
CMP-718-4T 400x400x445
CMP-718-4M 400x400x445
CMP-820-2T IE3 395x465x451
CMP-820-2M 395x465x451
CMP-820-4T 395x465x451
CMP-820-4M 395x465x451
CMP-922-2T-1.5 IE3 469x579x528
CMP-922-2T-2 IE3 469x579x528
CMP-922-2T-3 IE3 469x579x528
CMP-922-4T 469x579x528
CMP-1025-2T-3 IE3 469x579x528
CMP-1025-2T-4 IE3 469x579x528
CMP-1025-4T IE3 469x579x528
CMP-1128-2T-4 IE3 810x810x810
CMP-1128-2T-5.5 IE3 810x810x810
CMP-1128-4T IE3 810x810x810
CMP-1128-6T IE3 810x810x810
CMP-1231-4T-3 IE3 810x810x810
CMP-1231-4T-4 IE3 810x810x810
CMP-1231-4T-5.5 IE3 810x810x810
CMP-1231-6T IE3 810x810x810
CMP-1435-4T-4 IE3 635x725x880
CMP-1435-4T-5.5 IE3 635x725x880
CMP-1435-4T-7.5 IE3 635x725x880
CMP-1640-4T-5.5 IE3 790x780x1040
CMP-1640-4T-7.5 IE3 790x780x1040
CMP-1640-4T-10 IE3 790x780x1040
CMP-1640-6T IE3 790x780x1040
CMP-1845-4T-7.5 IE3 780x800x1070
CMP-1845-4T-10 IE3 780x800x1070
CMP-1845-6T IE3 780x800x1070
CMP-2050-4T-10 IE3 1120x990x1300
CMP-2050-4T-15 IE3 1120x990x1300
CMP-2050-4T-20 IE3 1120x990x1300
CMP-2050-6T IE3 1120x990x1300
