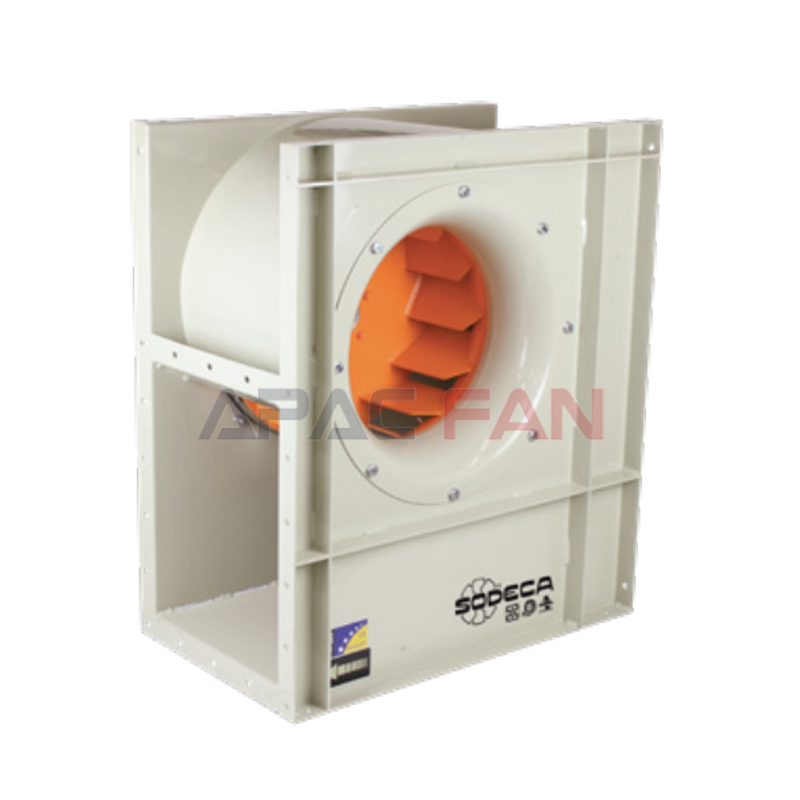

CMR Very robust single inlet medium pressure centrifugal fans, equipped with a backward curved impeller
Nominal data
Description
Fan:
• Sheet steel casing.
• Backward curved impeller in highly robust sheet steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Special windings for different voltages.
• Fan prepared to transport air up to +250 ºC.
• Stainless steel fan.
• Category 2 ATEX certification (see CMR/ATEX series).
CMR-1031-2T IE3 670x675x785
CMR-1135-2T IE3 660x710x860
CMR-1240-2T IE3 810x810x960
CMR-1240-4T IE3 810x810x960
CMR-1445-2T IE3 925x935x1220
CMR-1445-4T IE3 925x935x1220
CMR-1650-2T IE3 1120x990x1140
CMR-1650-4T IE3 1120x990x1140
CMR-1856-4T IE3 1060x985x1260
CMR-2063-4T IE3 1260x1110x1460
CMR-2063-6T IE3 1260x1110x1460
CMR-2271-4T IE3 1370x1395x1745
CMR-2271-6T IE3 1370x1395x1745
CMR-2380-4T IE3 1450x1450x1733
CMR-2380-6T IE3 1450x1450x1733
