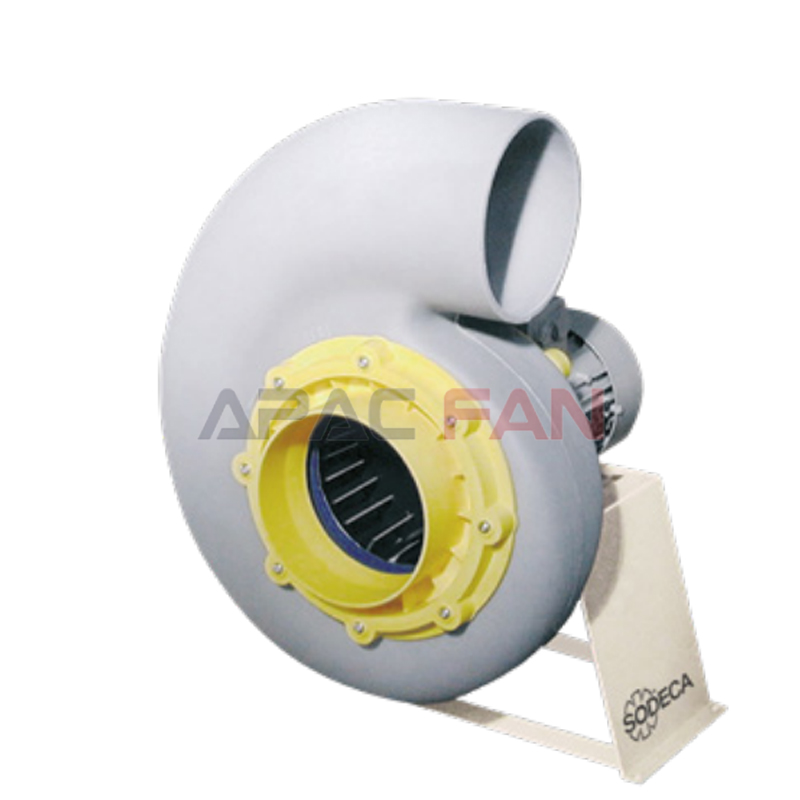

CPV Single inlet anti-corrosive centrifugal fans made of polypropylene

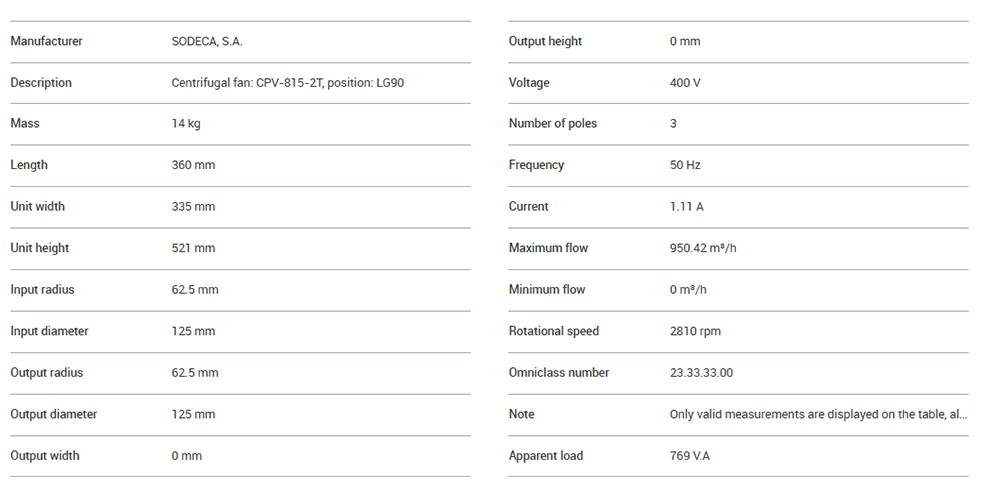

Nominal data
Description
Fan:
• Polypropylene casing.
• Forward curved impeller in polypropylene.
• Maximum temperature of air to be carried: -25 ºC +70 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive in plastic material.
On request:
• Special windings for different voltages.
• Category 2 ATEX certification (see CPV/ATEX series).
CPV-720-2T 400x420x520
CPV-815-2T 590x590x500
CPV-815-4T 590x590x500
CPV-825-2T IE3 610x615x740
CPV-930-2T IE3 790x780x1040
CPV-1020-2T IE3 690x580x610
CPV-1020-4T 690x580x610
CPV-1325-2T IE3 605x660x860
CPV-1325-4T 605x660x860
CPV-1325-6T 605x660x860
CPV-1630-4T IE3 810x720x1060
CPV-1630-6T 810x720x1060
CPV-1840-4T IE3 790x780x1040
CPV-1840-6T IE3 790x780x1040
CPV-1942-4T-7.5 IE3 1160x1060x1360
CPV-1942-4T-10 IE3 1160x1060x1360
CPV-1942-6T IE3 1160x1060x1360
CPV-2045-4T IE3 950x1010x1270
