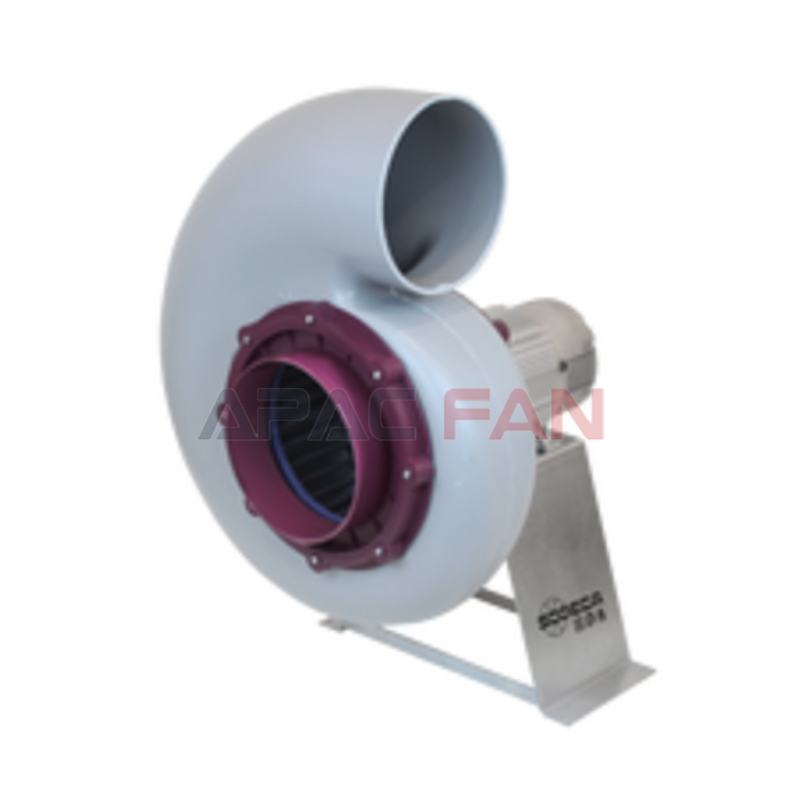

CPV/EC Single inlet anti-corrosive centrifugal fans made of polypropylene, with EC Technology IE5 motor
Nominal data
Description
Single inlet anti-corrosive centrifugal fans made of polypropylene, equipped with EC Technology IE5 motor with integrated electronics, specially designed for high energy efficiency.
Fan:
• Polypropylene casing.
• Forward curved impeller in polypropylene.
• Maximum temperature of air to be carried: -25 ºC +70 ºC.
Motor:
• High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
• IE5 efficiency motors, class F and IP55 protection.
• Single-phase 220-277 V 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
• CPC: Constant pressure control.
• CFC: Constant flow control.
• DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
• External sensor: Compatible with temperature, humidity, air quality or CO sensor.
• Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
• Anti-corrosive in plastic material.
CPV/EC-825-2M-1.5 IE5 610x615x740
CPV/EC-1020-2M-1 IE5 690x580x610
CPV/EC-1020-4M-0.33 IE5 690x580x610
CPV/EC-1325-4M-0.5 IE5 605x660x860
CPV/EC-1630-6M-1 IE5 810x720x1060
