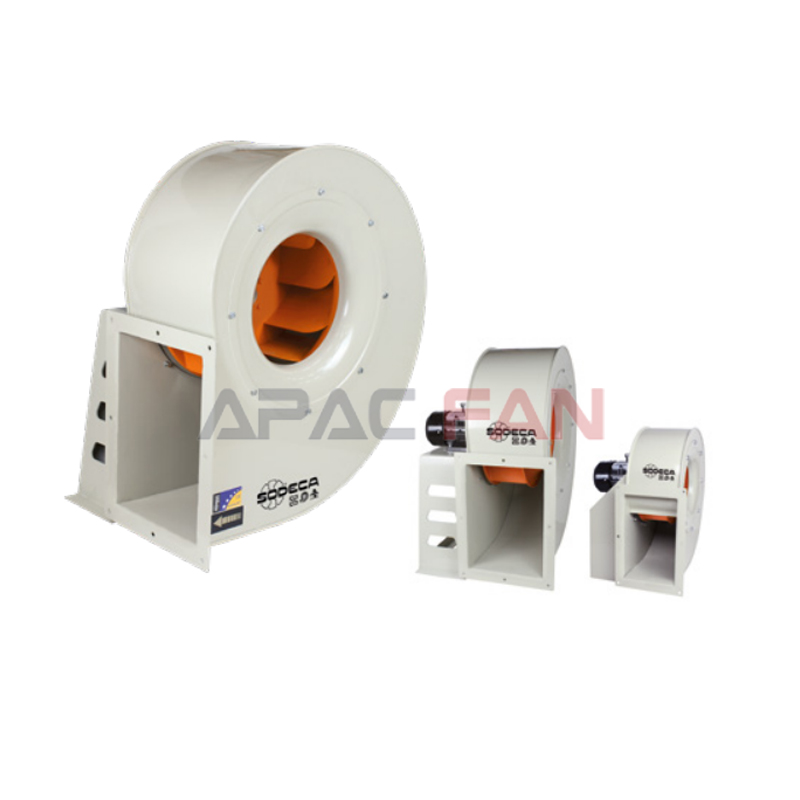

CRL Centrifugal medium pressure single inlet fans with backward curved impeller
Nominal data
Description
Fan:
• Sheet steel casing.
• Backward curved impeller made of sheet steel.
• Maximum temperature of air to be carried: -25 ºC +120 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz.
• Working temperature: -25 ºC +50 ºC.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• 60 Hz models.
• Special windings for different voltages.
• Fan prepared to transport air up to +250 ºC.
• Stainless steel fan.
• ATEX certification.
CRL-822-2T-0.33 469x579x528
CRL-925-2T-0.5 469x579x528
CRL-1028-2T-0.75 610x615x740
CRL-1031-2T-1.5 IE3 750x750x910
CRL-1135-2T-3 IE3 635x725x880
CRL-1240-2T-4 IE3 790x780x1040
CRL-1240-4T-1 IE3 790x780x1040
CRL-1445-4T-1.5 IE3 780x800x1070
CRL-1650-4T-2 IE3 925x935x1220
CRL-1856-4T-3 IE3 1060x985x1260
