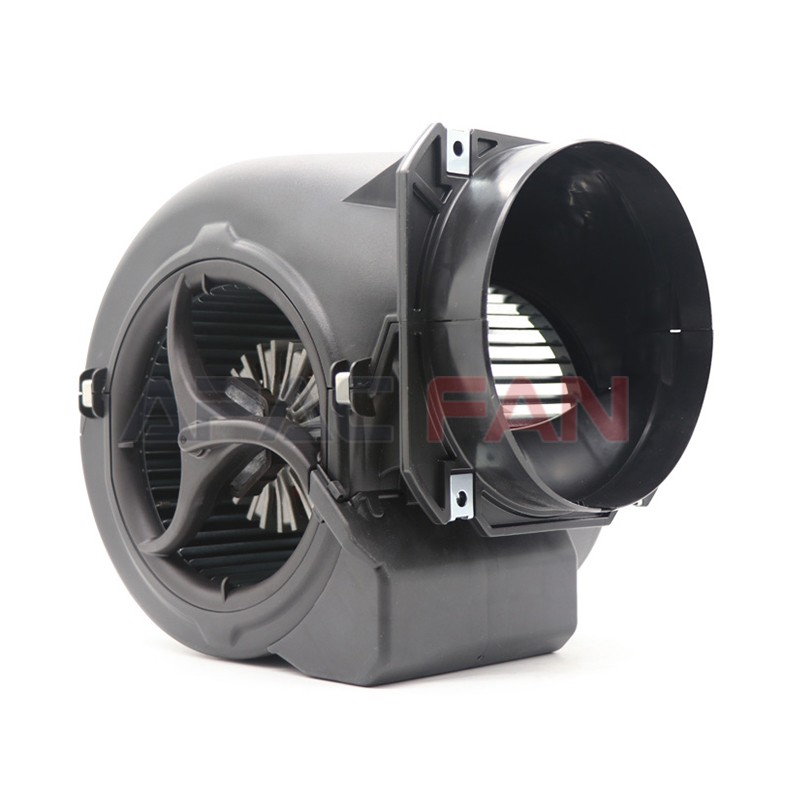

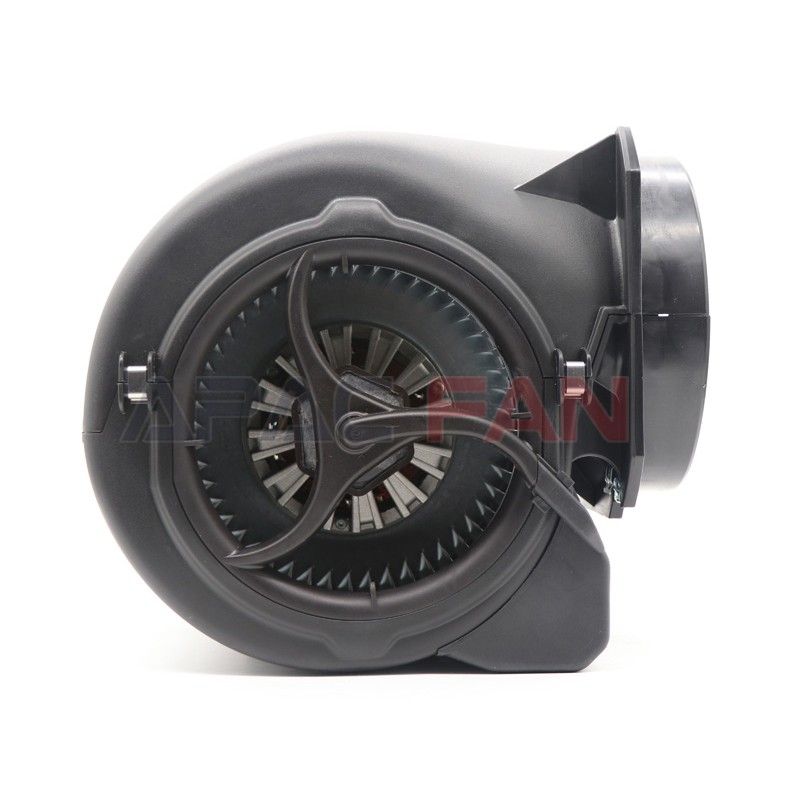

D2E146-HT67-31

Brand：

ebmpapst

Document：

D2E146HT6731.PDF

Category：

Axial Fan

Description：

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

D2E146-HT67-31

Fan Type：

Axial Fan

Rated Voltage(V)：

230

Size(mm)：

146

Max.Air Flow(m³/h)：

875

Max.Pressure(Pa)：

200

Input Power(W)：

400

Speed(rpm)：

2100

Noise(db)：

Description

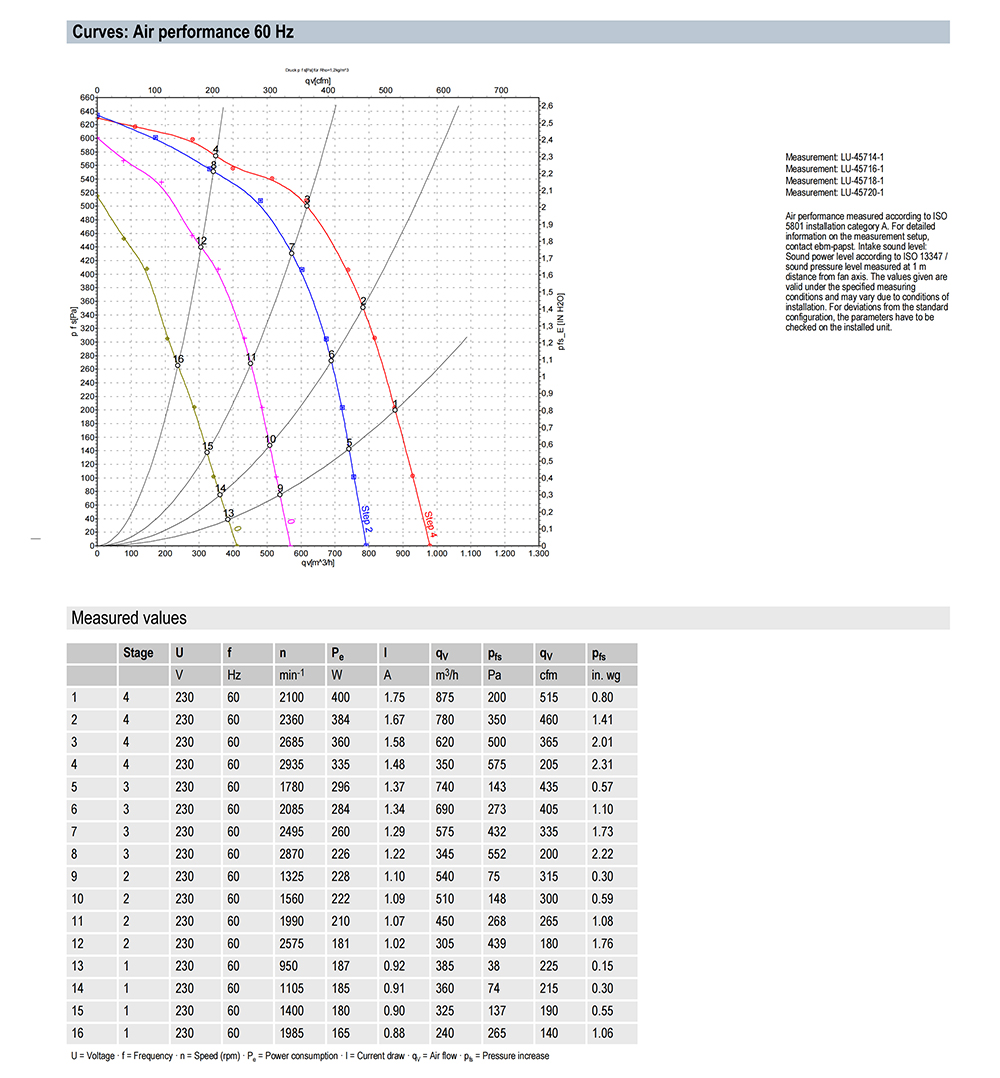

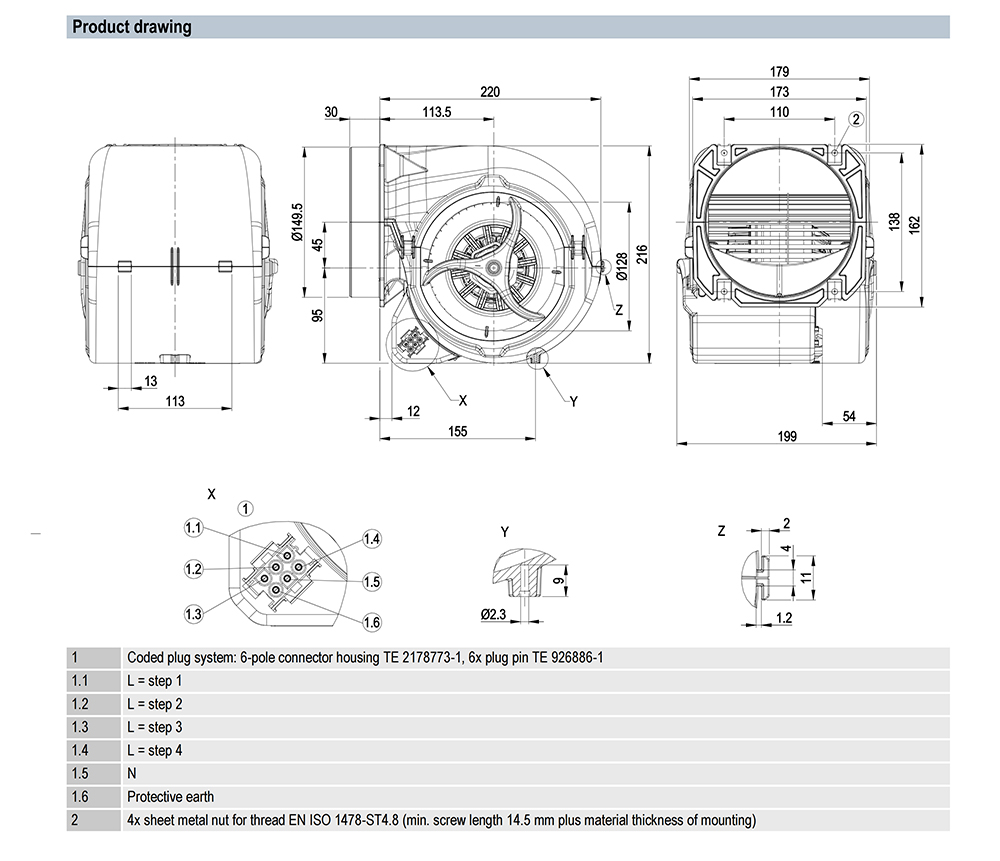

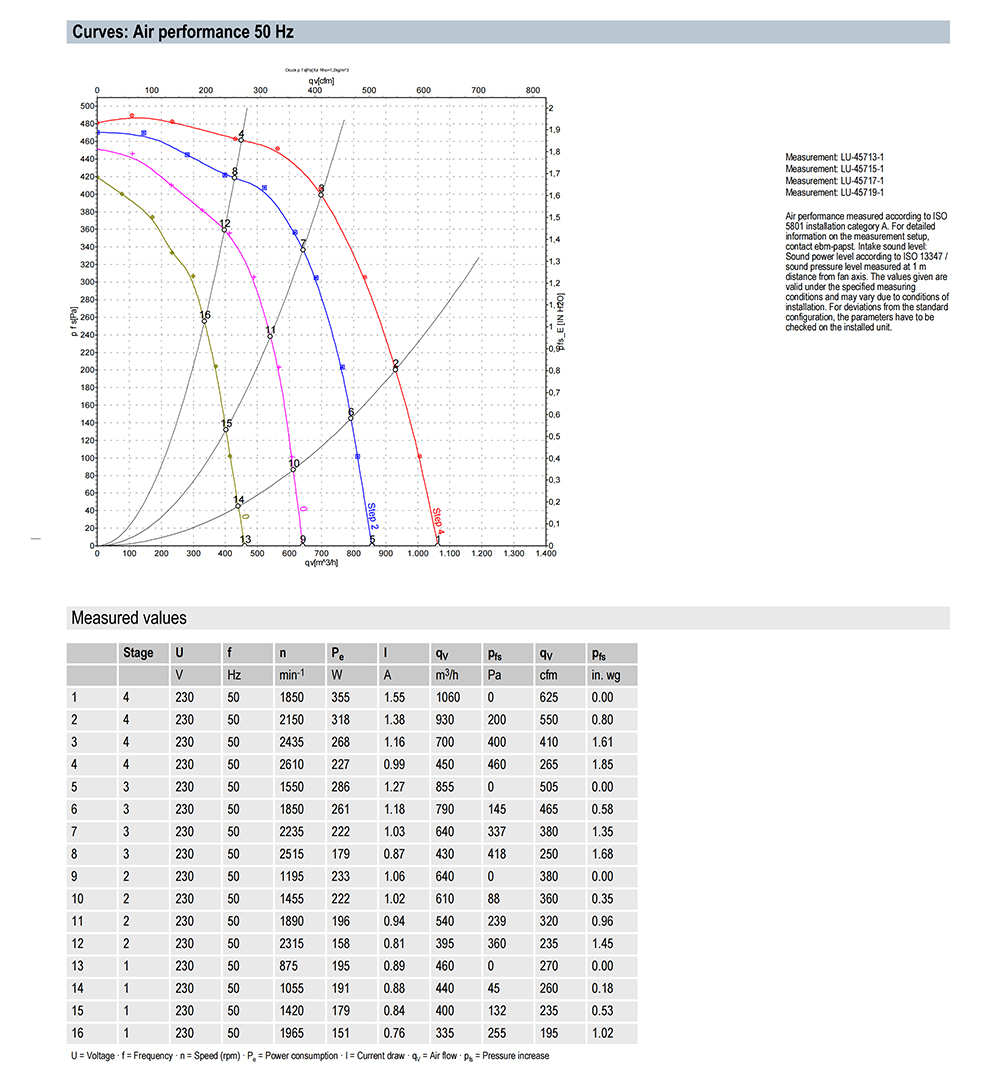

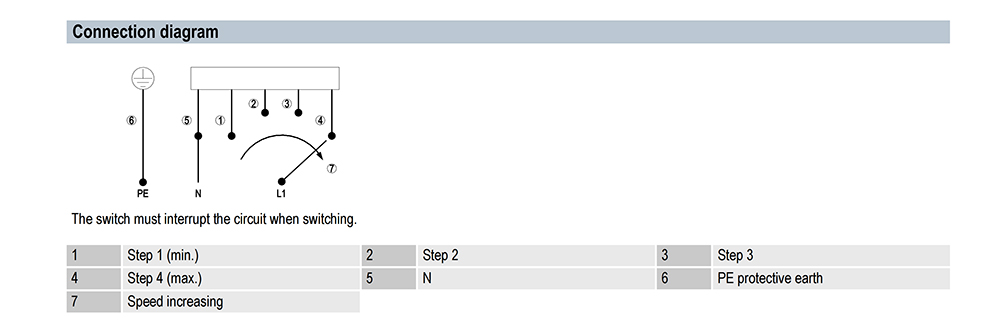

D2E146-HT67-31 Ebm-papst Specification Drawing：
