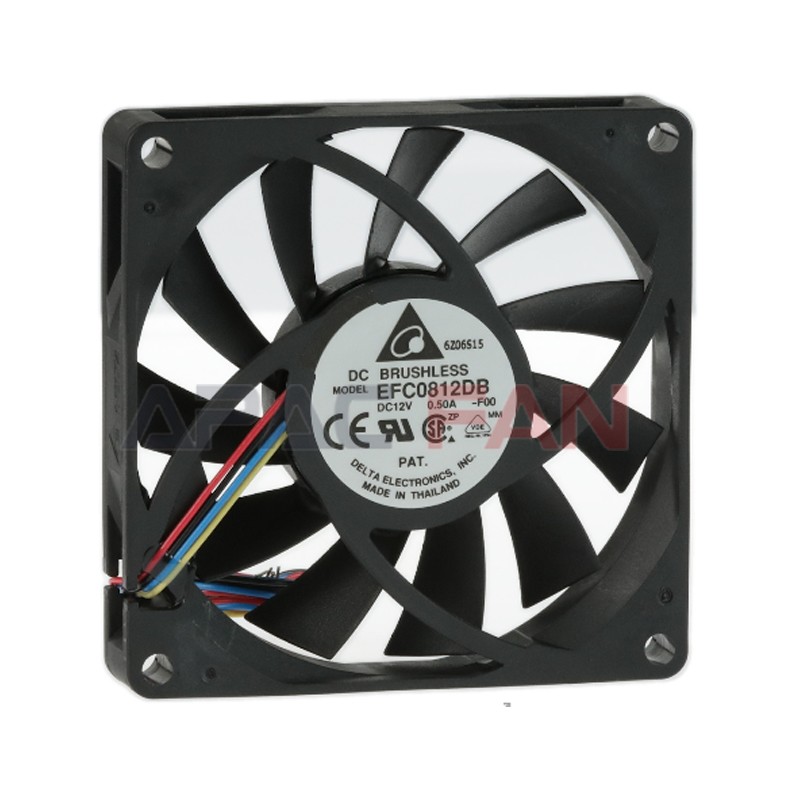

EFC0812DB-F00
Brand：
DELTA
Category：
Axial Fan
Description：
Brand：Delta
Part No：EFC0812DB-F00
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：80*80*15
Max.Air Flow(m³/h)：28.7
Max.Pressure(Pa)：4.4
Input Power(W)：3.96
Speed(RPM)：3800
Noise(dB)：41
Part No：EFC0812DB-F00
Fan Type：Compact Fan
Rated Voltage(V)：12
Size(mm)：80*80*15
Max.Air Flow(m³/h)：28.7
Max.Pressure(Pa)：4.4
Input Power(W)：3.96
Speed(RPM)：3800
Noise(dB)：41
Nominal data
Brand：
DELTA
Part No.：
EFC0812DB-F00
Fan Type：
Axial Fan
Rated Voltage(V)：
12
Size(mm)：
80*80*15
Max.Air Flow(m³/h)：
29
Max.Pressure(Pa)：
4.4
Input Power(W)：
3.96
Speed(rpm)：
3800
Noise(db)：
41
Description

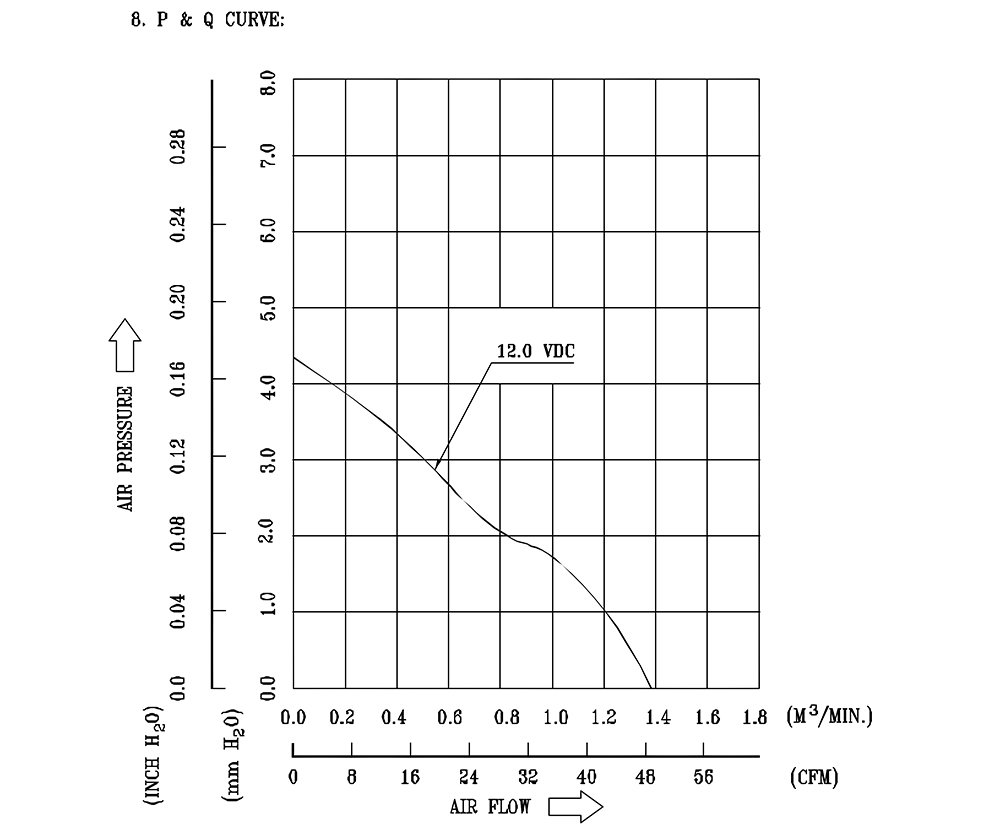

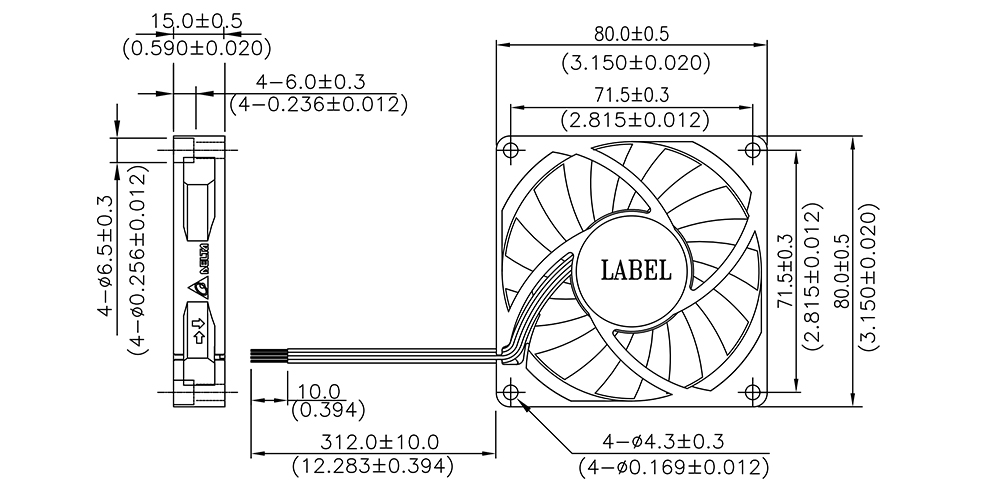

EFC0812DB-F00 DELTA Specification drawing：
