G3G315-M3G150FF Ebm-papst Centrifugal Fan
Brand：
ebmpapst
Category：
Centrifugal Fan
Description：
Brand：ebmpapst
Part No：G3G315-M3G150FF
Fan Type：Centrifugal Fan
Rated Voltage(V)：3~ 380-480
Size(mm)：315
Max.Air Flow(m³/h)：4600
Max.Pressure(Pa)：6500
Input Power(W)：8000
Speed(rpm)：6000
Part No：G3G315-M3G150FF
Fan Type：Centrifugal Fan
Rated Voltage(V)：3~ 380-480
Size(mm)：315
Max.Air Flow(m³/h)：4600
Max.Pressure(Pa)：6500
Input Power(W)：8000
Speed(rpm)：6000
Nominal data
Brand：
ebmpapst
Part No.：
G3G315-M3G150FF
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
3~380-480
Size(mm)：
315
Max.Air Flow(m³/h)：
4600
Max.Pressure(Pa)：
6500
Input Power(W)：
8000
Speed(rpm)：
6000
Noise(db)：
Description

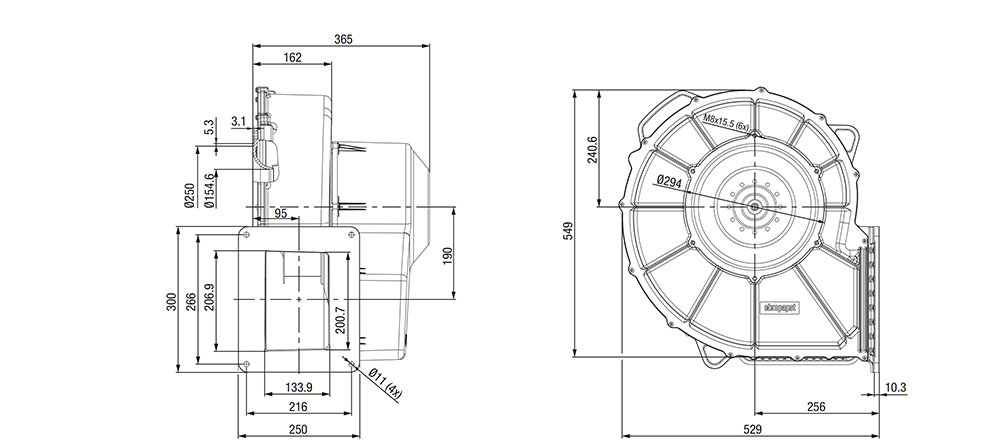

G3G315-M3G150FF Ebm-papst Specification drawing：
