GTB056NUT35R

Brand：

DELTA

Category：

Centrifugal Fan

Description：

Brand：Delta
Part No：GTB056NUT35R
Fan Type：Centrifugal Fan
Rated Voltage(V)： 400

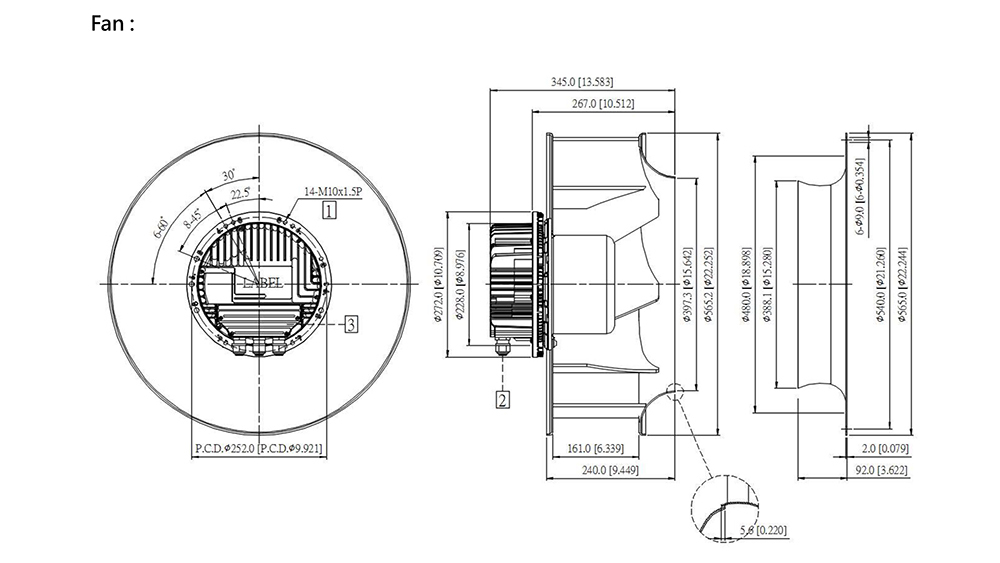

Size(mm)： ψ565 x 345
Max.Air Flow(m³/h)：13852
Max.Pressure(Pa)：1000
Input Power(W)：2103
Speed(RPM)：1550
Noise(dB)：85.5

00852-56261528 info@apacfan.com

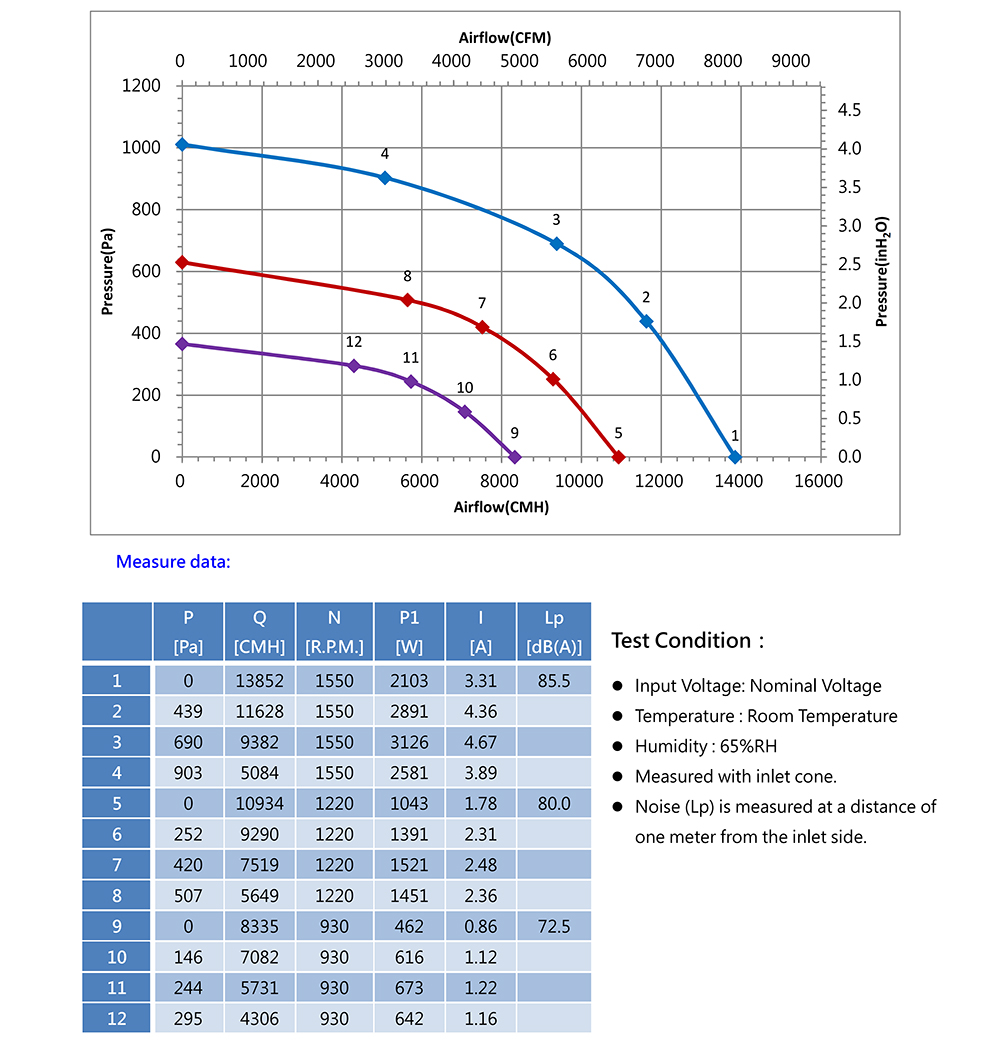

Nominal data

Brand：

DELTA

Part No.：

GTB056NUT35R

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

Max.Air Flow(m³/h)：

13852

Max.Pressure(Pa)：

1000

Input Power(W)：

2103

Speed(rpm)：

1550

Noise(db)：

85.5

Description

GTB056NUT35R Delta DC Axial Fan:
