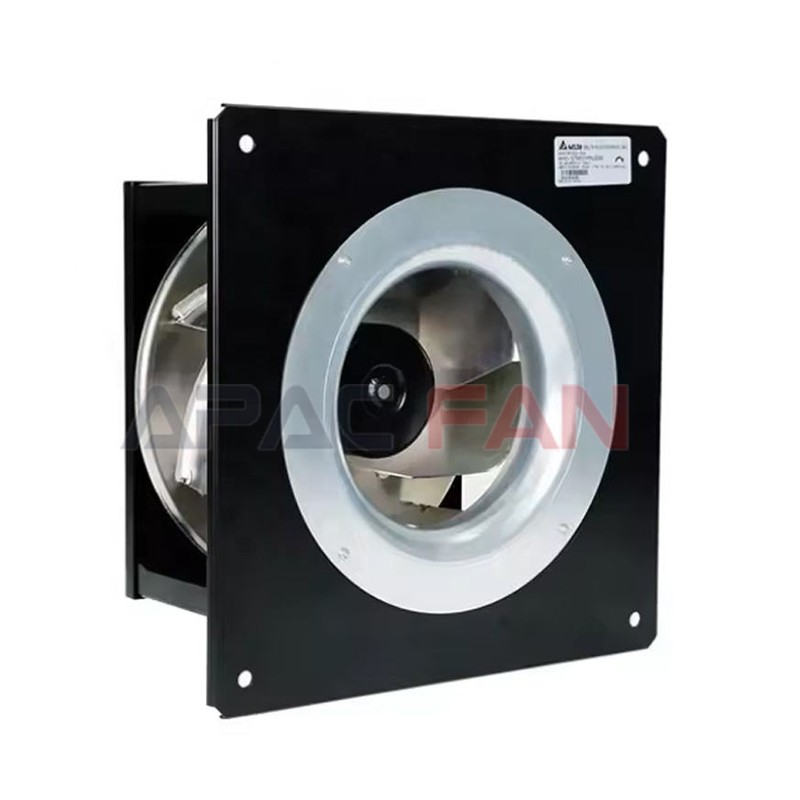

GTM045PUV42R
Brand：
DELTA
Category：
Centrifugal Fan
Description：
Benefits of Delta EC Fans:
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL
Nominal data
Brand：
DELTA
Part No.：
GTM045PUV42R
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
450
Max.Air Flow(m³/h)：
8561
Max.Pressure(Pa)：
1552
Input Power(W)：
5200
Speed(rpm)：
2600
Noise(db)：
87
Description

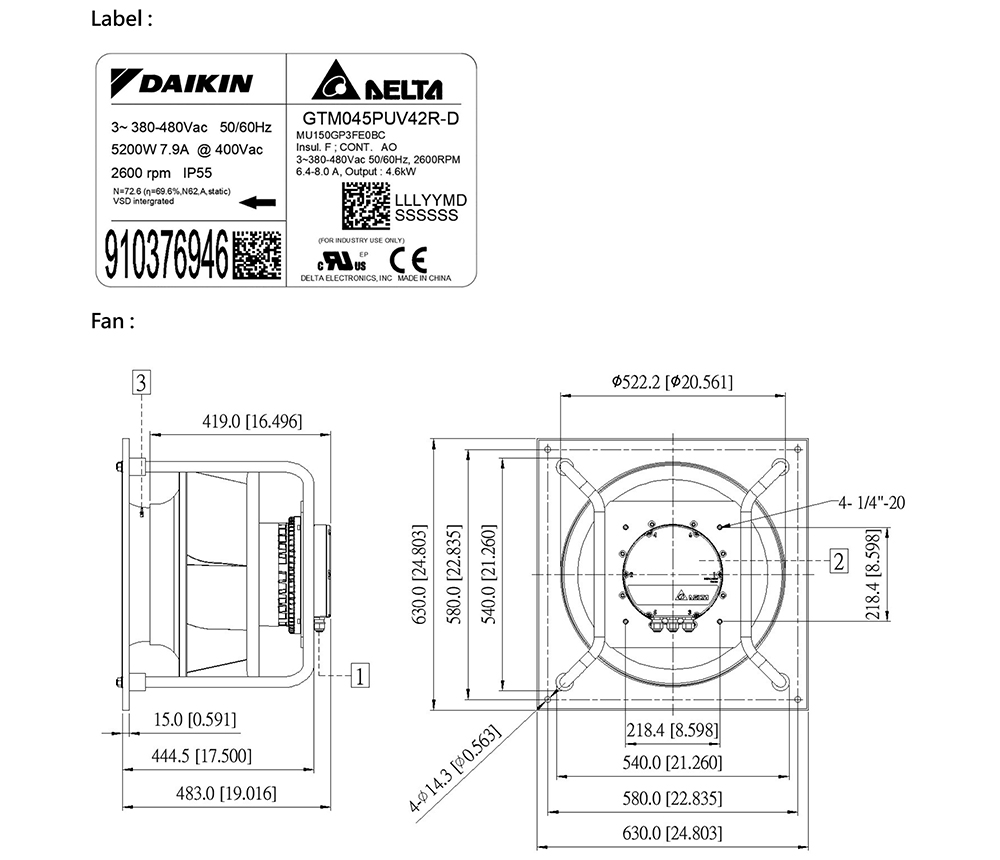

GTM045PUV42R DELTA Specification drawing：
