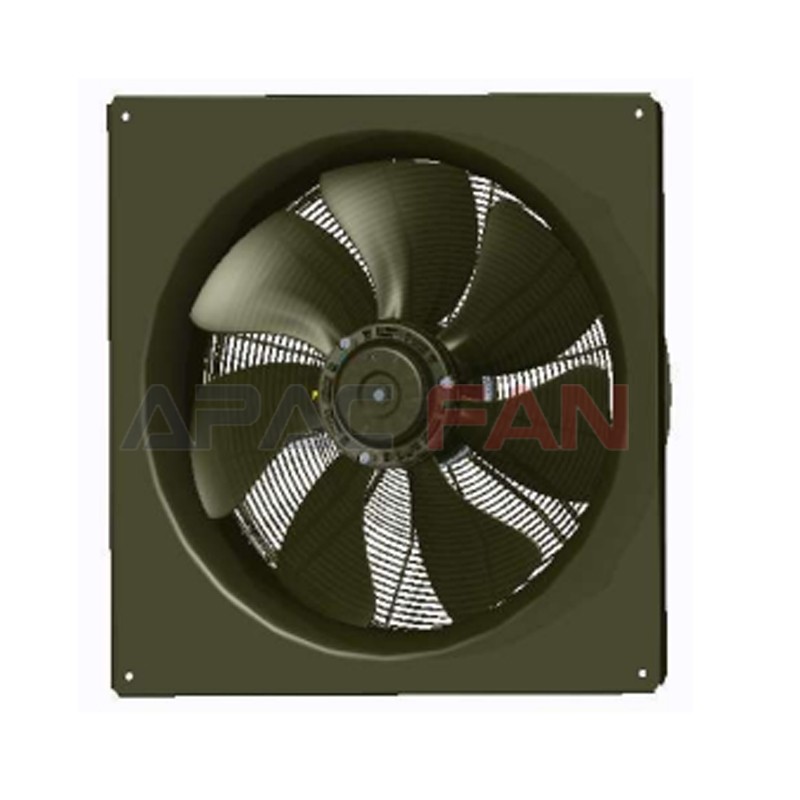

GTW063HUD22E

Brand：

ebmpapst

Category：

Axial Fan

Description：

Benefits of Delta EC Fans:
· Optional inlet nozzle and mounting bracket
· Variable input range
· APFC, PPFC
· 0-10V PWM speed control
· RS485, Modbus
· UL/cUL

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

GTW063HUD22E

Fan Type：

Axial Fan

Rated Voltage(V)：

230/400

Size(mm)：

Max.Air Flow(m³/h)：

13218

Max.Pressure(Pa)：

212

Input Power(W)：

670

Speed(rpm)：

1200

Noise(db)：

Description

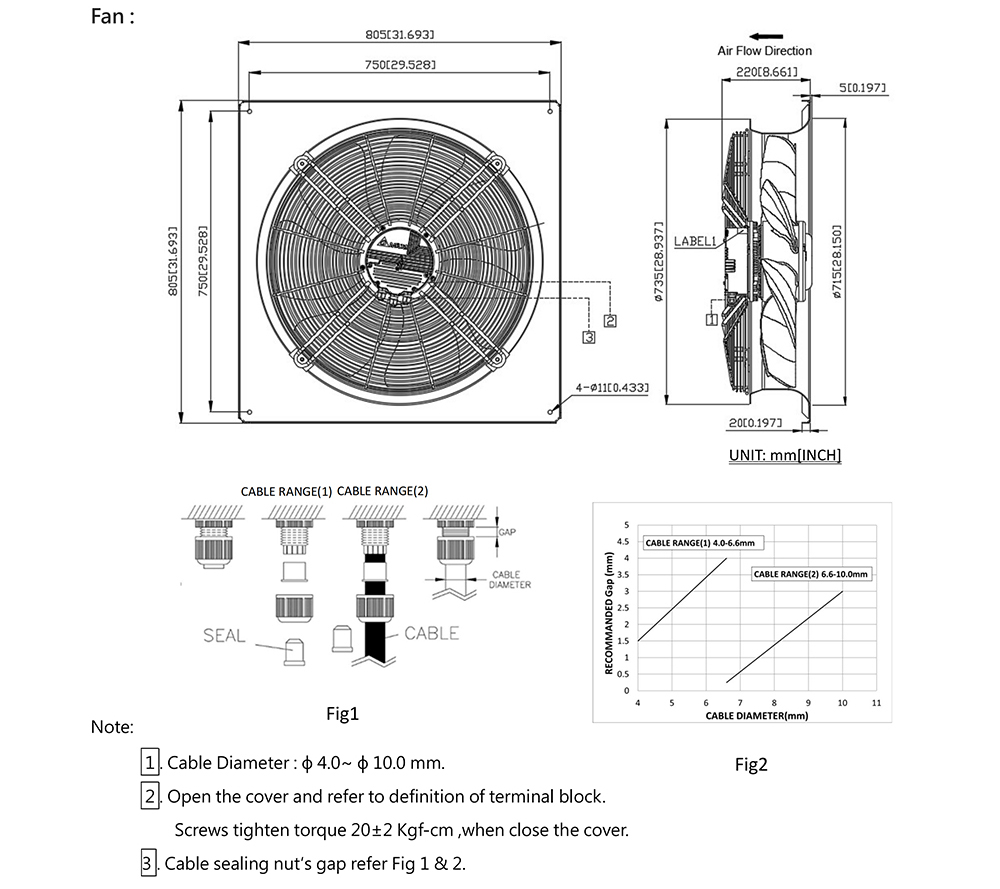

GTW063HUD22E DELTA Specification drawing：
