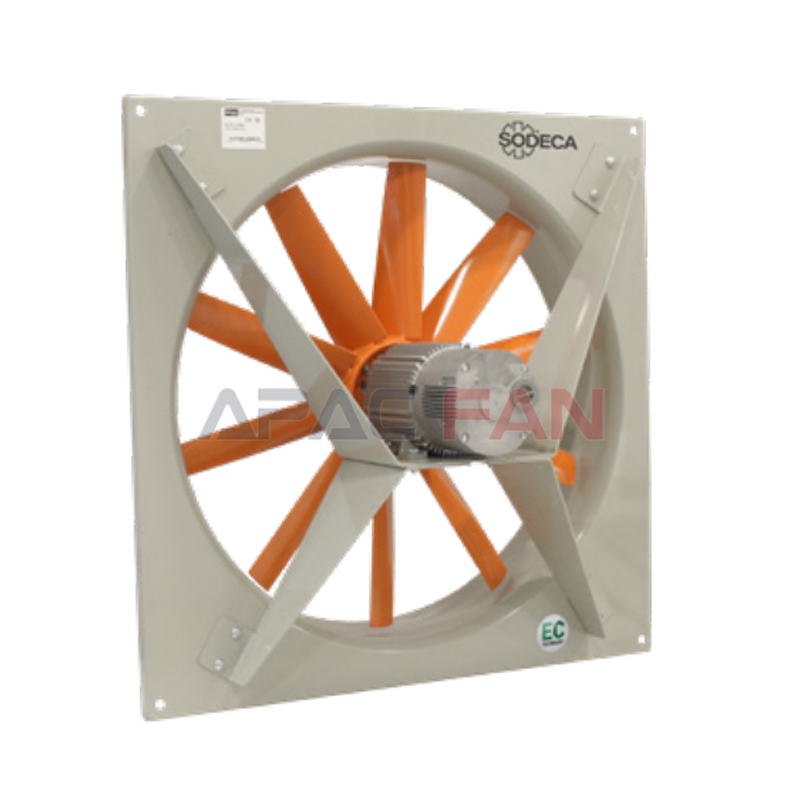

HC/EC Wall mounted axial fans, with EC Technology IE5 motor
Nominal data
Description
Wall mounted axial fans with EC Technology IE5 motor with integrated electronics, specially designed for high energy efficiency.
Fan:
• Airflow direction from motor to impeller.
• Fibreglass reinforced polyamide-6 impeller.
• Steel sheet support frame.
• Protection grid against contacts according to UNE-EN ISO 12499.
• Models 71, 80, 90 and 100: The protection grid is supplied as an accessory.
Motor:
• High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
• IE5 efficiency motors, class F and IP55 protection.
• Single-phase 220-277 V 50/60 Hz and three-phase 380-480 V 50/60 Hz.
• Working temperature: -20 ºC +60 ºC.
• Modbus RTU and built-in alarm relay (three-phase models).
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
• CPC: Constant pressure control.
• CFC: Constant flow control.
• DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
• External sensor: Compatible with temperature, humidity, air quality or CO sensor.
• Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
• Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
• Airflow direction from impeller to motor.
• Motor, impeller and grille assembly (F version), except models 71, 80, 90 and 100, which are supplied without a grille.
• Motor and impeller assembly, version G.
HC/EC-45-4M-0.5 IE5 630x630x365
HC/EC-45-4T-0.5 IE5 630x630x365
HC/EC-50-4M-0.75 IE5 830x830x490
HC/EC-50-4T-0.75 IE5 830x830x490
HC/EC-56-4M-1.5 IE5 770x770x420
HC/EC-56-4T-1.5 IE5 770x770x420
HC/EC-63-4M-1.5 IE5 830x830x493
HC/EC-63-4T-1.5 IE5 830x830x493
HC/EC-71-4T-2 IE5 960x960x610
