K3G280-BC01-N3
Brand：
ebmpapst
Document：
Category：
Centrifugal Fan
Description：
Brand：ebmpapst
Part No：K3G280-BC01-N3
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：280
Max.Air Flow(m³/h)：3635
Max.Pressure(Pa)：1050
Input Power(W)：940
Speed(RPM)：3140
Part No：K3G280-BC01-N3
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：280
Max.Air Flow(m³/h)：3635
Max.Pressure(Pa)：1050
Input Power(W)：940
Speed(RPM)：3140
Nominal data
Brand：
ebmpapst
Part No.：
K3G280-BC01-N3
Fan Type：
Centrifugal Fan
Rated Voltage(V)：
400
Size(mm)：
280
Max.Air Flow(m³/h)：
3635
Max.Pressure(Pa)：
1050
Input Power(W)：
940
Speed(rpm)：
3140
Noise(db)：
Description

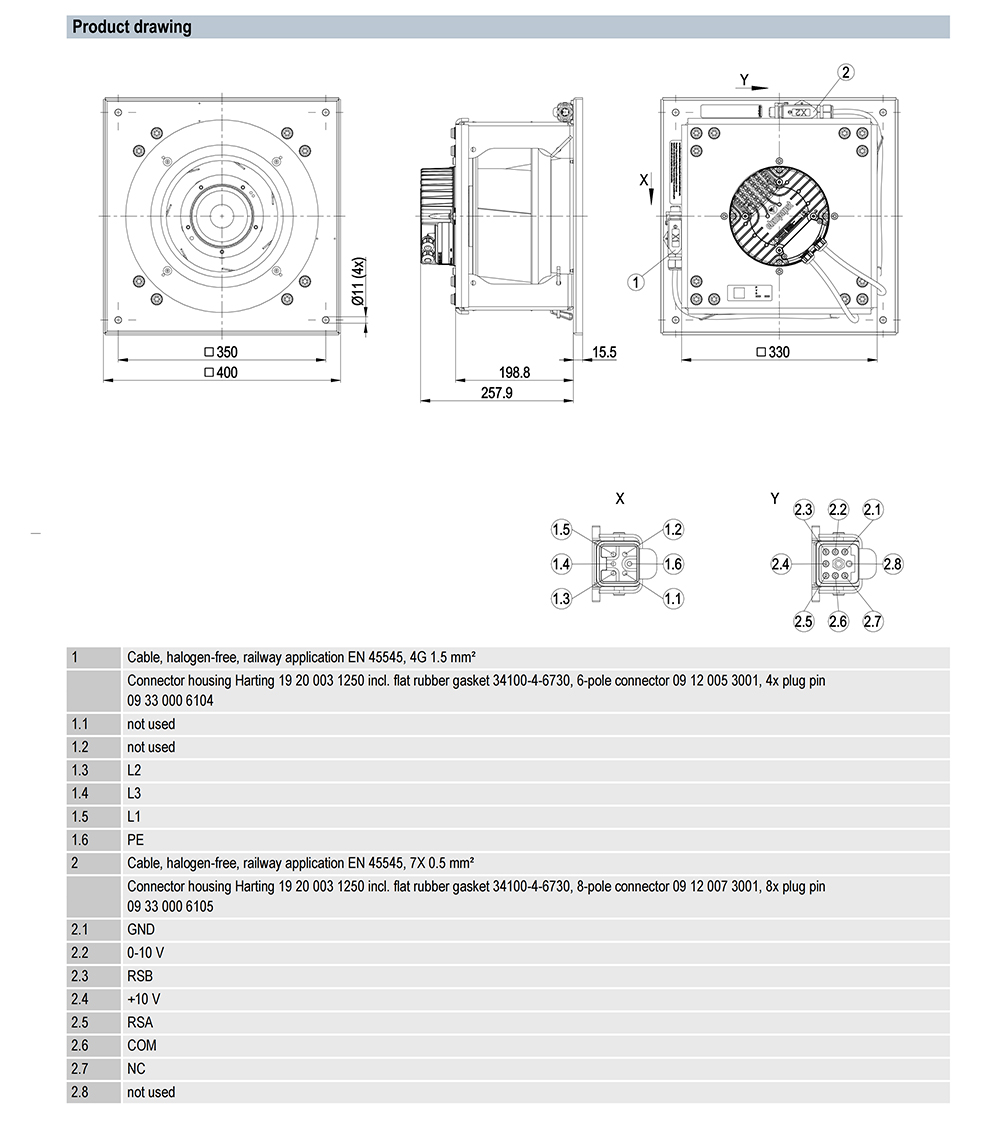

K3G280-BC01-N3 ebmpapst Specification drawing：
