K3G560-PC10-N1 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

K3G560PC10N1.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G560-PC10-N1
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：560
Max.Air Flow(m³/h)：21025
Max.Pressure(Pa)：1400
Input Power(W)：5950
Speed(rpm)： 1860
Noise(db)：81

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G560-PC10-N1

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

560

Max.Air Flow(m³/h)：

21025

Max.Pressure(Pa)：

1400

Input Power(W)：

5950

Speed(rpm)：

1860

Noise(db)：

81

Description

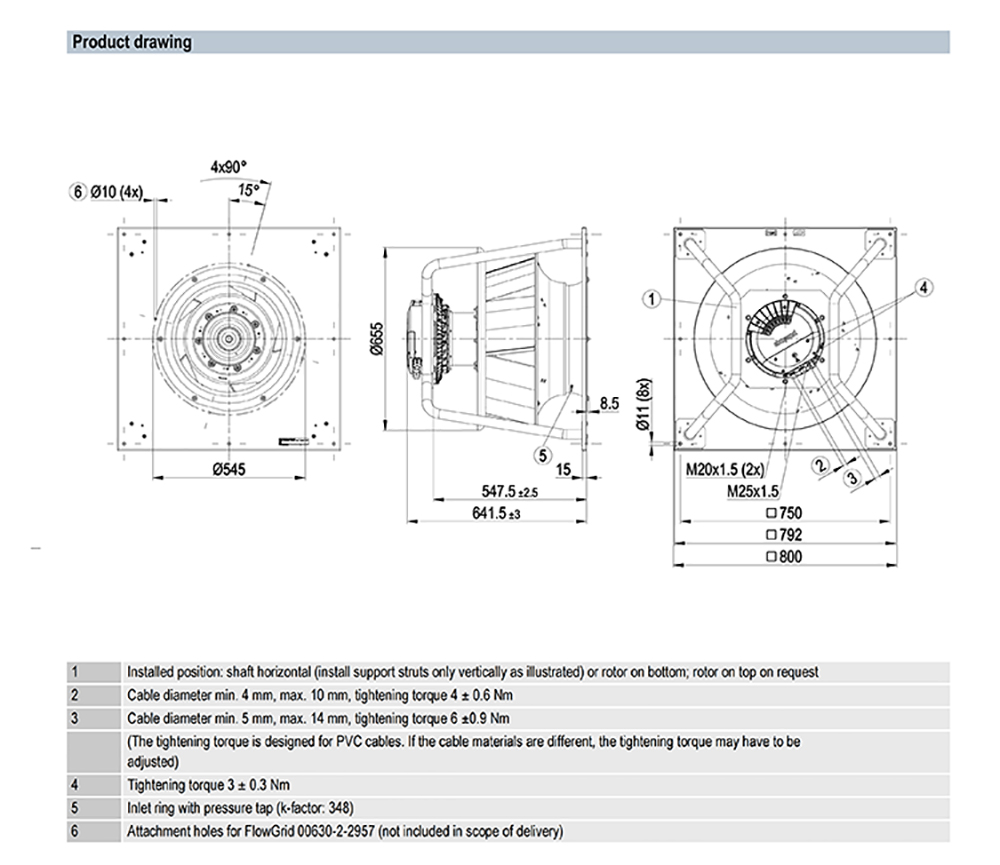

K3G560-PC10-N1 Ebm-papst Specification drawing：
