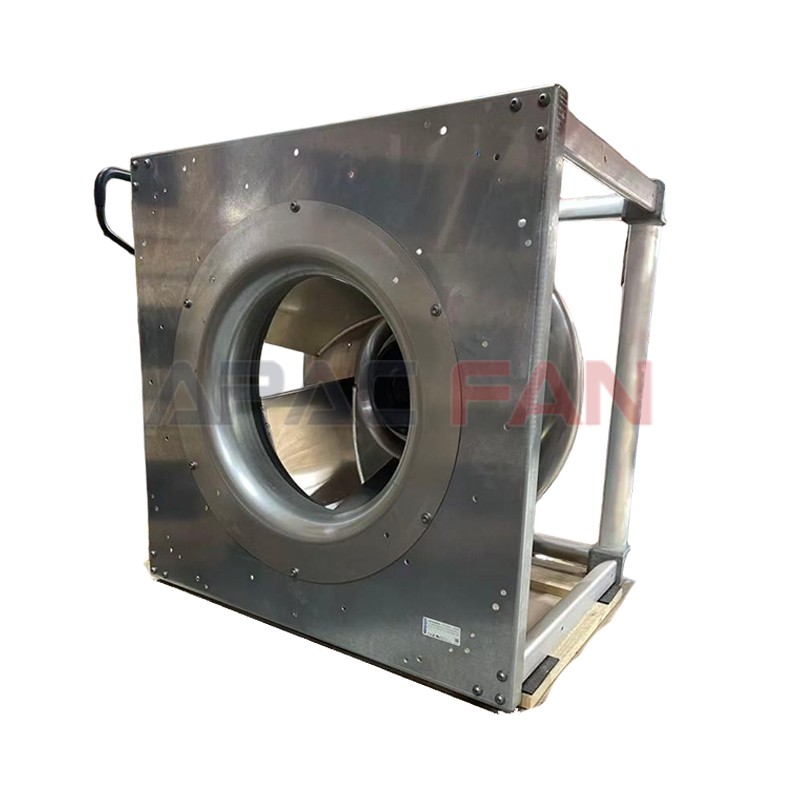

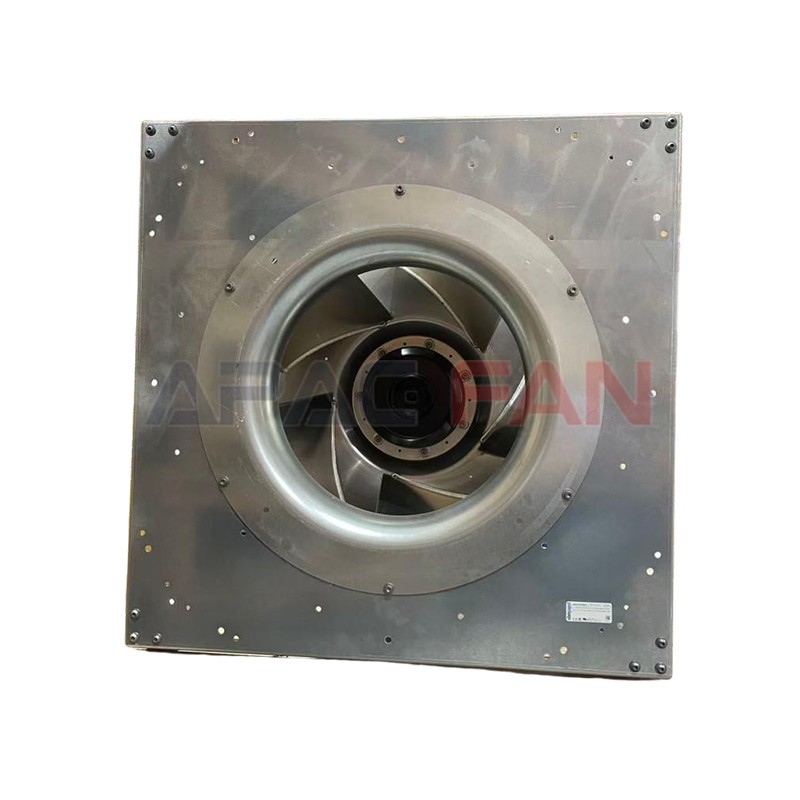

K3G710-PV05-01 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

K3G710PV0501.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：K3G710-PV05-01
Fan Type：Centrifugal Fan
Rated Voltage(V)： 400
Size(mm)：710
Max.Air Flow(m³/h)：30565
Max.Pressure(Pa)：1250
Input Power(W)：7050
Speed(rpm)：1430
Noise(db)：50

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

K3G710-PV05-01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

710

Max.Air Flow(m³/h)：

30565

Max.Pressure(Pa)：

1250

Input Power(W)：

7050

Speed(rpm)：

1430

Noise(db)：

Description

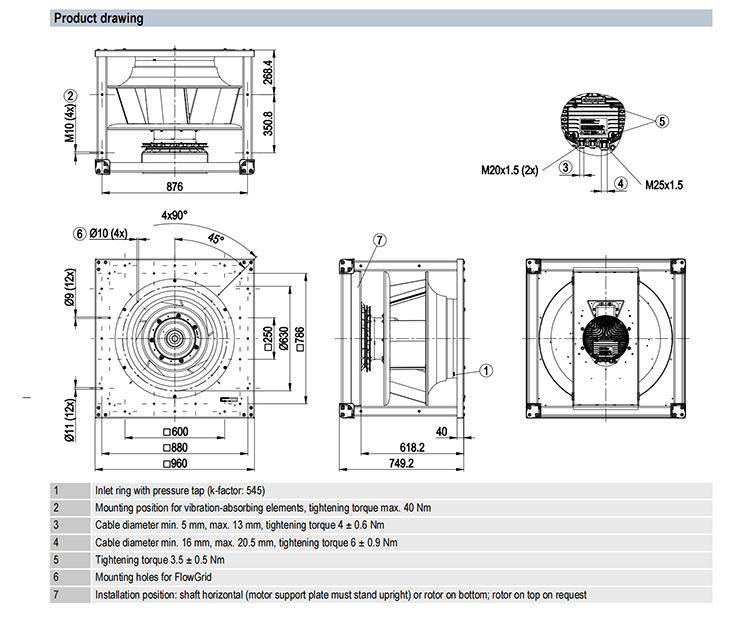

K3G710-PV05-01 Ebm-papst Specification drawing：
