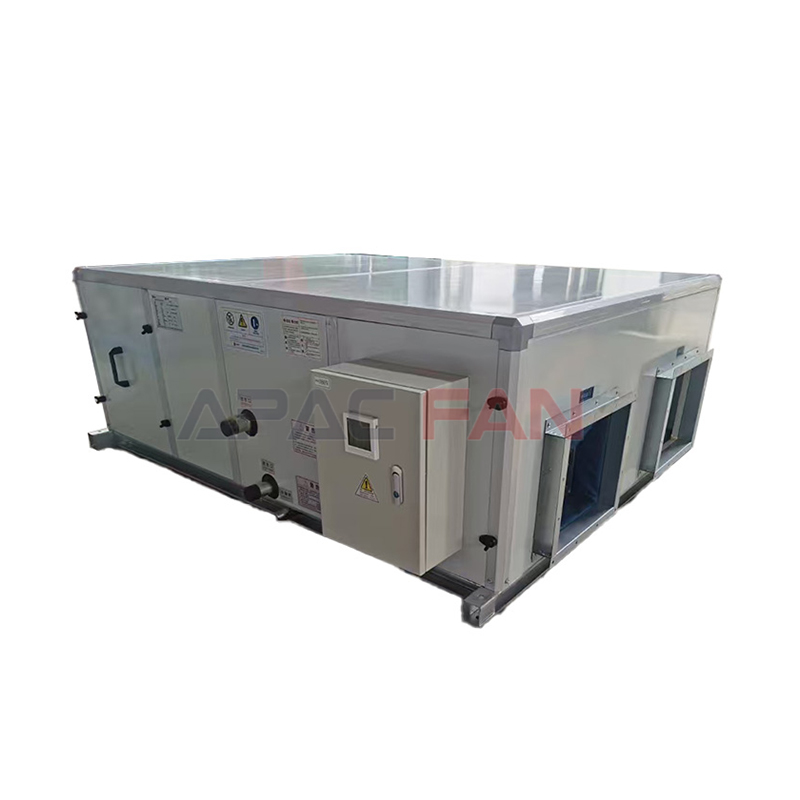

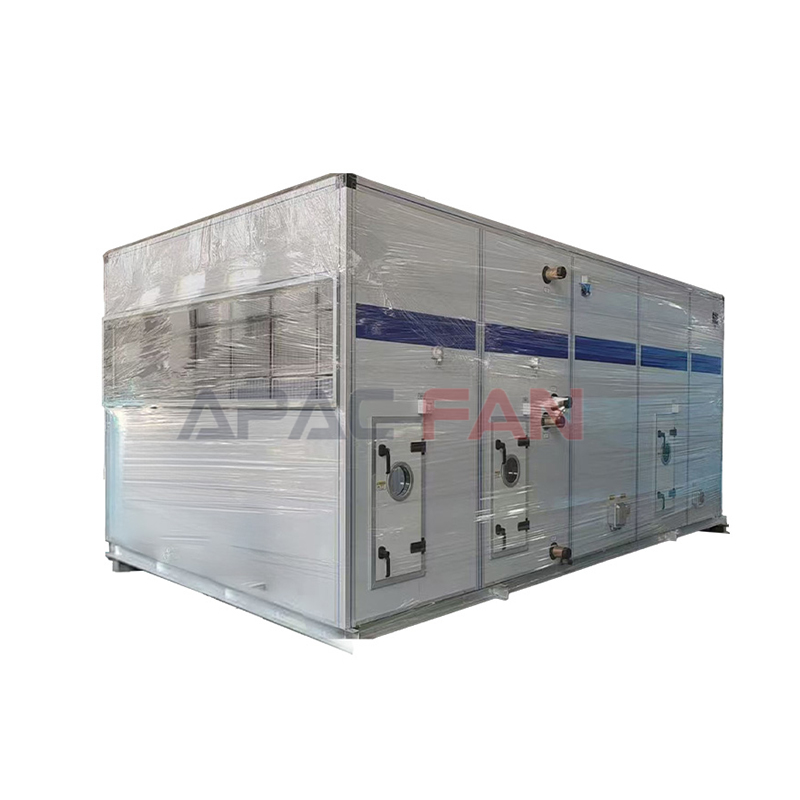

K-CAW Series Modular AHU
Brand：
Category：
Description：
The built-in steel base facilitates transportation.
Description
The aluminum alloy (aluminum-plastic) frame features a 0.1-1mm double-layer panel with an anti-corrosion coating. The interlayer is filled with mineral wool or PU foam for excellent thermal insulation, ensuring the unit is free of cold bridges and condensation leakage.
All components of the unit have been rigorously tested and are guaranteed to operate normally in all weather conditions.
An automatic control system can be configured for automated control and energy-saving operation.
The bottom drain design (1.5% slope) ensures smooth condensate discharge.
Customizable solutions are available.
| Model | Unit Air Volume (m³/h) | Outlet Static Pressure (Pa) | Unit Dimensions - Width (W) | Unit Dimensions - Height (H) |
| K-CAW-50 | 50562 | 500~1500 | 2505 | 2505 |
| K-CAW-60 | 60280 | 500~1500 | 2905 | 2506 |
| K-CAW-80 | 80126 | 500~1500 | 3005 | 3405 |
| K-CAW-100 | 100260 | 600~1500 | 3605 | 3505 |
| K-CAW-120 | 121056 | 600~1500 | 4305 | 3505 |
| K-CAW-140 | 140862 | 600~1500 | 4505 | 3805 |
| K-CAW-160 | 161236 | 600~1500 | 4805 | 4105 |
| K-CAW-180 | 180650 | 600~1500 | 5205 | 4505 |
| K-CAW-200 | 201260 | 600~1500 | 5705 | 4505 |
| K-CAW-220 | 222152 | 600~1800 | 5905 | 4505 |
