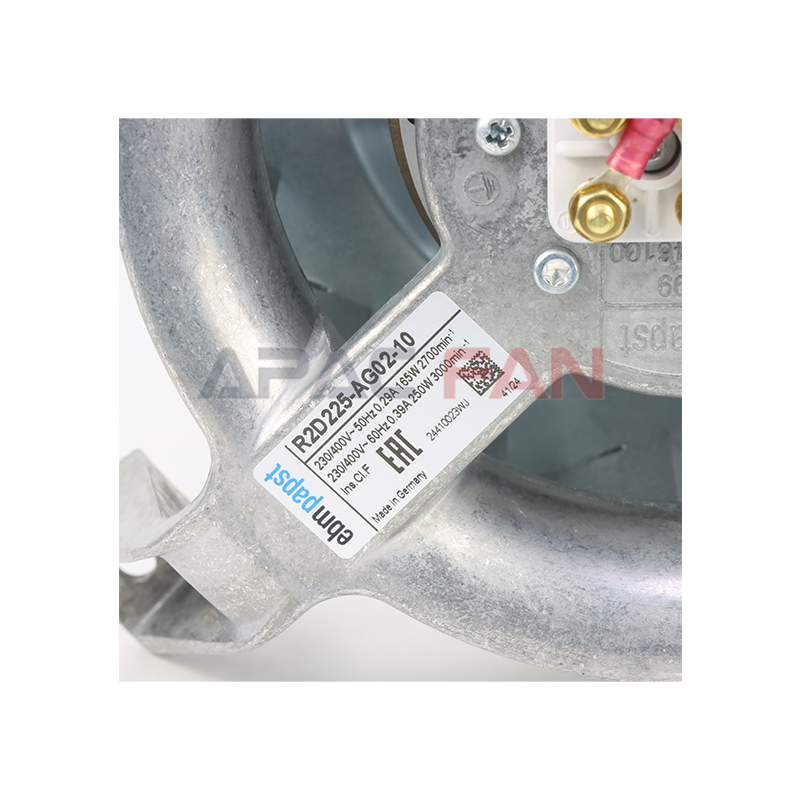

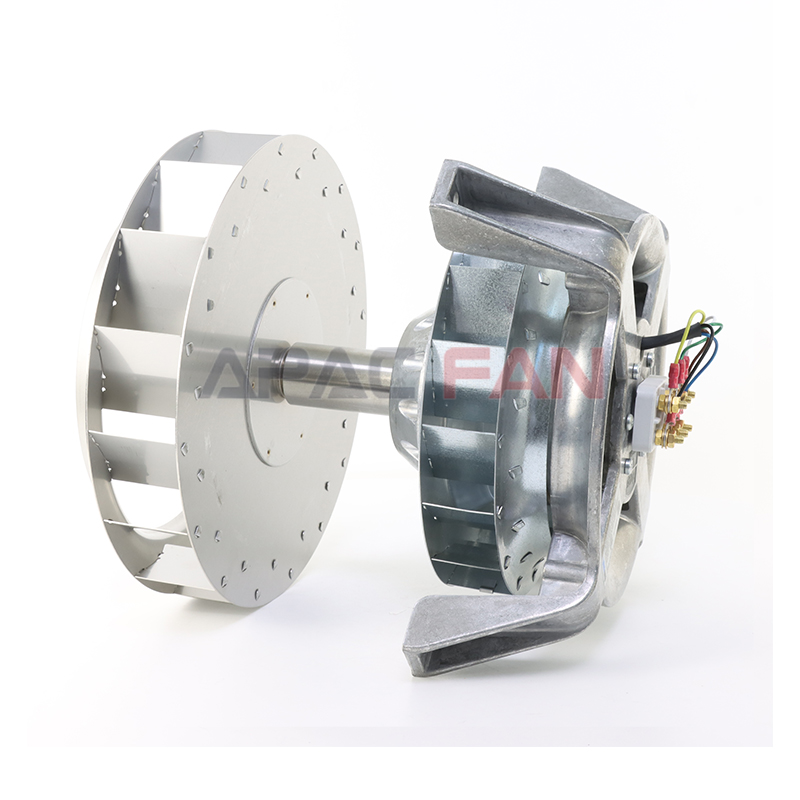

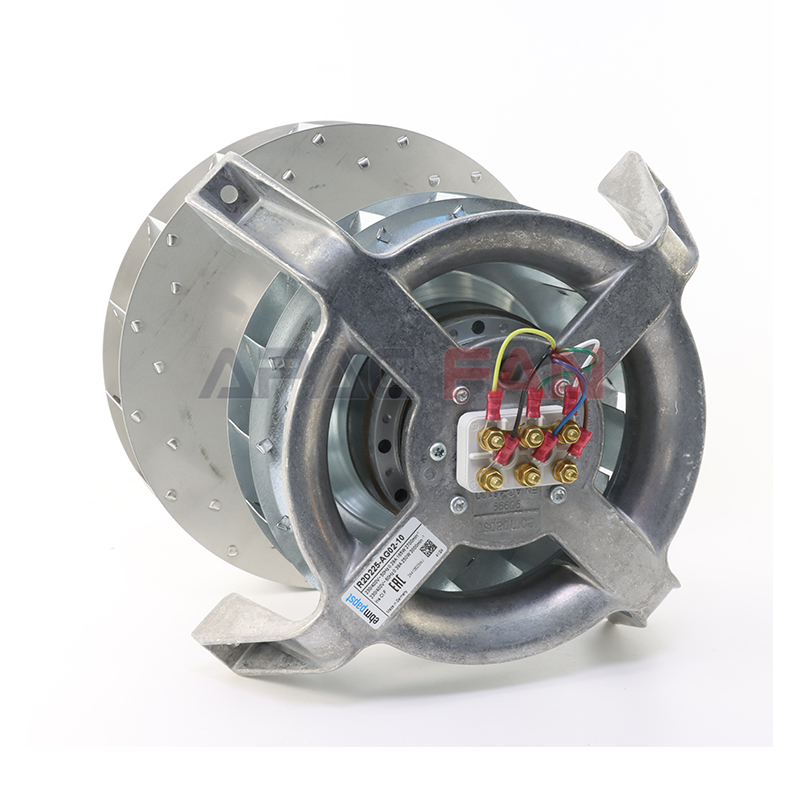

R2D225-AG02-10 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R2D225-AG02-10
Fan Type：Centrifugal Fan
Rated Voltage(V)：400
Size(mm)：225
Max.Air Flow(m³/h)：1395
Max.Pressure(Pa)：400
Input Power(W)：250
Speed(rpm)：3000

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R2D225-AG02-10

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

225

Max.Air Flow(m³/h)：

1395

Max.Pressure(Pa)：

400

Input Power(W)：

250

Speed(rpm)：

3000

Noise(db)：

Description

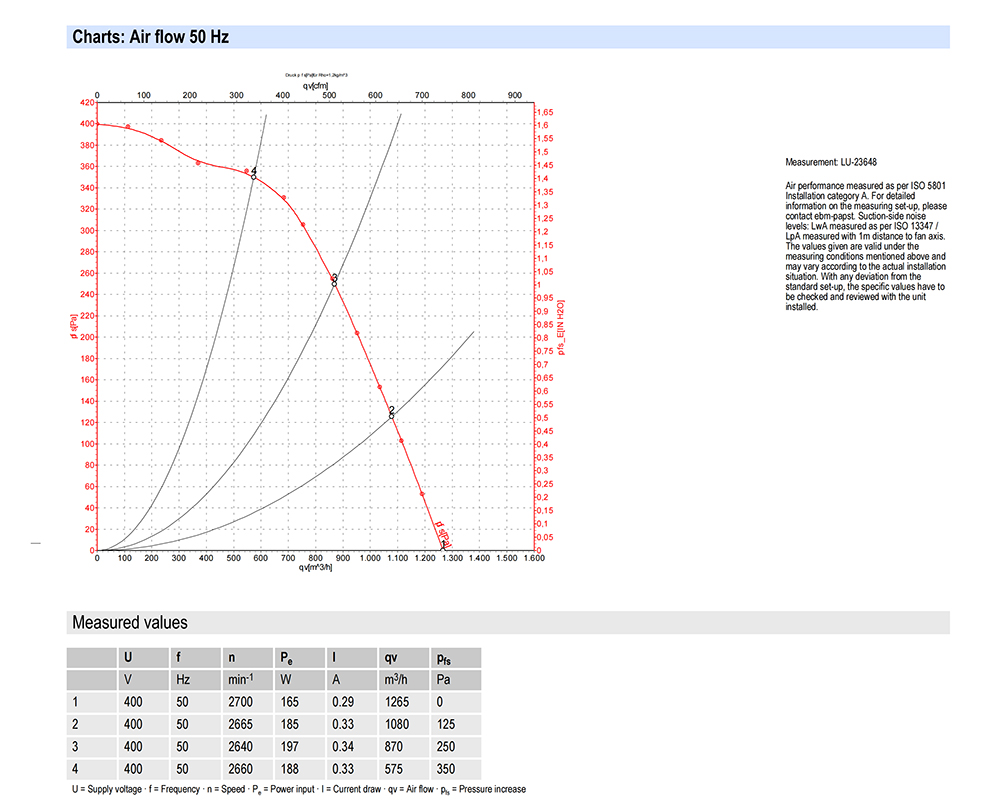

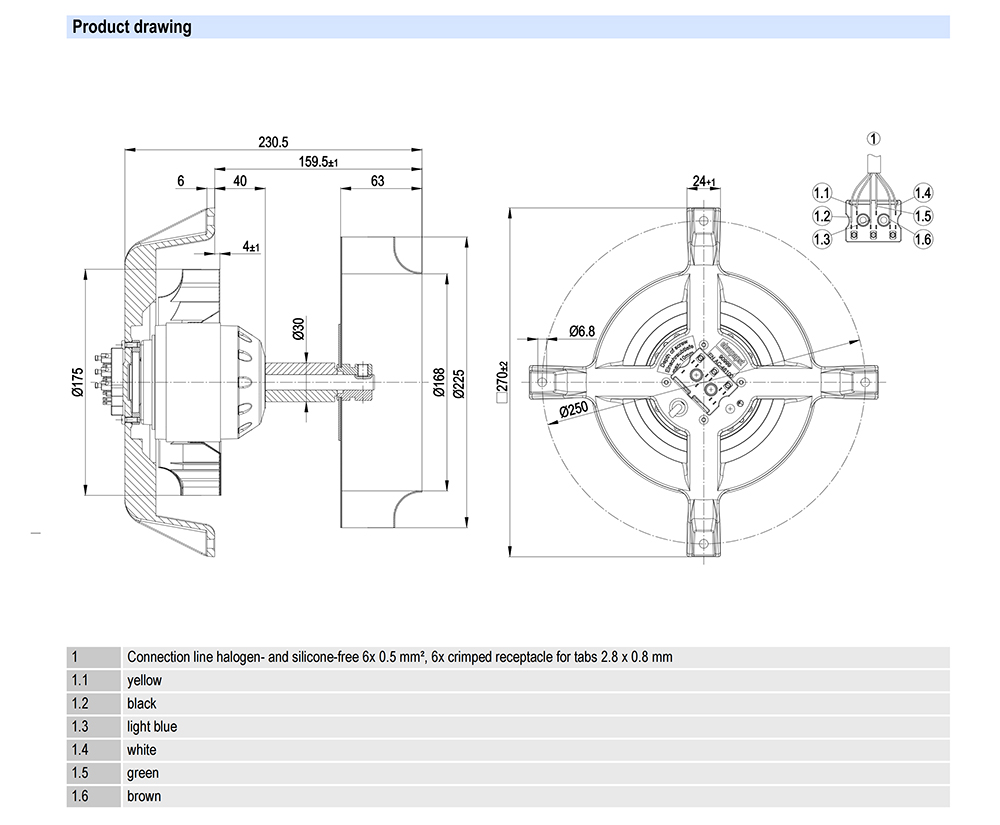

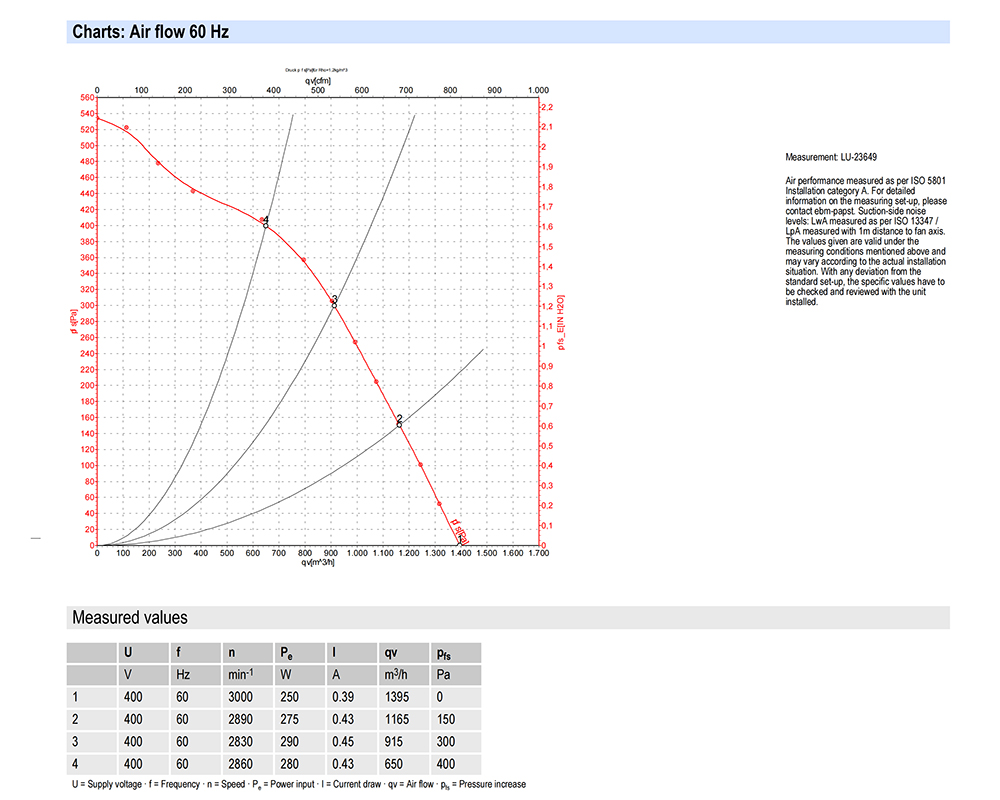

R2D225-AG02-10 Ebm-papst Specification drawing：
