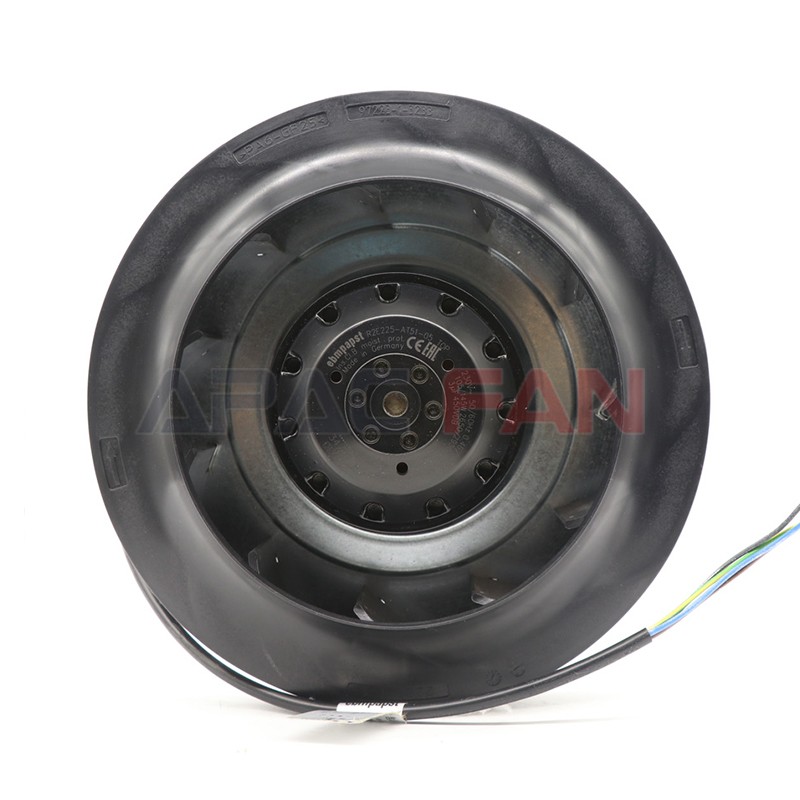

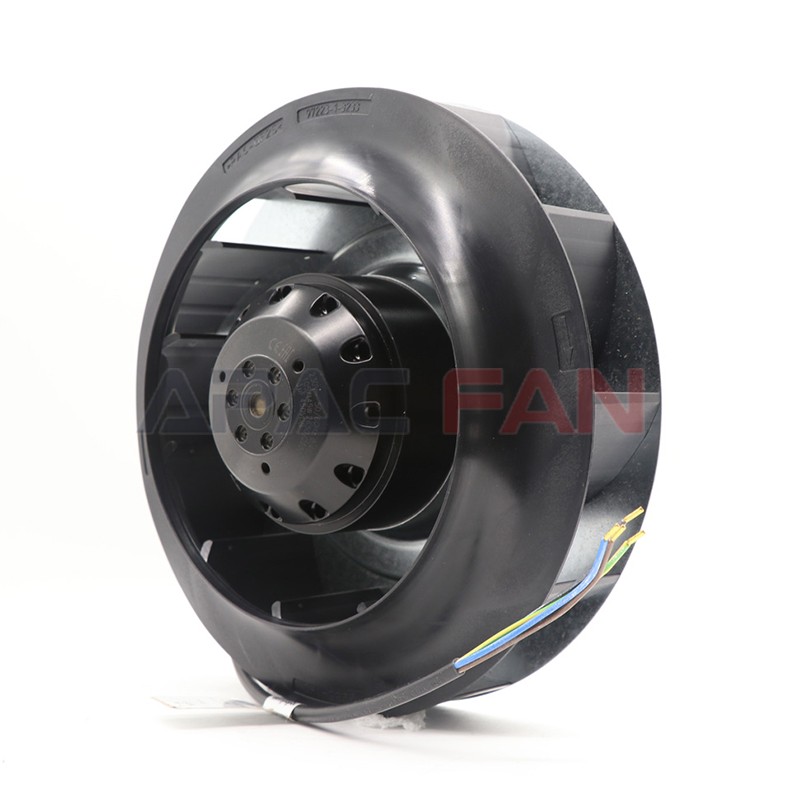

R2E225-AT51-05 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R2E225-AT51-05
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：225
Max.Air Flow(m³/h)：850
Input Power(W)：105
Speed(RPM)：2650
Noise(dB)：70

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R2E225-AT51-05

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

225

Max.Air Flow(m³/h)：

850

Max.Pressure(Pa)：

Input Power(W)：

105

Speed(rpm)：

2650

Noise(db)：

70

Description

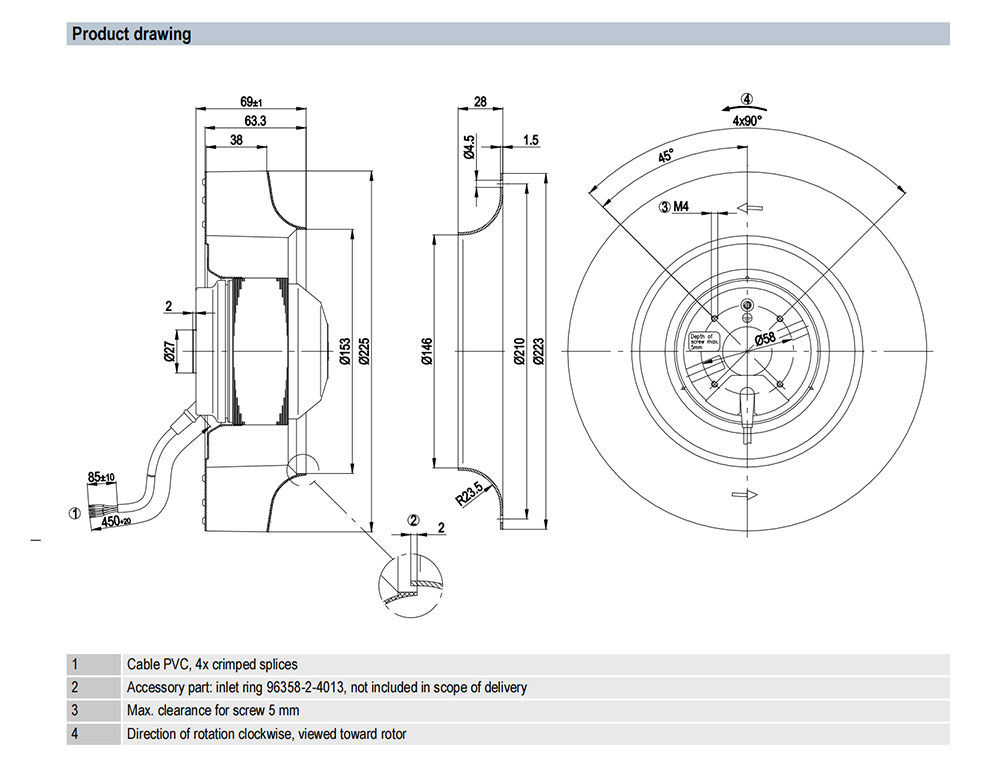

R2E225-AT51-05 Ebm-papst Specification drawing：
