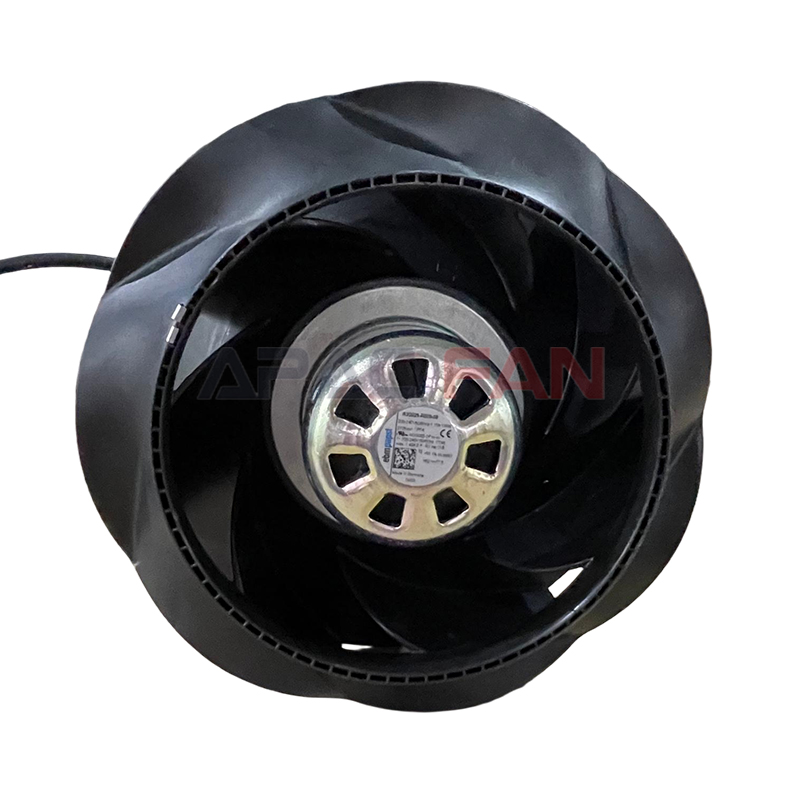

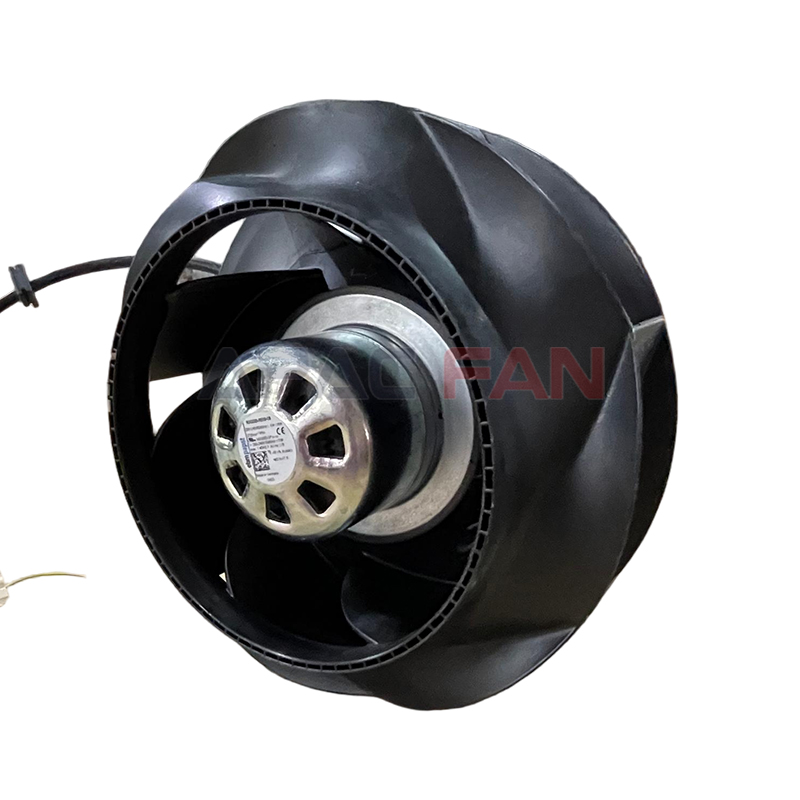

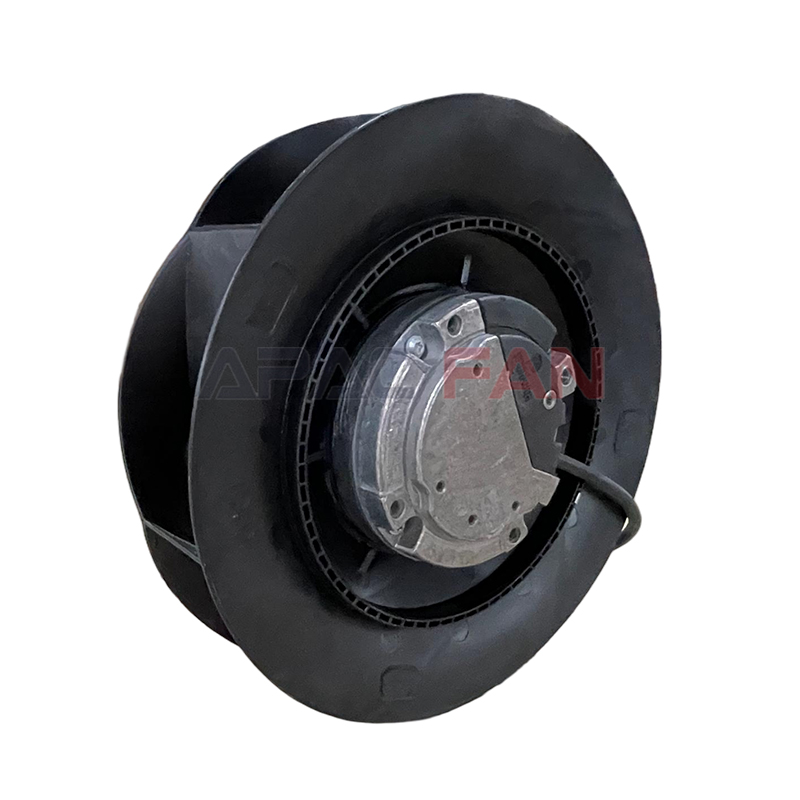

R3G225-RE09-08 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R3G225RE0908.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G225-RE09-08
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：225
Max.Air Flow(m³/h)：1165
Max.Pressure(Pa)：460
Input Power(W)：138
Speed(rpm)：2725

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G225-RE09-08

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

225

Max.Air Flow(m³/h)：

1165

Max.Pressure(Pa)：

460

Input Power(W)：

138

Speed(rpm)：

2725

Noise(db)：

Description

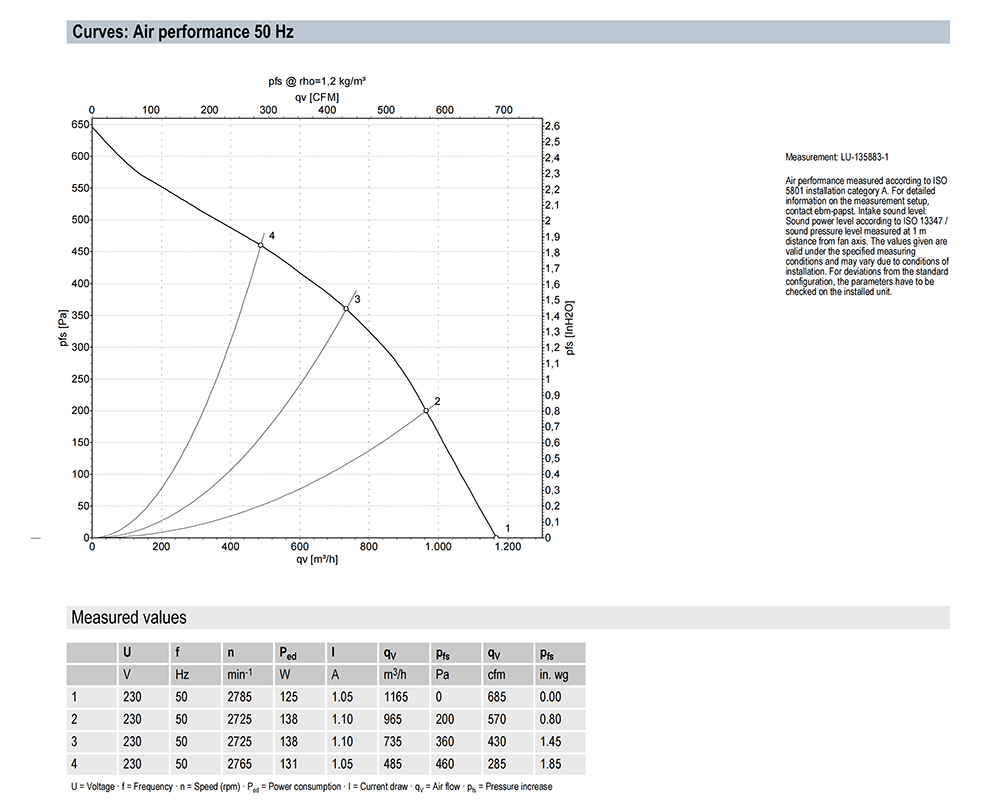

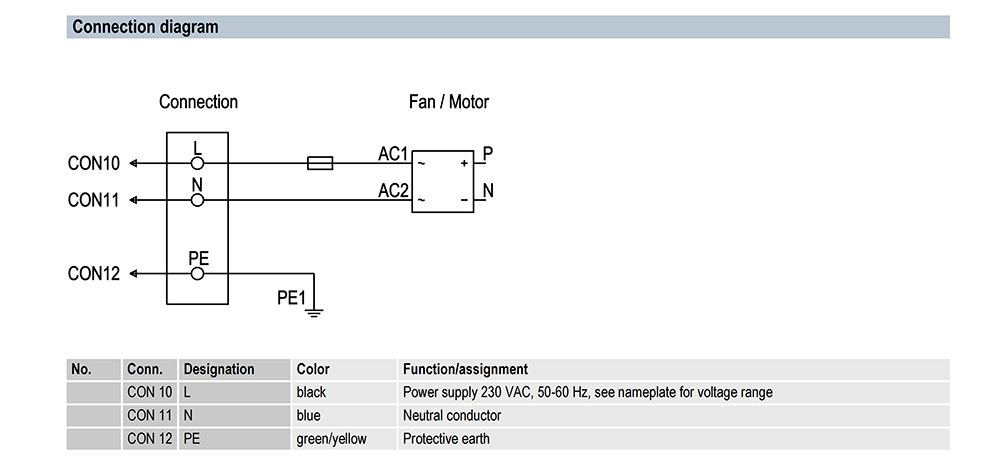

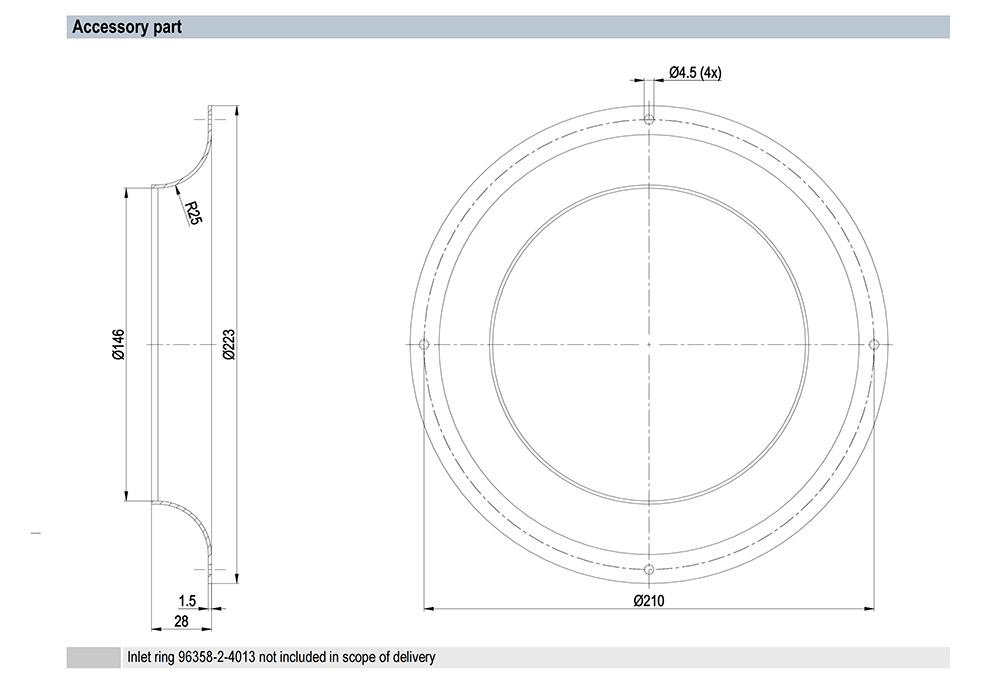

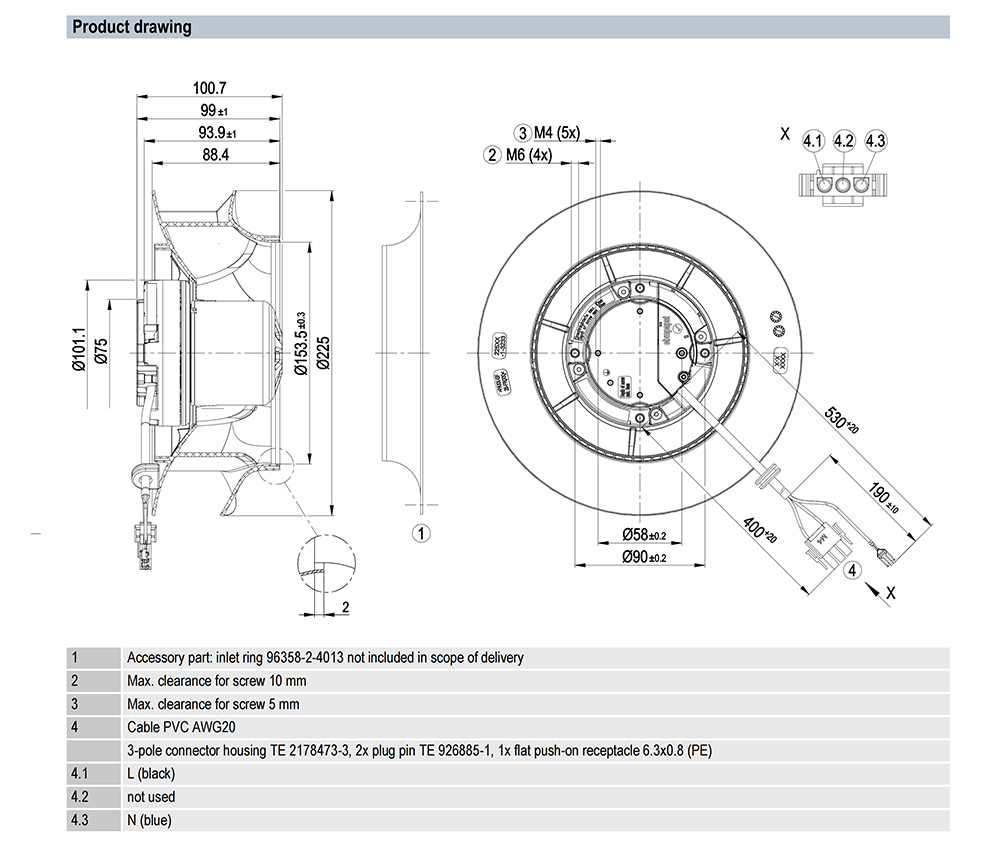

R3G225-RE09-08 Ebm-papst Specification drawing：
