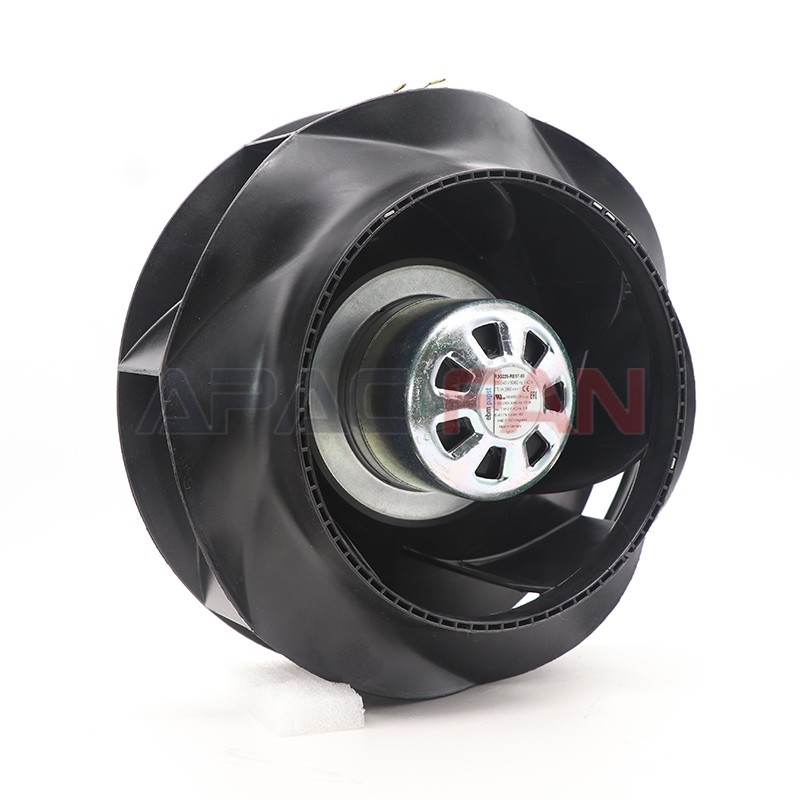

R3G225-RH17-11 EC Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G225-RH17-11
Fan Type：Centrifugal Fan
Rated Voltage(V)：230
Size(mm)：225
Max.Air Flow(m³/h)：960
Max.Pressure(Pa)：300
Input Power(W)：60
Speed(RPM)：2200

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G225-RH17-11

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

230

Size(mm)：

225

Max.Air Flow(m³/h)：

960

Max.Pressure(Pa)：

300

Input Power(W)：

60

Speed(rpm)：

2200

Noise(db)：

Description

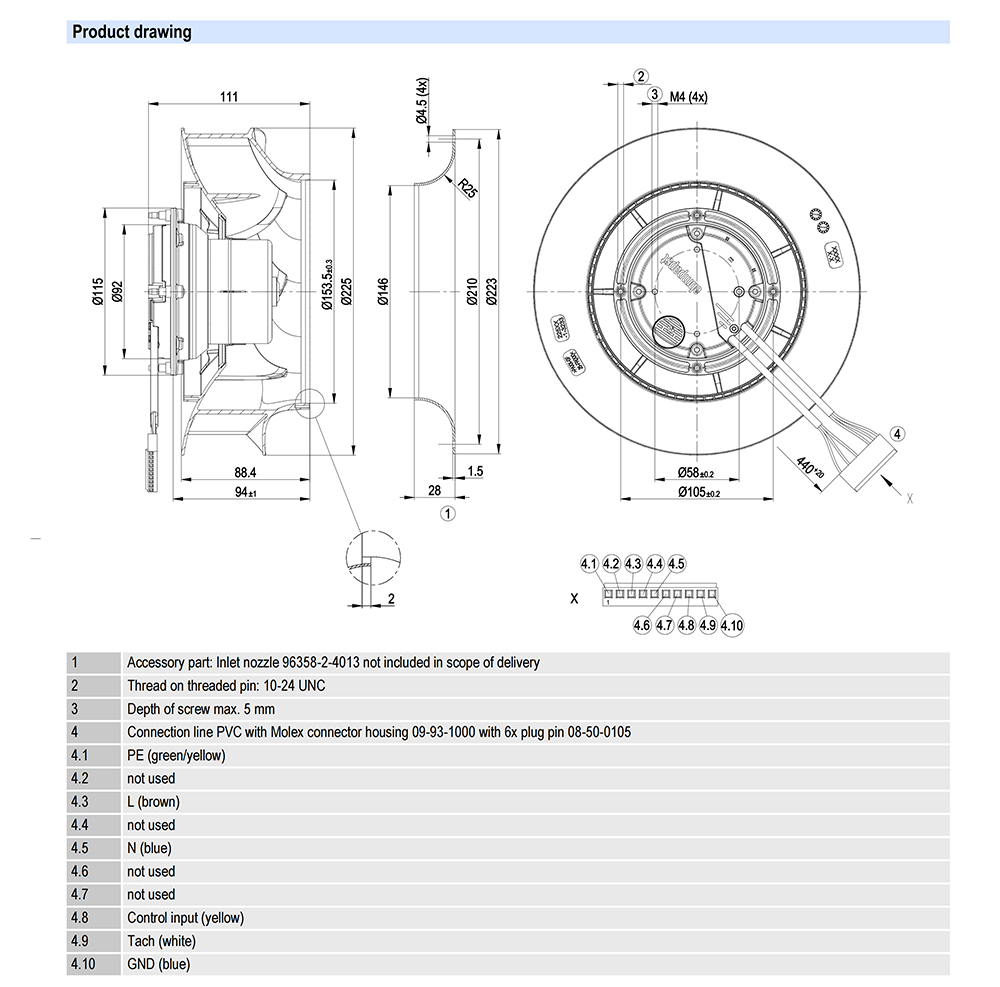

R3G225-RH17-11 Ebm-papst Specification drawing：
