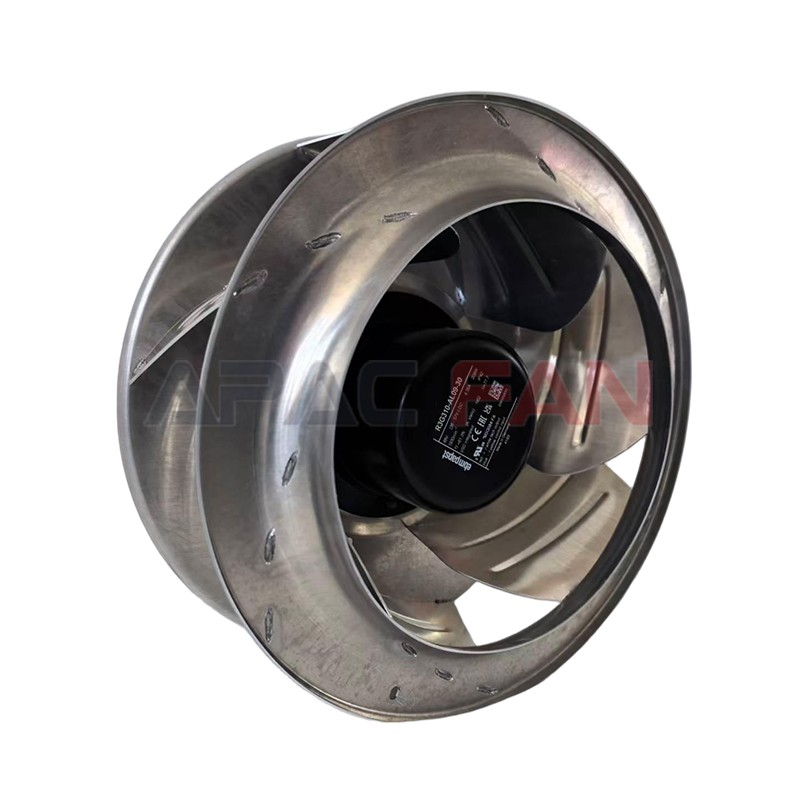

R3G310-AL09-30 Ebm-papst Centrifugal Fan

Brand：

ebmpapst

Document：

R3G310AL0930.PDF

Category：

Centrifugal Fan

Description：

Brand：ebmpapst
Part No：R3G310-AL09-30
Fan Type：Centrifugal Fan
Rated Voltage(V)：48
Size(mm)：310
Max.Air Flow(m³/h)：3020
Max.Pressure(Pa)：600
Input Power(W)：208
Speed(rpm)：1390
Noise(db)：50

00852-56261528 info@apacfan.com

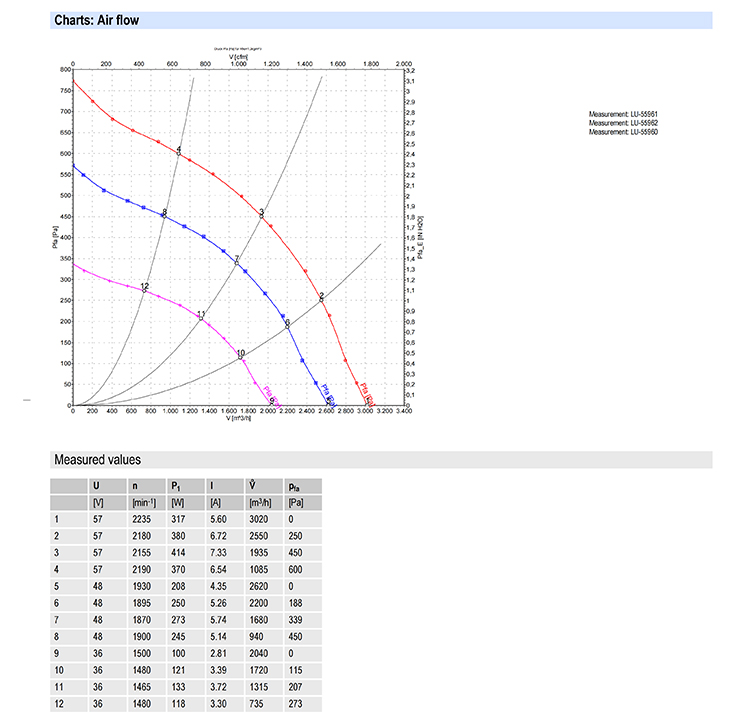

Nominal data

Brand：

ebmpapst

Part No.：

R3G310-AL09-30

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

48

Size(mm)：

310

Max.Air Flow(m³/h)：

3020

Max.Pressure(Pa)：

600

Input Power(W)：

208

Speed(rpm)：

1390

Noise(db)：

50

Description

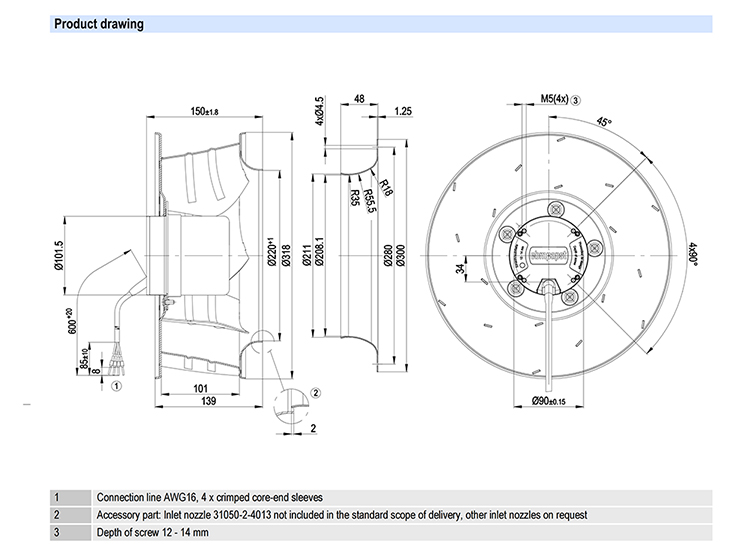

R3G310-AL09-30 Ebm-papst Specification drawing：
