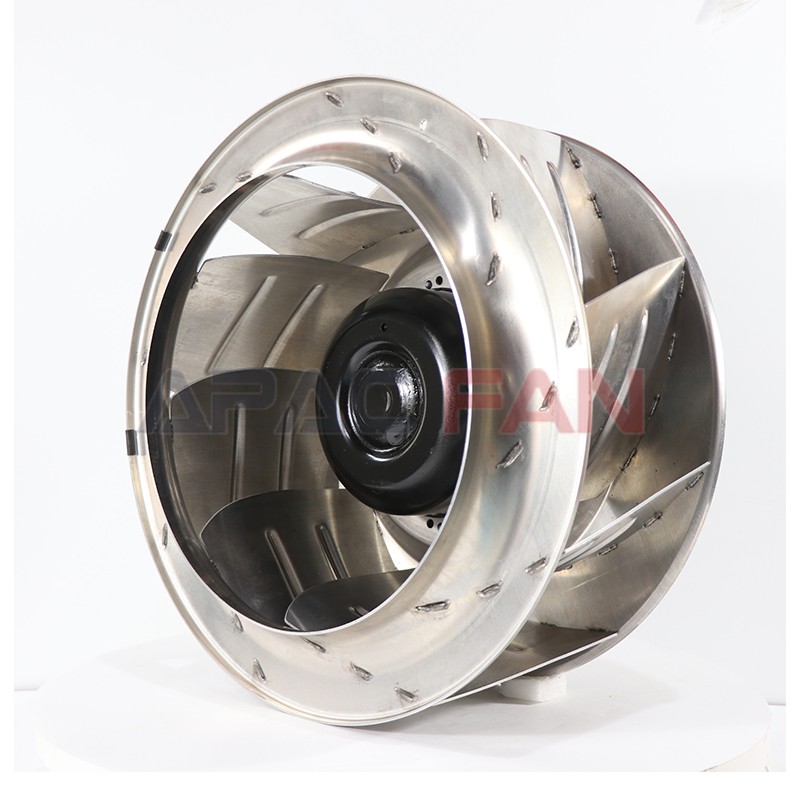

R3G500-AP24-01 EC Centrifugal Fan

Brand：

ebmpapst

Category：

Centrifugal Fan

Description：

Stepless Speed Control & Intelligent Control
High Reliability & Long Service Life
Compact Design & Easy Integration
High Energy Efficiency & Environmental

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

R3G500-AP24-01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

400

Size(mm)：

500

Max.Air Flow(m³/h)：

13610

Max.Pressure(Pa)：

1200

Input Power(W)：

3510

Speed(rpm)：

1910

Noise(db)：

77

Description

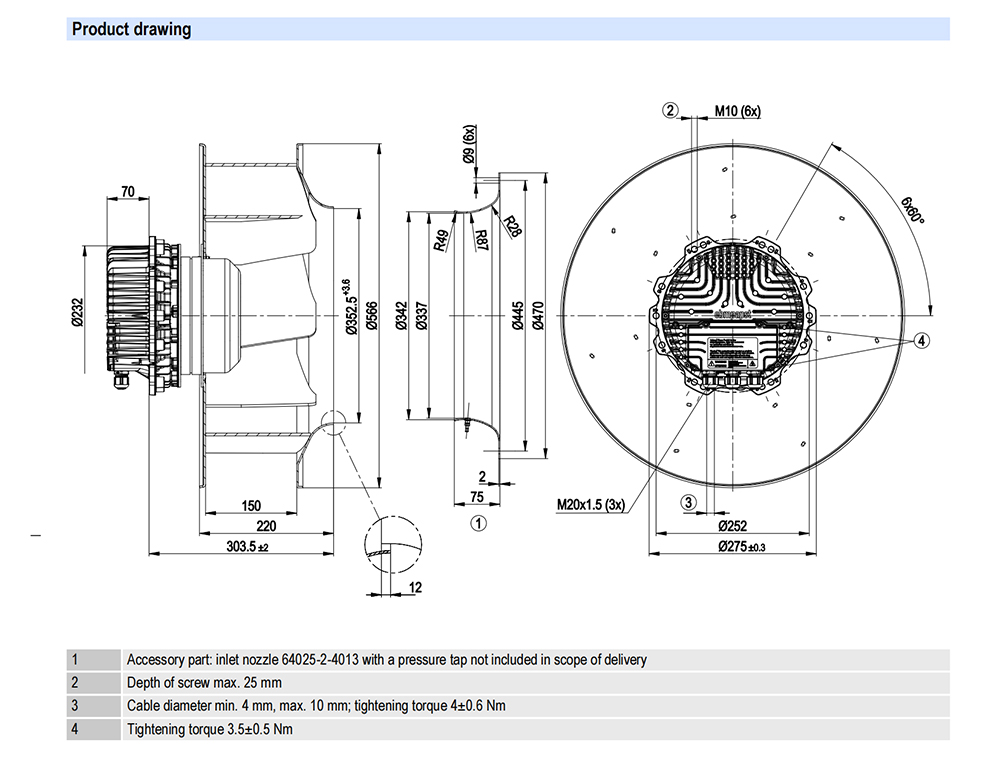

R3G500-AP24-01 Ebm-papst Specification drawing：
