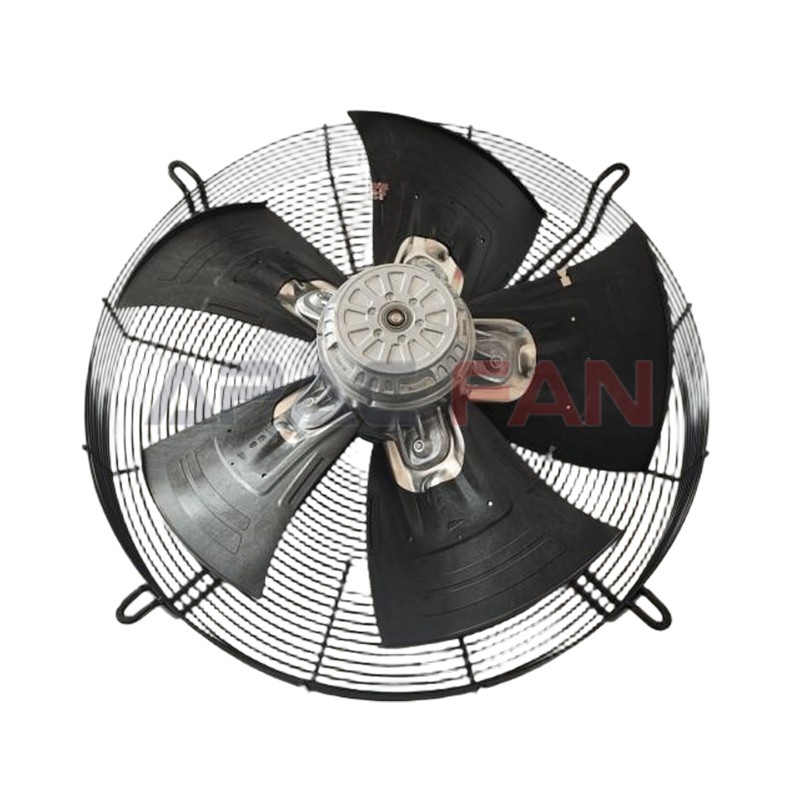

Ebm-papst S4D560-BQ01-02 Condenser Durable Axial Fan | Industrial-grade Quality
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
1、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
2、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
S4D560-BQ01-02
Fan Type：
Axial Fan
Rated Voltage(V)：
400
Size(mm)：
560
Max.Air Flow(m³/h)：
Max.Pressure(Pa)：
90
Input Power(W)：
1380
Speed(rpm)：
1540
Noise(db)：
Description

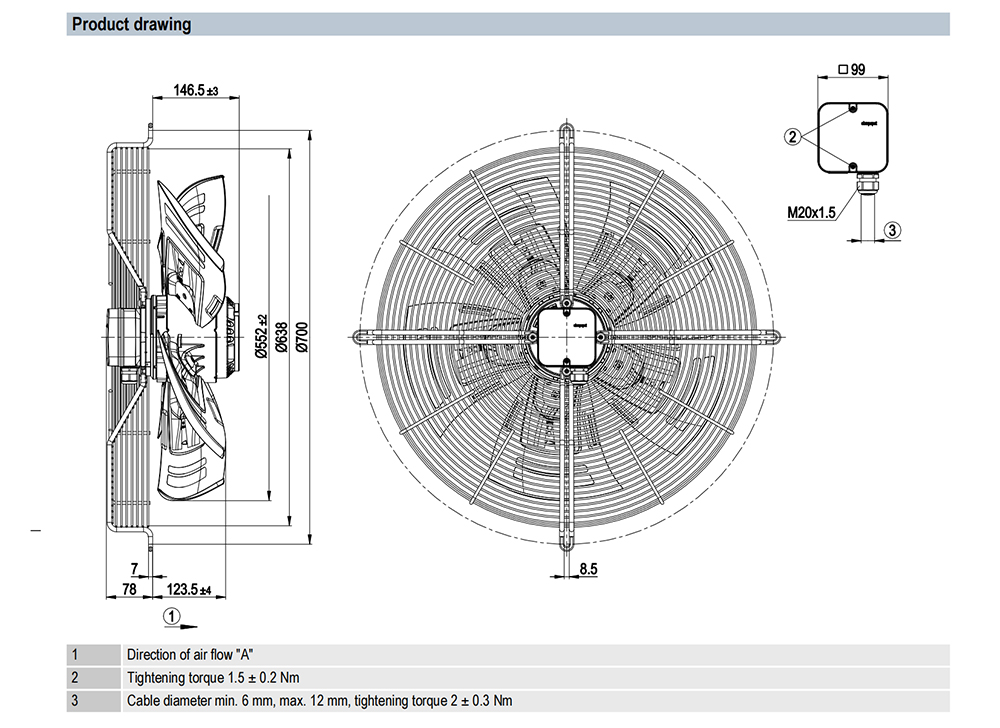

S4D560-BQ01-02 Ebm-papst Specification drawing：
