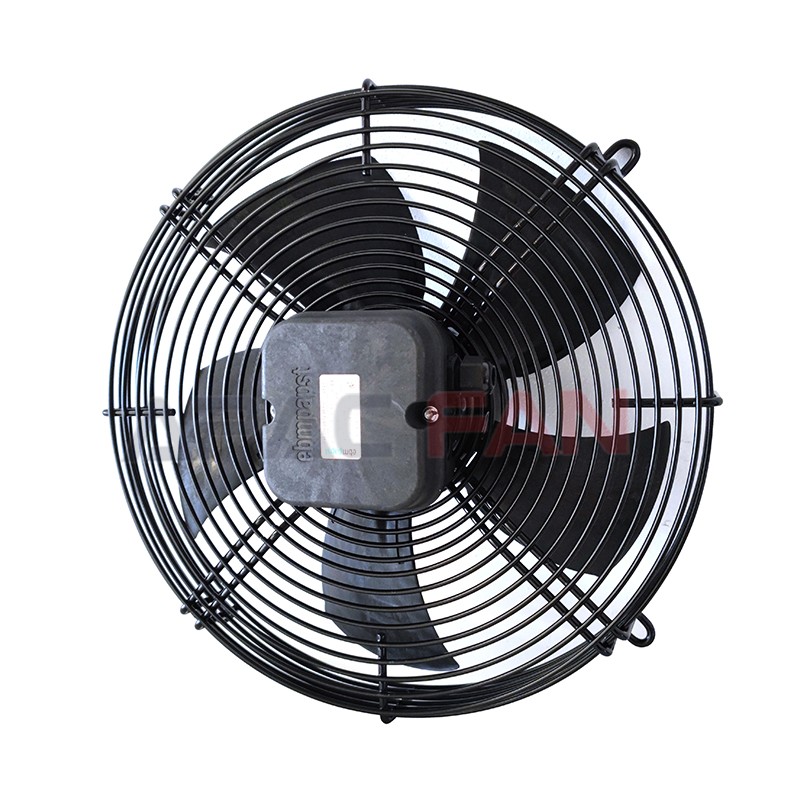

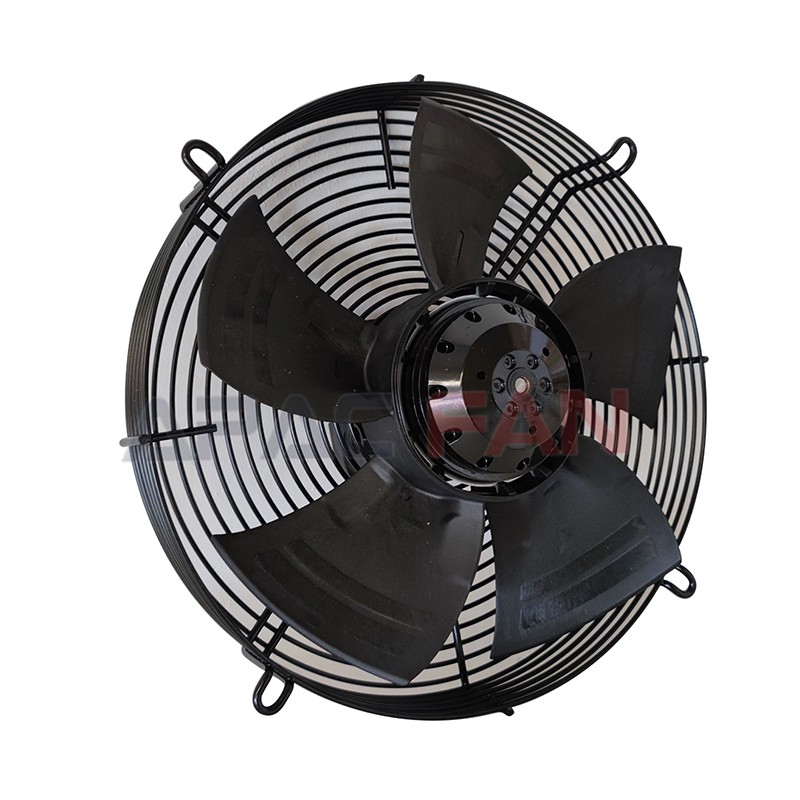

ebm-papst S4E300-AS72-45 Evaporator Axial Fan
Brand：
ebmpapst
Document：
Category：
Axial Fan
Description：
2、High-Efficiency Impeller for Stable Performance
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
3、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Optimized impeller geometry minimizes energy loss and significantly improves overall efficiency with stable, reliable operation.
3、High-Efficiency Motor with Energy-Saving Performance
Equipped with a high-performance external rotor motor, delivering high power density, low heat generation, and excellent energy efficiency.
Nominal data
Brand：
ebmpapst
Part No.：
S4E300-AS72-45
Fan Type：
Axial Fan
Rated Voltage(V)：
230
Size(mm)：
300
Max.Air Flow(m³/h)：
1335
Max.Pressure(Pa)：
60
Input Power(W)：
90
Speed(rpm)：
1500
Noise(db)：
55
Description

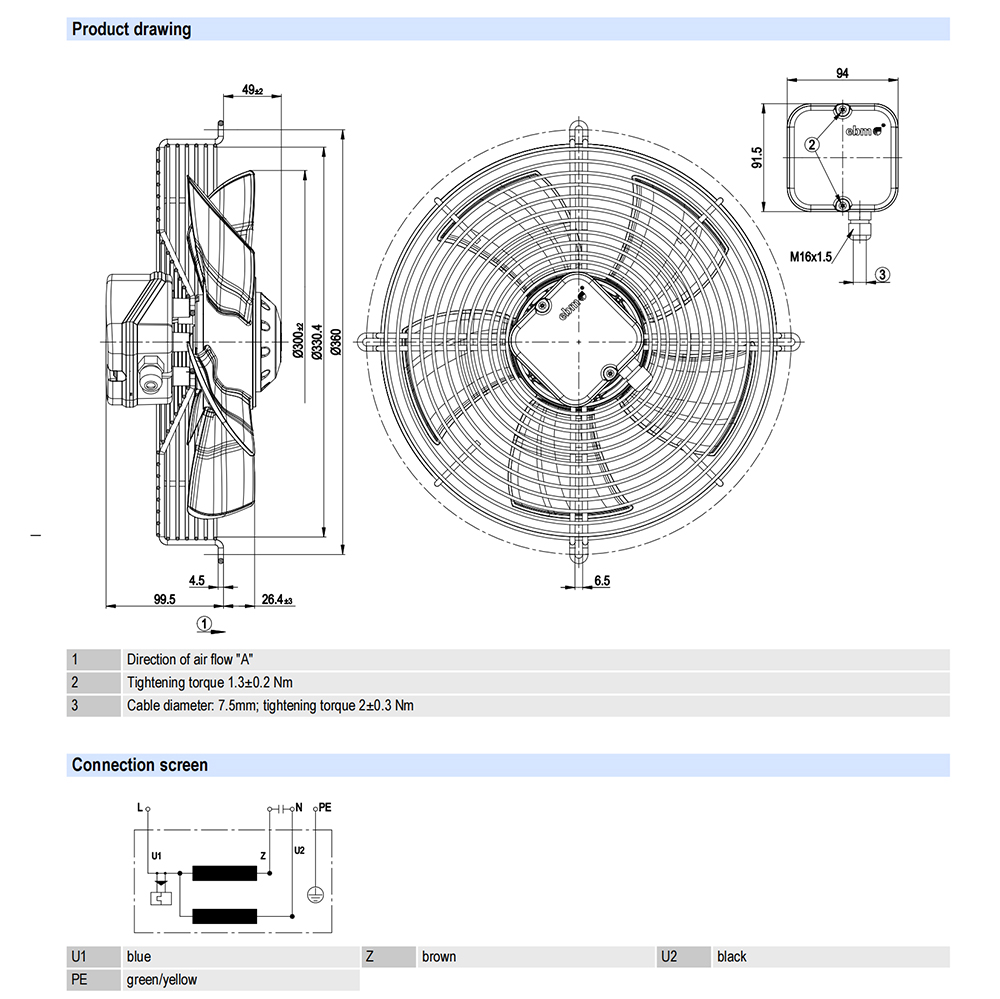

S4E300-AS72-45 ebmpapst Specification drawing：
