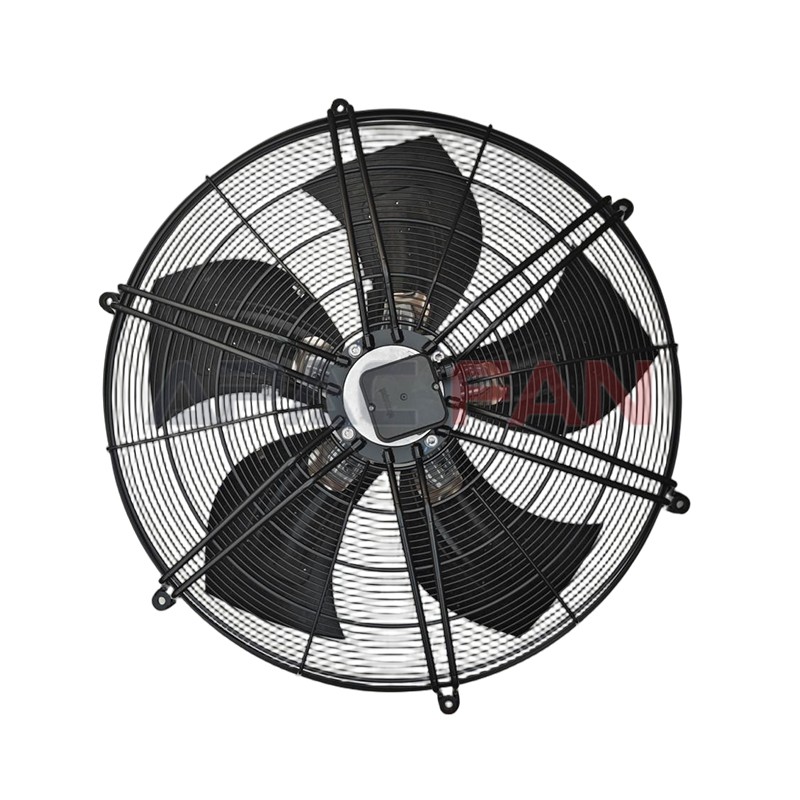

Ebm-papst S6D800-CD01-01 Commercial AC Condensing Equipment Fan | Stable Performance

Brand：

ebmpapst

Document：

S6D800CD0101.PDF

Category：

Axial Fan

Description：

1、Low Noise & Optimized Aerodynamic Design
Advanced aerodynamic airflow design effectively reduces air noise while maintaining high airflow performance for quieter operation.
2、Easy Installation & Low Maintenance
Standardized mounting dimensions ensure easy installation and strong compatibility, while maintenance-free design reduces operating and service costs.

00852-56261528 info@apacfan.com

Nominal data

Brand：

ebmpapst

Part No.：

S6D800-CD01-01

Fan Type：

Axial Fan

Rated Voltage(V)：

400

Size(mm)：

800

Max.Air Flow(m³/h)：

24110

Max.Pressure(Pa)：

160

Input Power(W)：

1940

Speed(rpm)：

925

Noise(db)：

Description

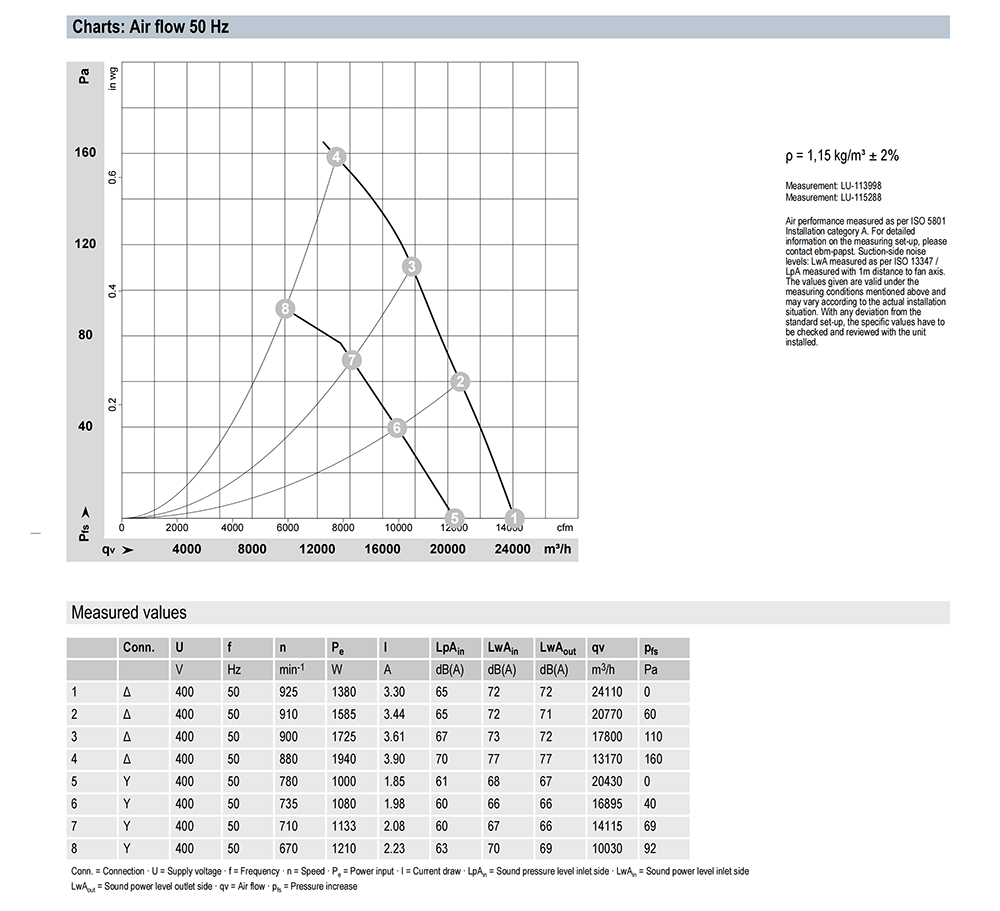

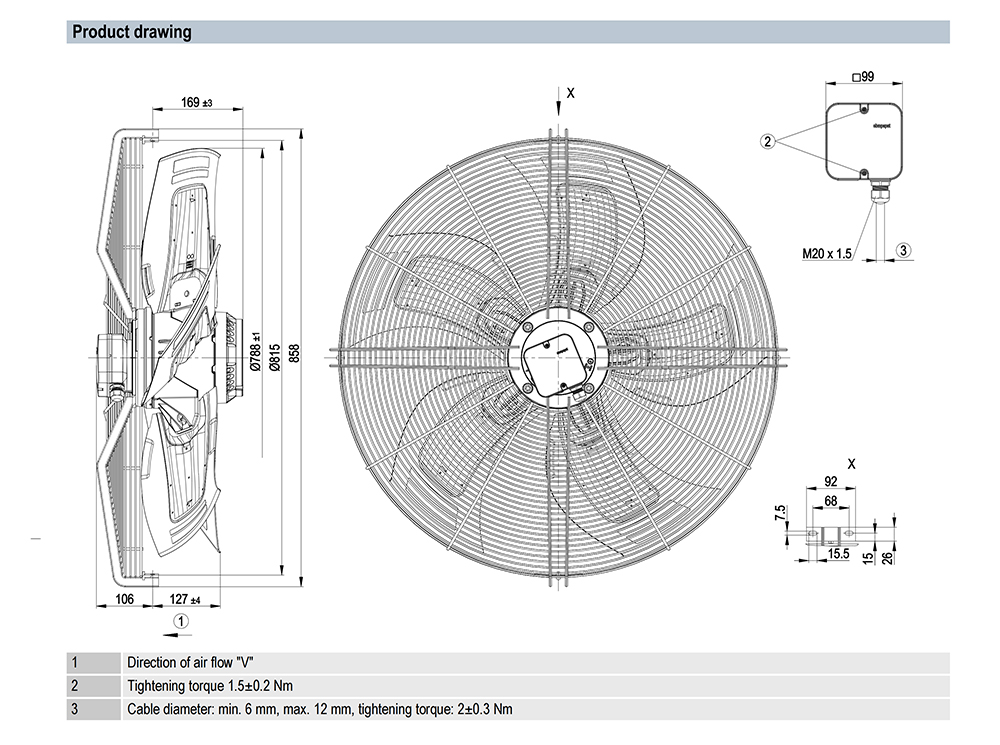

S6D800-CD01-01 Ebm-papst Specification drawing：
